An engine that will not reach its working rpm, or that hunts up and down while the machine stands still, is one of the most commonly misread faults on an excavator. The hydraulic system gets the blame, the pump goes to a workshop, and the real fault is two metres away in the engine speed control circuit. Guangzhou Shenyue Machinery Technology Co., Ltd. handles these enquiries weekly, so here is how the circuit is arranged, how to separate it from a genuine hydraulic fault, and which numbers our records quote.
What the engine speed control actually is
On a modern Kobelco the operator does not pull a cable to set engine speed. The dial in the cab is a potentiometer: it sends a signal to the controller, and the controller drives a motor on the engine governor to hold the speed that was asked for. Three parts therefore have to agree — the dial, the controller and the motor — and a fault in any one of them appears as an engine that will not do what it is told.
Two simple observations separate the electronic side from the hydraulic side. If the engine will not reach full rpm at all, with the machine standing still and no load on the hydraulics, the fault is in the speed control path rather than in the pumps. If the engine does reach full rpm but the machine is slow and weak, the fault is far more likely to be hydraulic or a genuine engine power problem.
Matching the symptom to the circuit
| Symptom | Usually means | Check first |
|---|---|---|
| No response to the dial at all | Broken circuit rather than a broken governor | Dial, wiring and controller supply |
| Engine reaches only part rpm | Dial signal not reaching its full range, or motor travel limited | Dial resistance swing, then motor travel |
| Rpm hunts or surges at idle | Motor or its linkage, not the fuel system | Motor linkage free play, then motor |
| Rpm correct, machine weak | Hydraulic or engine power, not speed control | Main pressure and pilot pressure |
| Auto-idle will not drop in | Signal path or controller setting | Speed sensor and controller inputs |
The check order that saves a pump
Work from the cheapest end. First confirm the dial moves through its full range with the controller powered; a dial that has worn through part of its track will let the engine reach half rpm and no more. Second, watch the motor while an assistant moves the dial: it should travel smoothly in both directions, and any sticking, buzzing or dead band points at the motor rather than the controller. Third, check the linkage between motor and governor for free play and for anything that has been adjusted by hand. Fourth, read the speed sensor input, because a missing or intermittent speed signal leaves the controller unable to close the loop and produces surging that looks mechanical. Only after all four have passed is it worth suspecting the fuel system or the pumps.
Numbers our records quote
| Item | Number quoted in our records |
|---|---|

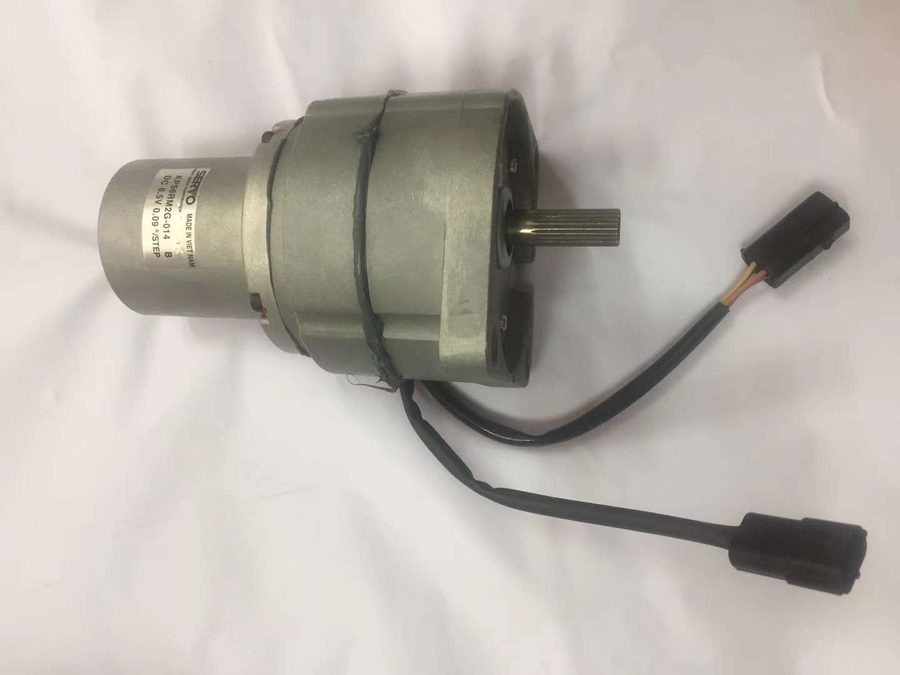

| Step motor, engine speed control | YN20S00002F1 |
| Potentiometer, speed dial | YN17M01644F2 / YN17M01632P2 |
| Potentiometer | YN52S00032P1 |
| Potentiometer | YN52S00075P1 / LQ52S00025P1 |
| ECU speed sensor | VH89411E0050 / VH894111280A |
| ECU speed sensor | VAMC845235 / 9443613106 |
The potentiometer and step motor numbers are not interchangeable across machines, and the YN prefix alone will not tell you which one a given cab carries. Read the number off the unit — the dial has to come out of the panel anyway — and quote that, rather than the model badge, when you ask for a price.
Why it so often gets blamed on the hydraulics
The complaint sounds hydraulic: the machine will not work at speed. The proof is in the standing test. A machine that cannot reach rated rpm with the pumps at zero load has a speed control fault, and no amount of pump work will fix it. A machine that reaches rated rpm but loses it the moment a function is used is a different investigation, and the order of checks for that side is set out in our guide to pilot pressure and pilot circuit testing. The electrical side of the same machine — monitors, senders, harnesses — is covered in our SK200-8 electrical faults guide, and the parts themselves sit in the electrical parts range.
Ordering the right one first time
Speed control parts are small, cheap and very easy to order wrongly, because two machines of the same model year can carry different dials. Send the number from the failed unit, its connector photograph and the machine serial; Kobelco's own machine information is published at kobelco.co.jp, and engine-side service information for the J05 and J08 families is published at hino-global.com. Anything still unclear is fastest answered through contact, where the plate photographs do the explaining.
Frequently Asked Questions
My Kobelco will not reach full rpm — is it the hydraulic pump?
Usually not. Stand the machine still with no function moving and try to reach rated rpm. If the engine will not get there at zero hydraulic load, the fault is in the speed control path — dial, wiring, controller or step motor — and pump work will not correct it. Our records quote the step motor as YN20S00002F1.
What causes an excavator engine to hunt or surge at idle?
On this generation the common causes sit in the speed control circuit rather than the fuel system: a step motor with a dead band, free play in the linkage between motor and governor, or an intermittent speed signal that leaves the controller unable to close the loop. Check that circuit before ordering injection parts.
Which potentiometer does my machine use?
It depends on the machine and the cab, not on the model badge alone. Our records quote dial potentiometers as YN17M01644F2 / YN17M01632P2, YN52S00032P1 and YN52S00075P1 / LQ52S00025P1. Read the number off the unit you have removed and quote that, with a photograph of the connector.
Can Shenyue supply speed control parts quickly?
Yes. Guangzhou Shenyue Machinery Technology Co., Ltd. keeps fast-moving electrical lines in Guangzhou, with 3,000+ part types on the shelf and 100,000+ part numbers available to order through original supply channels. Every line is declared genuine, OEM or aftermarket on the quotation, and speed sensors such as VH89411E0050 / VH894111280A are quoted from the same list.
