Tunnel, basement and shaft work is the most punishing duty a standard Kobelco is asked to do, and it is punishing in ways an operator does not see until the parts bill arrives. The machine is confined, the swing is restricted, the ground is muck, the ventilation is poor and the attachment is working almost continuously. Guangzhou Shenyue Machinery Technology Co., Ltd. has supplied Kobelco parts for confined-space projects since 2007, and this guide sets out what that duty wears first and how to plan the parts around it.
What changes underground
Four conditions separate tunnel work from an open site. The machine cannot swing freely, so every cycle loads the swing system and the front-end pins differently. The ground is muck — fine, wet and abrasive — which finds every seal and every roller. The air is hot and often dust-laden, which loads the cooling system and the intake. And the machine runs a short, repetitive cycle rather than the varied duty of general digging, so wear concentrates instead of spreading across the whole machine.
| Condition | What wears first | Planning response |
|---|---|---|
| Restricted swing | Swing bearing, swing reduction, front pins | Shorten the swing lubrication interval |
| Muck and water | Track rollers, idlers, sprockets, seals | Inspect undercarriage weekly, not monthly |
| Poor ventilation and heat | Cooling system, hydraulic oil, hoses | Clean coolers, watch oil temperature daily |
| Constant attachment duty | Cylinder seals, pins and bushings, hoses | Hold cylinder and hose spares on site |

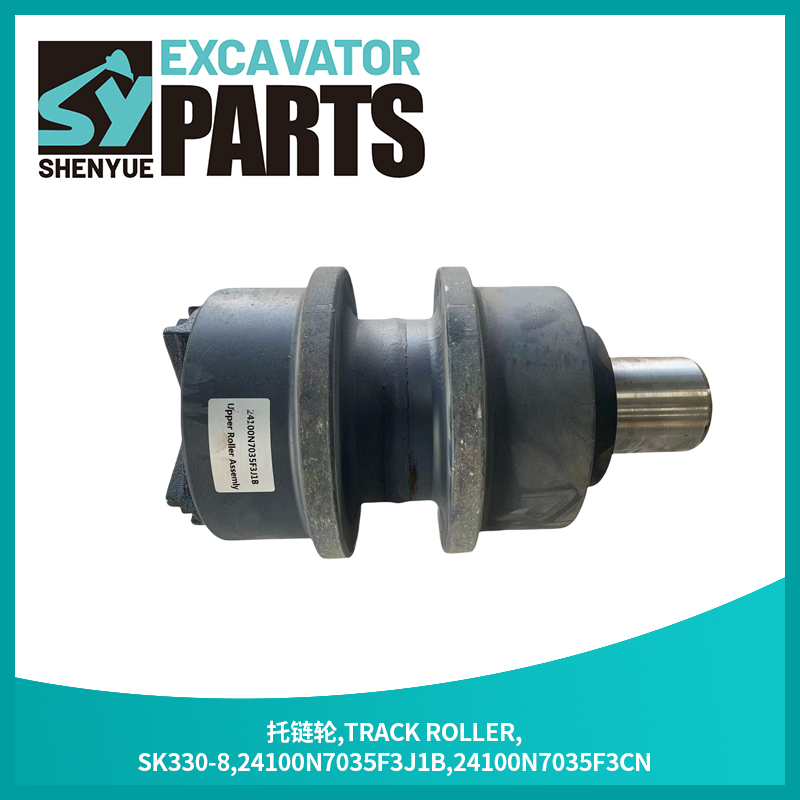

The undercarriage pays for muck
Muck is abrasive and it is wet, and that combination gets inside the track frame and stays there. Rollers, idlers and sprockets wear measurably faster underground than on dry ground, and the parts that fail first are the sealing faces rather than the rolling surfaces, because grit works past a seal long before the metal is worn out. Track tension deserves a check every shift underground, since muck packs the sprocket and changes the effective tension. The undercarriage and cylinders range covers the roller, idler and sprocket groups, and small items such as the arm bushing LC12B02199P1 and the idler shaft VA32F2303402 are the ones that turn a machine into a week off hire when they are missing.
Heat with nowhere to go
A tunnel is a hot, still, dusty place. Radiator and oil-cooler fins load up with dust that cannot blow away, so the cooling system loses capacity exactly when ambient conditions are worst. Hydraulic oil temperature is the number to watch daily, because it is the earliest indication that a cooler needs cleaning or that the return path is restricted. Air-conditioning is not a luxury underground — an operator too hot to concentrate is a safety issue as much as a productivity one — so the cooling and air-conditioning range matters more here than on an open site.
The front end and the attachment
Confined-space work is usually attachment work: a breaker, a crusher or a bucket on a short repetitive cycle. That loads the cylinder seals, the pins and bushings and the hoses far harder than general digging, and the front-end geometry of a short-tail machine such as those covered on the SK135SR page is chosen precisely because it can work in a tight heading. Hold cylinder seal kits, pins and bushings and a set of front-end hoses on site, because underground work does not allow a machine to sit waiting for a delivery.
Choosing the machine and the parts for the job
Underground work rewards a machine chosen for clearance rather than reach, and parts chosen for the duty rather than for the catalogue page. That means a short-tail machine where the heading is tight, undercarriage parts inspected on a weekly rhythm, cooling maintained as a matter of routine, and a modest on-site store of cylinders, pins, bushings and hoses. Send the job details through the contact page with the machine plate, and the list comes back sized to the site rather than to a catalogue.
How we supply
Guangzhou Shenyue Machinery Technology Co., Ltd. has specialised in Kobelco since 2007, with 4 warehouses over 1000 m² in Guangzhou, 3,000+ part types on the shelf and 100,000+ part numbers available to order through original supply channels. Shenyue is an independent supplier and is not an authorized dealer of Kobelco Construction Machinery Co., Ltd.; for Kobelco, Hino, Isuzu, Yanmar, Cummins, Kawasaki, Nabtesco, KYB and KPM we supply genuine parts ordered through original supply channels alongside quality replacement alternatives, at prices close to agent level, and the five brands we hold formal authorization for — Mitsubishi, Garrett, TONGMYUNG, Marusan and NIKURA — are named on every quotation. Published Kobelco machine information is a useful cross-reference when a machine is being matched to a heading.
Frequently Asked Questions
Is a standard Kobelco suitable for tunnel work?
It can be, where the heading allows the machine to swing and the duty is planned around the machine instead of the machine being forced to suit the duty. Confined-space work rewards a short-tail machine and punishes the undercarriage, cooling system and front-end pins, so plan those parts before the machine starts work.
What wears out fastest underground?
Undercarriage sealing faces, because wet abrasive muck works past roller and idler seals before the metal wears out, followed by cylinder seals, pins and bushings, and the cooling system. Check track tension every shift and inspect the undercarriage weekly rather than monthly.
Why does my machine run hot in a tunnel?
Radiator and oil-cooler fins load with dust that cannot blow clear, so cooling capacity falls exactly when ambient conditions are worst. Watch hydraulic oil temperature daily, clean the cooler and check the return path before assuming a hydraulic fault. The cooling and air-conditioning range covers the parts involved.
Which parts should I keep on site for tunnel work?
Cylinder seal kits, pins and bushings, a set of front-end hoses, intake and hydraulic filters, and the undercarriage wear items the site actually consumes. Guangzhou Shenyue Machinery Technology Co., Ltd. builds that list from the heading size, the attachment, the muck condition and the daily hours.
