A component that fails twice is almost never a parts problem. It is an assembly problem: a bore that was not measured, a surface that was not clean enough, a relief valve that was reused because it looked serviceable, a torque figure taken from memory. The parts world sells assemblies, but the work that decides whether a rebuilt pump or motor lasts another 5,000 hours happens on the bench. Guangzhou Shenyue Machinery Technology Co., Ltd. supplies both the assemblies and the small parts inside them, and this guide is what we would put in front of a workshop that wants to rebuild rather than replace.
Measure before and after, or do not rebuild
Hydraulic test gauges and a flow meter are the entry price for component work. Case drain flow, main relief pressure and response time under load are the three readings that tell you whether a unit is worth rebuilding at all — a pump whose case drain flow has climbed past specification is telling you the rotating group is finished, whatever the outside looks like. After assembly, the same readings prove the job. Without them, a rebuild is an opinion.
Cleanliness is the tool nobody buys
Contamination introduced during a repair is the most common cause of a second failure. A dedicated clean bench, caps and plugs for every open port, lint-free wipes, a parts washer with clean solvent and a flushing routine for the machine's circuit are all part of the kit — and cheaper than the pump they protect. Oil that goes into a rebuilt unit should be filtered oil from a sealed container, not oil decanted from a drum in the yard.
Tools by job
The small parts that decide whether the rebuild lasts
| Item | Number held in our stock list | Why it matters |
|---|---|---|
| Travel motor ball guide | C2162420488601 / LC15V00023S042 | Worn guides change the timing of the rotating group |
| Travel motor block | C2162221251701 / LC15V00023S040 | Bore wear is the reason case drain rises |
| Travel motor swash | C2162122059801 | Surface condition sets control response after the rebuild |
| Travel motor relief | C2259321450501 / LC22V00006F1 | A tired relief valve protects nothing and hides pressure faults |
| GM38VB repair parts | 800D2103-00 / YN15V00037R420C and C800D2016-00 / YN15V00037S116 | Published repair-level references for the SK200-8 travel motor |
| Oil seal | XZ0532E / LC32W01033P1C | A seal reused is a leak scheduled for next month |
| Set plate, K3V112 / K5V140 | 2924110-0056 / LC10V00010S153 / 2437U213S153 | Valve plate condition decides pump efficiency |
| Pilot inline filter | YN50V00020F1 | The cheapest protection against contamination reaching the pump |
Every item in that table is small, inexpensive relative to the assembly, and normally replaced while the unit is open. Skipping one is the most common way a rebuild returns inside a season.
How we supply

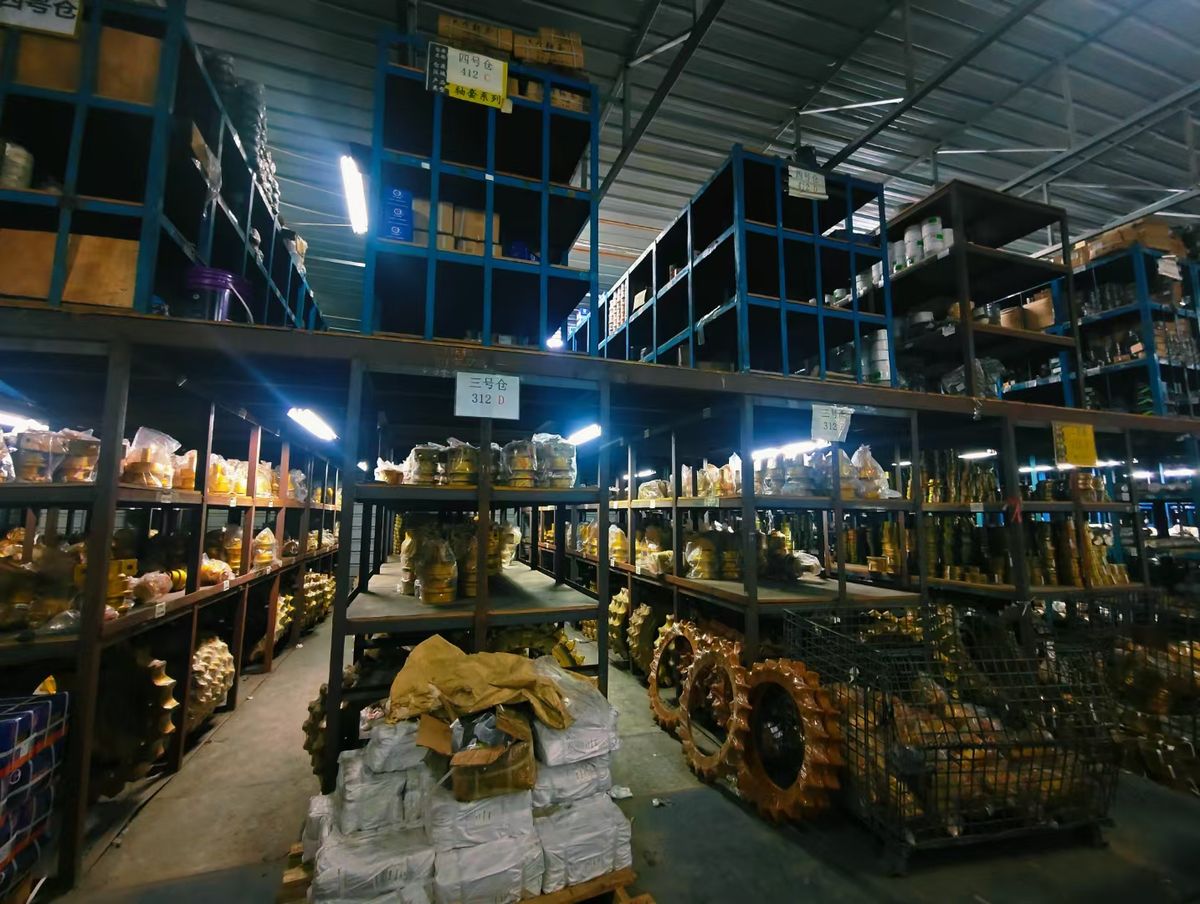

Guangzhou Shenyue Machinery Technology Co., Ltd. has specialised in Kobelco parts since 2007, with 4 warehouses over 1000 m² in Guangzhou, 3,000+ part types on the shelf and 100,000+ part numbers available to order. Shenyue is an independent supplier and is not an authorized dealer of Kobelco Construction Machinery Co., Ltd.; for Kobelco, Hino, Isuzu, Yanmar, Cummins, Kawasaki, Nabtesco, KYB and KPM we supply genuine parts ordered through original supply channels alongside quality replacement alternatives, and the five brands we hold formal authorization for — Mitsubishi, Garrett, TONGMYUNG, Marusan and NIKURA — are named on every quotation. Browse hydraulic components and contact us with the component plate photographed; teams running mixed-brand fleets can also draw on the export range at corbayparts.com. Seal specification background from NOK is a useful reference when a workshop is choosing between seal grades.
Frequently Asked Questions
Is it cheaper to rebuild a Kobelco travel motor or replace it?
Rebuild usually wins where the bores, the block and the swash are still within specification, and where the workshop can measure them. Our list carries the repair-level parts — ball guide C2162420488601 / LC15V00023S042, block C2162221251701 / LC15V00023S040 and the GM38VB repair references 800D2103-00 / YN15V00037R420C and C800D2016-00 / YN15V00037S116. Send the plate to Guangzhou Shenyue Machinery Technology Co., Ltd. and both routes are priced.
Why did my rebuilt hydraulic pump fail again within a season?
Almost always contamination or an unreplaced control part. If the circuit was not flushed, debris from the original failure goes straight back through the new unit; if the regulator or relief valve was reused because it looked serviceable, pressure behaviour is wrong from the first hour. Both are assembly failures rather than parts failures.
What test equipment does a workshop actually need?
Calibrated hydraulic gauges and a flow meter are the minimum, plus a means of measuring case drain flow and a pressure gauge that stays on the machine during a working cycle. These readings decide whether a unit is rebuildable and prove afterwards that it is. Everything else in the workshop is secondary.
Can I get the seal kit and the small parts together?
Yes, and it is the recommended way to order. Quote from the component plate and ask for the rebuild group — seals, wear parts and small controls in one quotation — so the unit is not left open waiting for an item that was overlooked. The grade of every line is declared before the order is placed.
