Kobelco SK200-8 Conditioner Assembly,Air — Exploded View & Part Numbers

Kobelco SK200-8 · Conditioner Assembly,Air · 58 part numbers

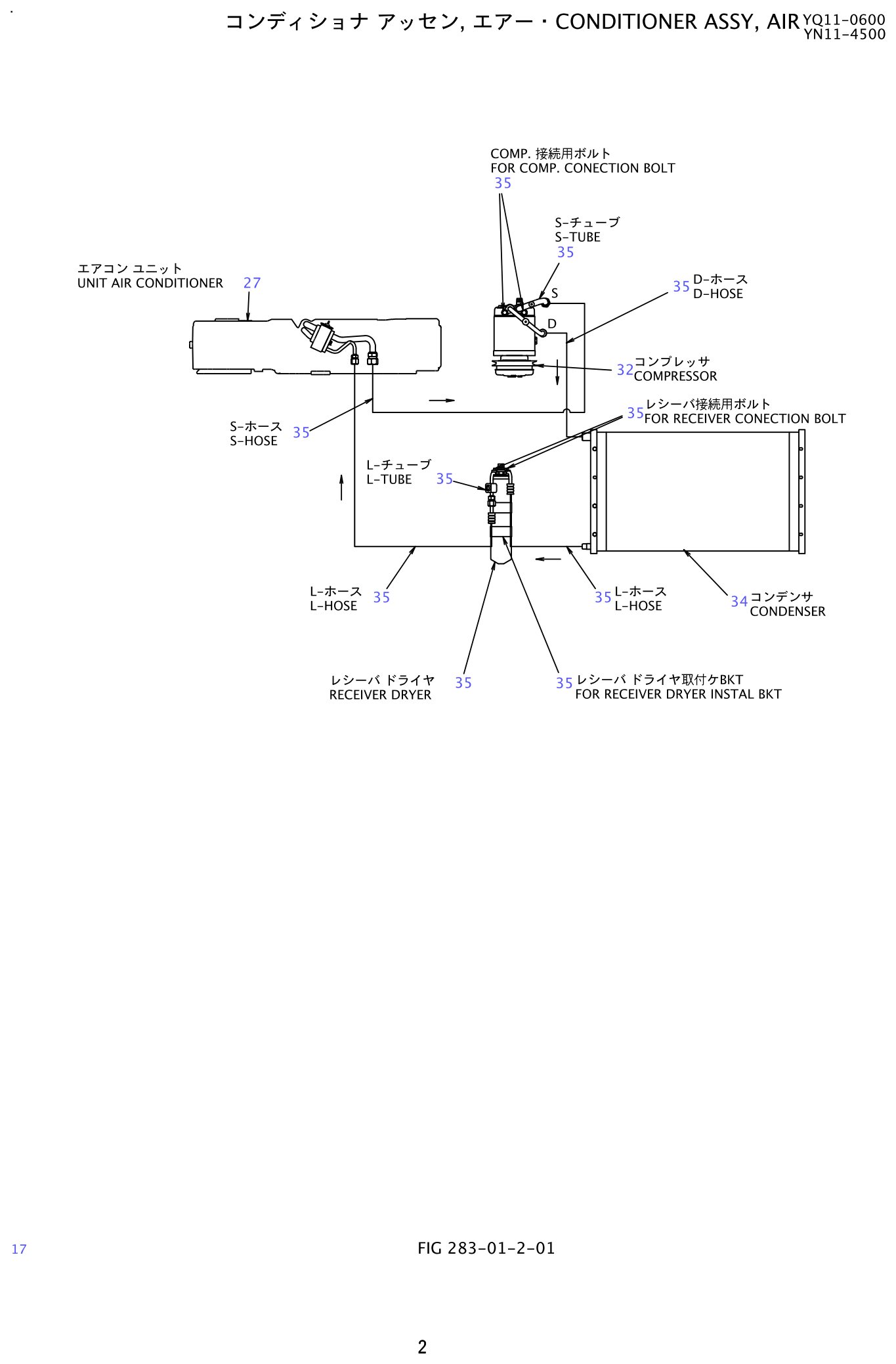

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Conditioner Assembly,Air

This page lists all 58 part numbers in the Kobelco SK200-8 Conditioner Assembly,Air. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 58 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 58 part numbers spread across 19 number series (YN20M, ZM73C, ZS18C being the biggest) In practice that means repeated items such as air, bracket, clip and 20 hardware positions.

If you are quoting from this group, start with: PY01P01043D4 (clip, ×16 per assembly); ZM73C08020 (sems-bolt, ×9 per assembly); ZW16P08000 (washer, ×6 per assembly). The full list follows below.

Refrigerant-side seals and O-rings in this group are small, cheap and worth ordering alongside any major component, since opening the system means replacing them anyway.

A/C work needs small items as much as major ones — O-rings, seals and clamps are all listed individually, which is what makes a proper seal replacement possible without improvisation.
