Kobelco SK200-8 Counterweight Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Counterweight Installation · 14 part numbers

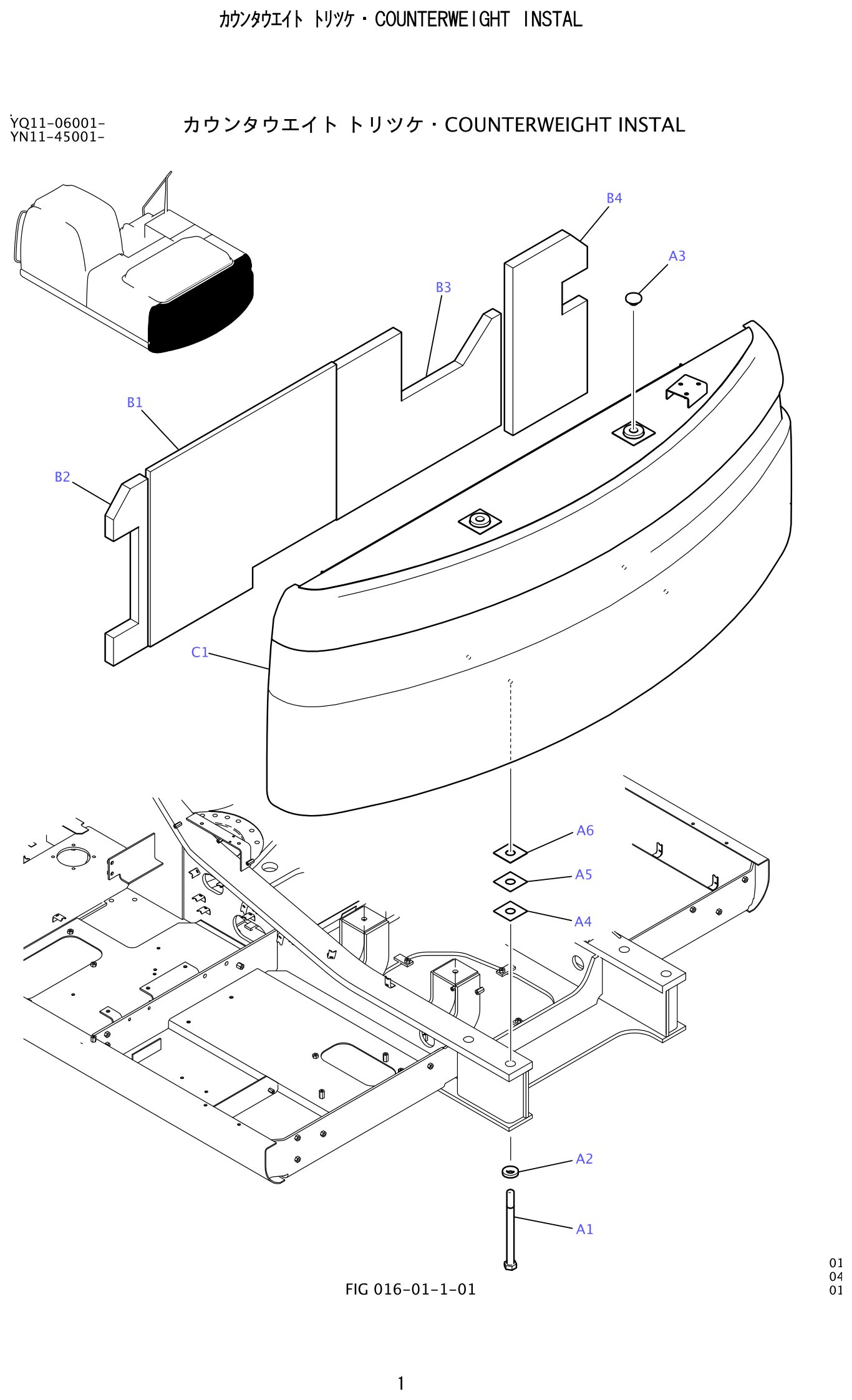

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Counterweight Installation

The Kobelco SK200-8 Counterweight Installation breaks down into 14 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 14 entries group into 4 distinct number series, led by YN60C, LQ60C. The list is weighted toward repeated items such as counterweight, insulation, shim and 3 hardware positions.

The high-quantity positions are: YN60C01300P1 (capscrew, ×4 per assembly); HY26Y28060G3 (washer, ×4 per assembly); YN60C01472P1 (shim (3.2), ×4 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several Kobelco SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.

Structural groups rarely fail as castings; what wears is everything pinned, bolted and clamped to them. That is what makes this group the practical one to work from — pins, bushings, retaining hardware and the mounting points that take the working load every cycle of the machine.
