Kobelco SK200-8 Counterweight Installation (Gain) — Exploded View & Part Numbers

Kobelco SK200-8 · Counterweight Installation (Gain) · 14 part numbers

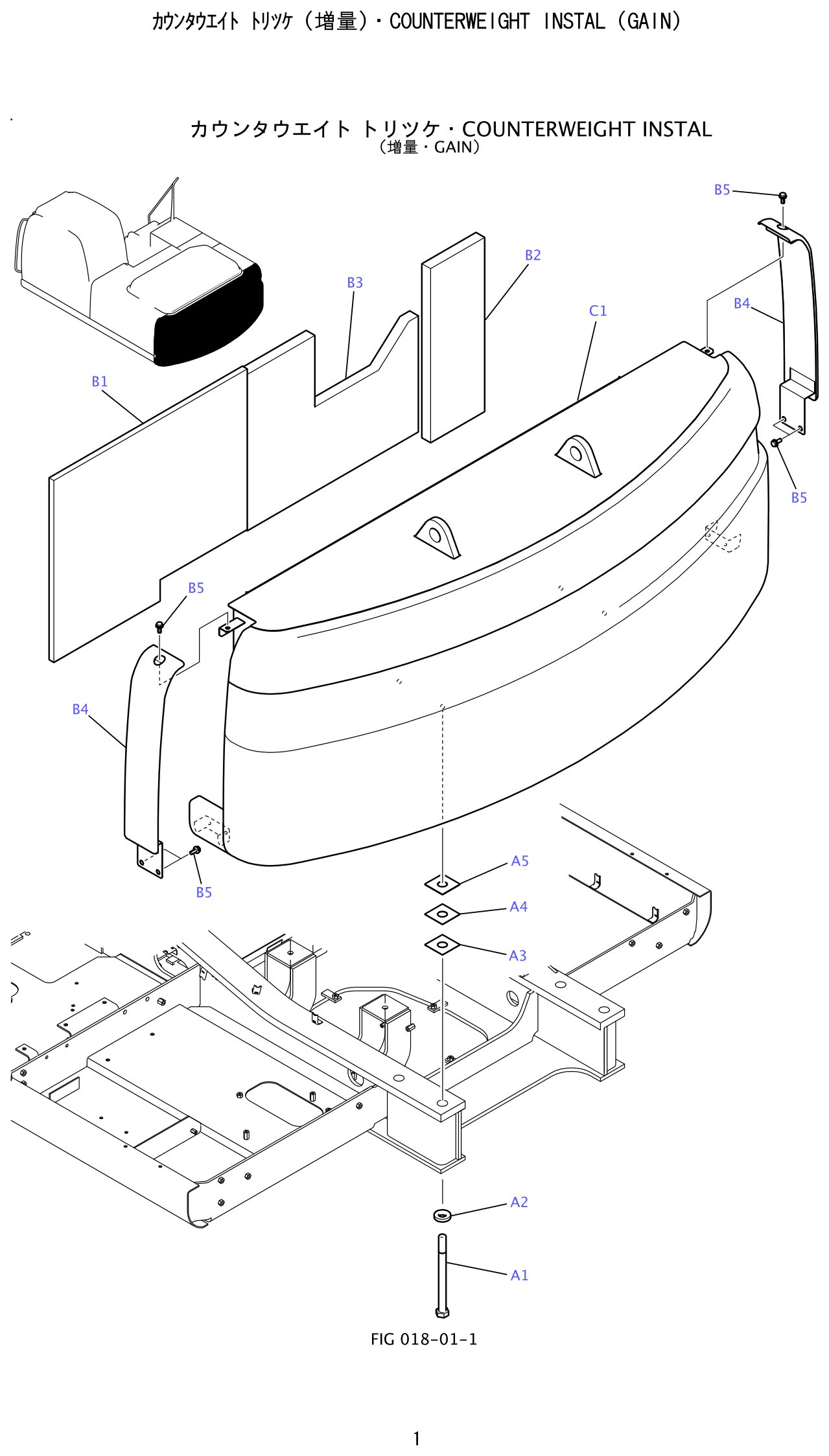

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Counterweight Installation (Gain)

14 separately orderable part numbers make up the Counterweight Installation (Gain) on the Kobelco SK200-8. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 14 part numbers spread across 5 number series (YN60C, HY26Y, LQ60C being the biggest) The list is weighted toward repeated items such as counterweight, shim, insulation and 3 hardware positions.

Where to start in this table: ZM73C12030 (sems-bolt, ×6 per assembly); YN60C01300P1 (capscrew, ×4 per assembly); HY26Y28060G3 (washer, ×4 per assembly). The full list follows below.

Structural groups rarely fail as castings; what wears is everything pinned, bolted and clamped to them. That is what makes this group the practical one to work from — pins, bushings, retaining hardware and the mounting points that take the working load every cycle of the machine.

Structural repairs are usually planned against measured wear rather than a fixed interval. Pins and bushings are the items to measure first; the retaining hardware in this group is cheap to replace at the same time and is worth adding to the same shipment.
