Kobelco SK200-8 Counterweight Installation (Semi-Gain) — Exploded View & Part Numbers

Kobelco SK200-8 · Counterweight Installation (Semi-Gain) · 13 part numbers

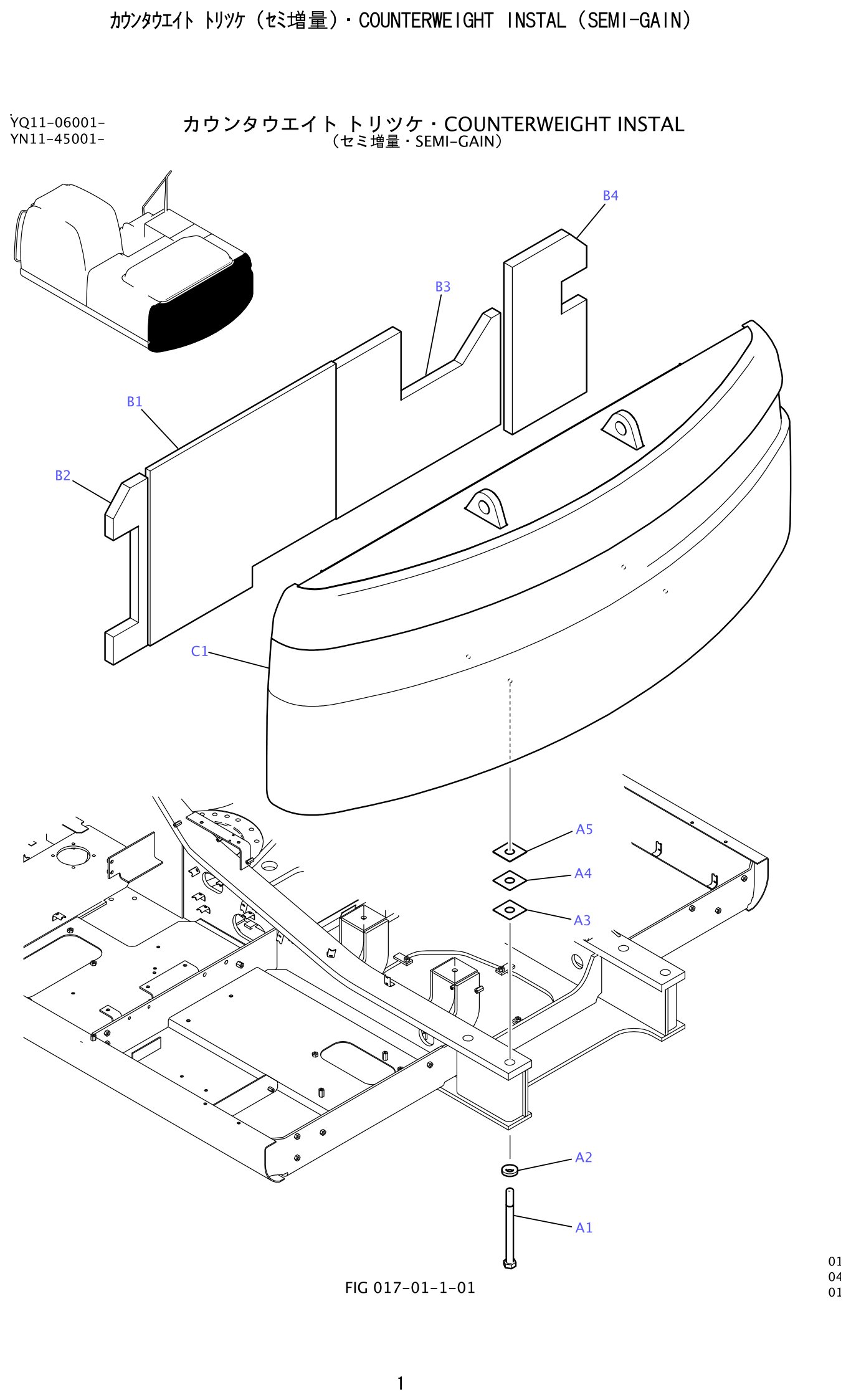

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Counterweight Installation (Semi-Gain)

Below is the complete Kobelco SK200-8 Counterweight Installation (Semi-Gain) — 13 part numbers with the quantity fitted per assembly. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 13 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 13 numbers fall into 3 Kobelco number series — YN60C, LQ60C, HY26Y among the largest. The list is weighted toward repeated items such as counterweight, insulation, shim and 2 hardware positions.

If you are quoting from this group, start with: YN60C01300P1 (capscrew, ×4 per assembly); HY26Y28060G3 (washer, ×4 per assembly); YN60C01472P1 (shim (3.2), ×4 per assembly). The full list follows below.

Undercarriage and structural wear is progressive: play at a joint, a knocking sound on direction change, oval wear on a pin. Because each position carries its own part number, worn positions can be replaced individually instead of ordering the complete group.

Where the attachment configuration differs — long boom, heavy-duty arm, alternative bucket — the pin and bushing numbers change with it. The serial number on the machine is the reliable way to pick the right line from this table.
