Kobelco SK200-8 Control Box Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Control Box Assembly · 28 part numbers

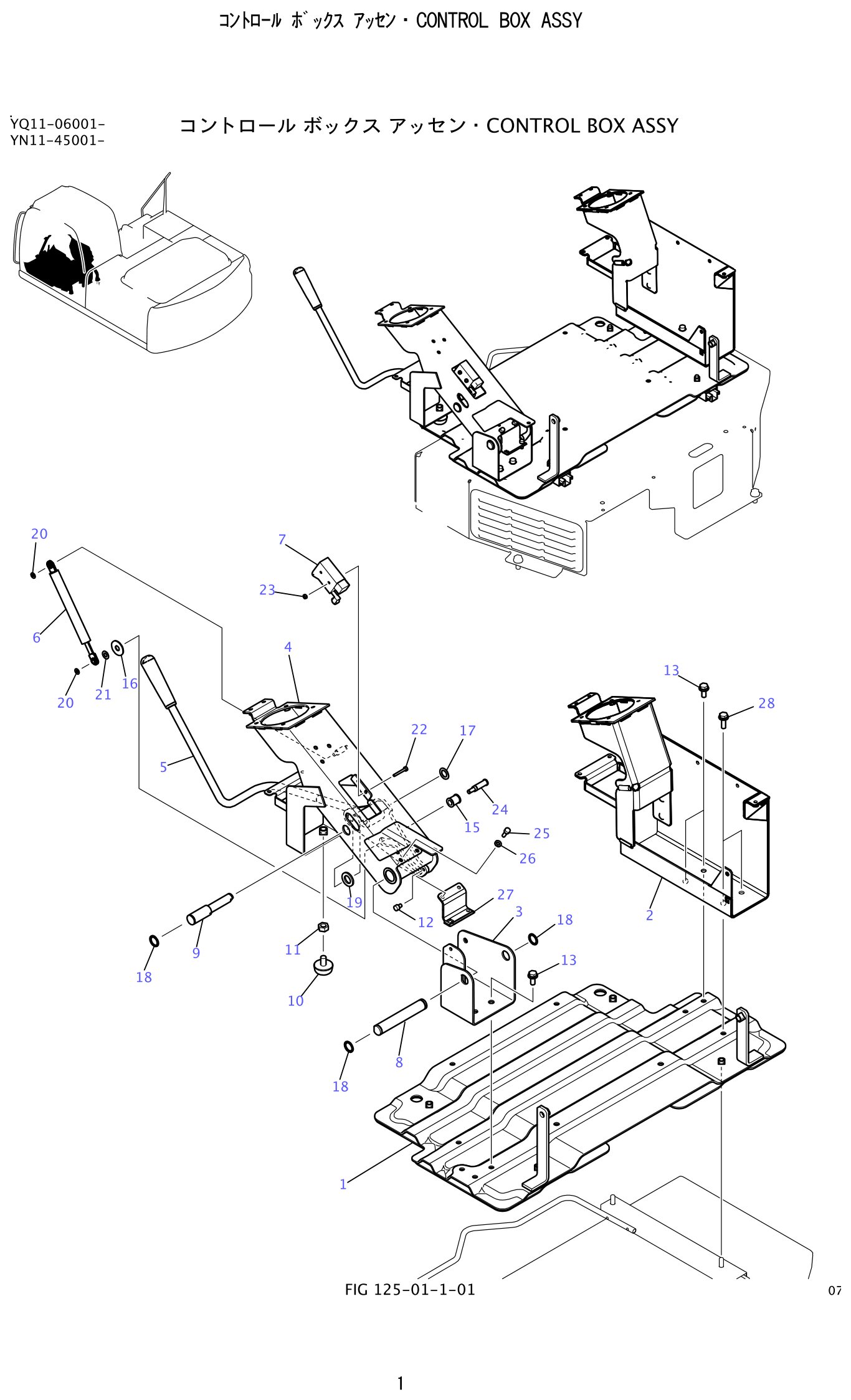

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Control Box Assembly

This page lists all 28 part numbers in the Kobelco SK200-8 Control Box Assembly. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 28 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 28 part numbers spread across 4 number series (YN03M, ZM73C, YN20M being the biggest) In practice that means repeated items such as bolt, ring, retaining and 10 hardware positions.

Three numbers worth noting first: ZM73C08020 (sems-bolt, ×6 per assembly); YN03M01914P1 (ring,retaining, ×3 per assembly); YN03M01916P1 (ring,retaining, ×2 per assembly). The full list follows below.

Every item is quoted with the condition declared: genuine through original supply channels, or a quality OEM alternative. The declaration is on the quotation, not buried in the invoice.

The Control Box Assembly group on the Kobelco SK200-8 contains 28 separately orderable part numbers. The table below lists every one with its quantity per assembly, from the machine's own parts catalogue.
