Kobelco SK200-8 Control Lines,Remote (Without Multi Lever) — Exploded View & Part Numbers

Kobelco SK200-8 · Control Lines,Remote (Without Multi Lever) · 54 part numbers

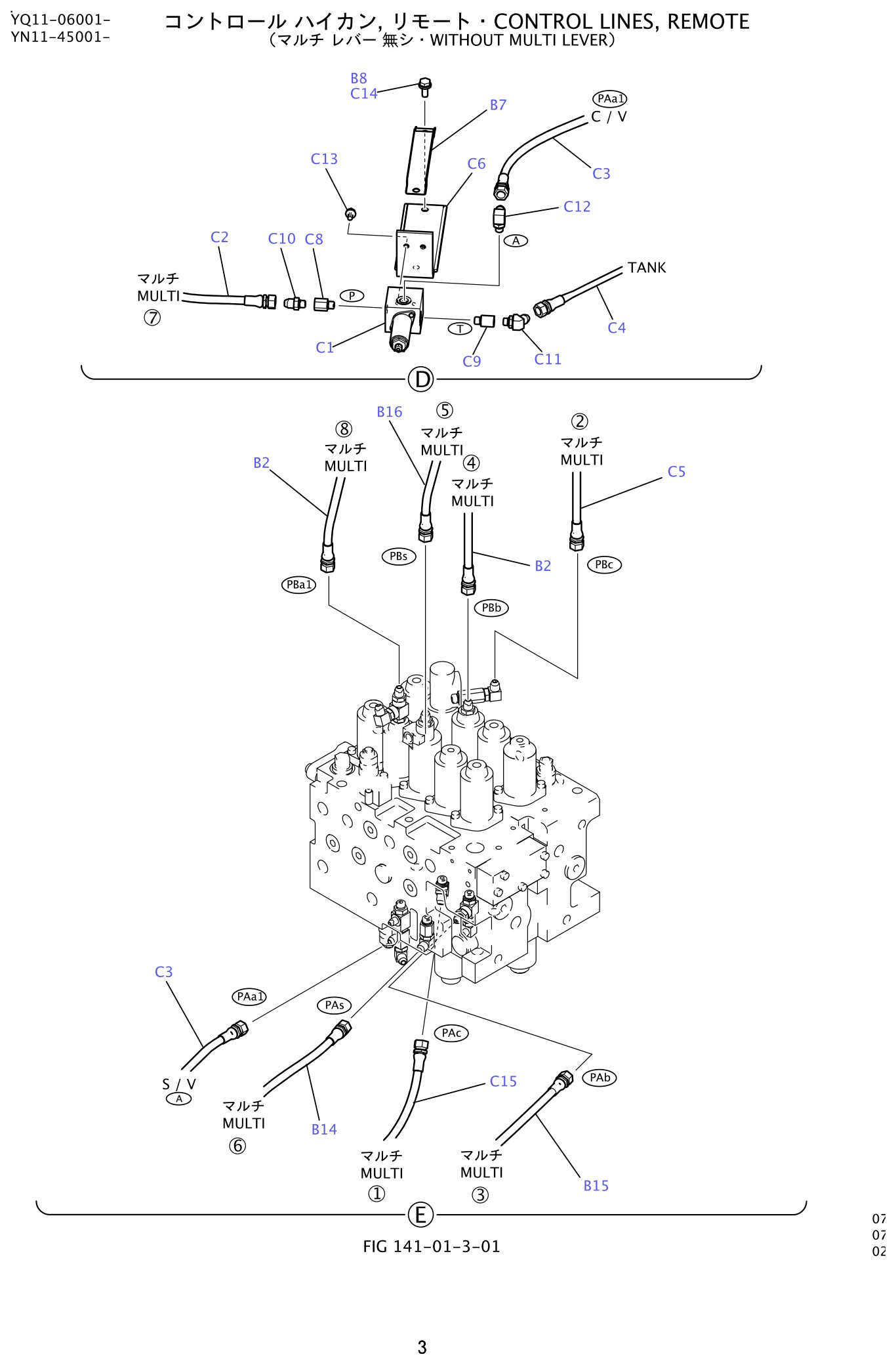

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Control Lines,Remote (Without Multi Lever)

This page lists all 54 part numbers in the Kobelco SK200-8 Control Lines,Remote (Without Multi Lever). The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 54 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 54 part numbers spread across 23 number series (2420R, HX23L, YN64H being the biggest) The list is weighted toward repeated items such as hose, connector, sems and 9 hardware positions.

If you are quoting from this group, start with: ZH22X06000 (connector, ×10 per assembly); ZS28C06025 (capscrew, ×8 per assembly); ZW16P06000 (washer, ×8 per assembly). The full list follows below.

Controls wear with use: levers develop play, linkages tighten up, and pilot circuits drift. Because each component in this group carries its own part number, worn positions can be replaced individually and the machine keeps its original feel.

Pilot and control-line items in this group carry hydraulic pressure, so their seals are service items rather than lifetime parts. Including fresh seals with any linkage order avoids a second stoppage later.
