Kobelco SK200-8 Control Lines,Propel — Exploded View & Part Numbers

Kobelco SK200-8 · Control Lines,Propel · 25 part numbers

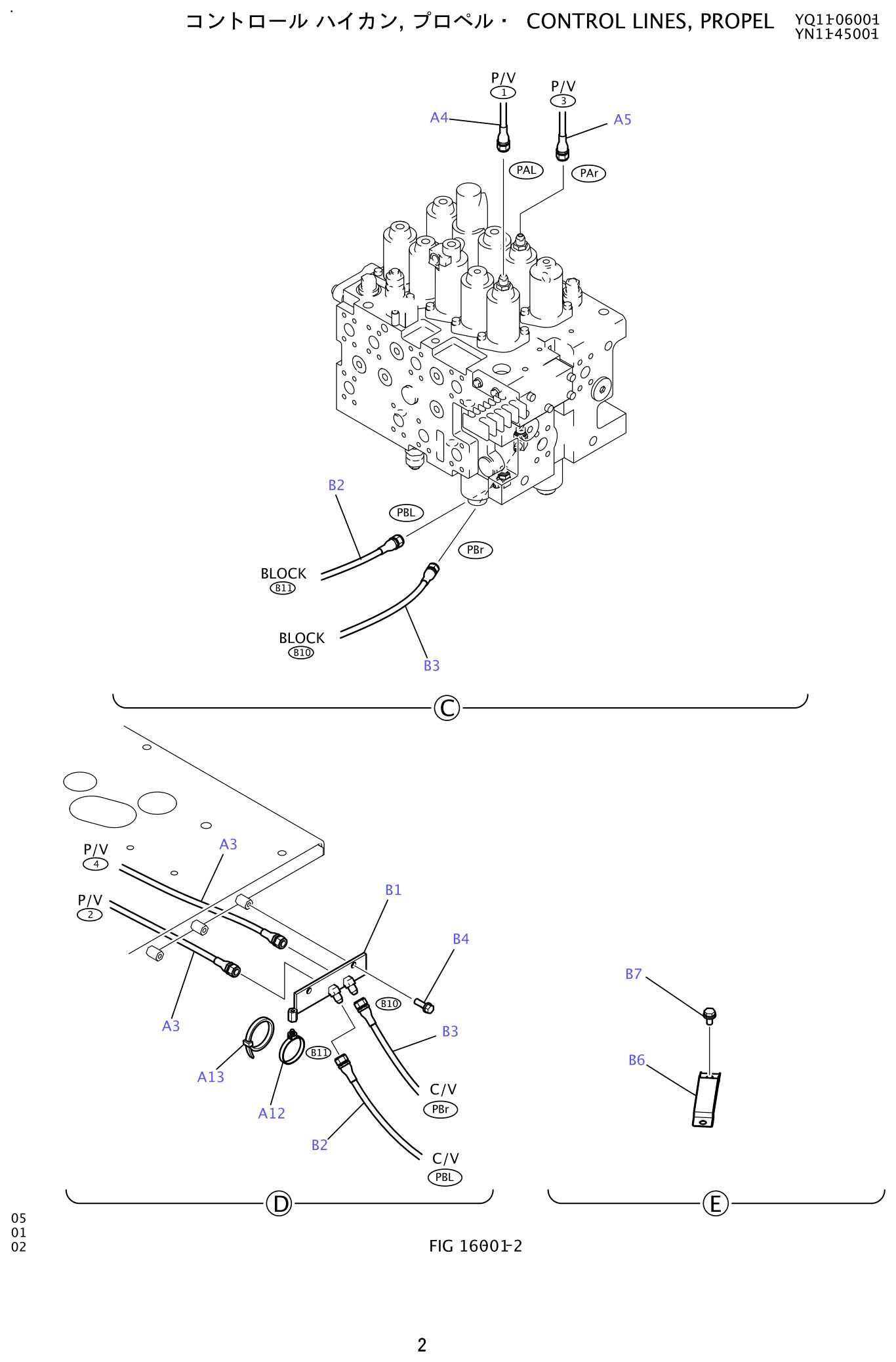

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Control Lines,Propel

Below is the complete Kobelco SK200-8 Control Lines,Propel — 25 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 25 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 25 numbers fall into 14 Kobelco number series — 2420R, YN64H, YN62H among the largest. The list is weighted toward repeated items such as hose, block, control and 5 hardware positions.

Three numbers worth noting first: ZH32X04006 (elbow, ×4 per assembly); YN62H01015P1 (rubber, ×4 per assembly); HM83C10030G1 (sems-bolt, ×4 per assembly). The full list follows below.

Pilot and control-line items in this group carry hydraulic pressure, so their seals are service items rather than lifetime parts. Including fresh seals with any linkage order avoids a second stoppage later.

The callout numbers on the exploded view map to the Ref. column in the table. Where this section has no illustration, the parts table is the authoritative list.
