Kobelco SK200-8 Arm Assembly,2.94M (29Ft 8In) (HD) (Indonesia) — Exploded View & Part Numbers

Kobelco SK200-8 · Arm Assembly,2.94M (29Ft 8In) (HD) (Indonesia) · 10 part numbers

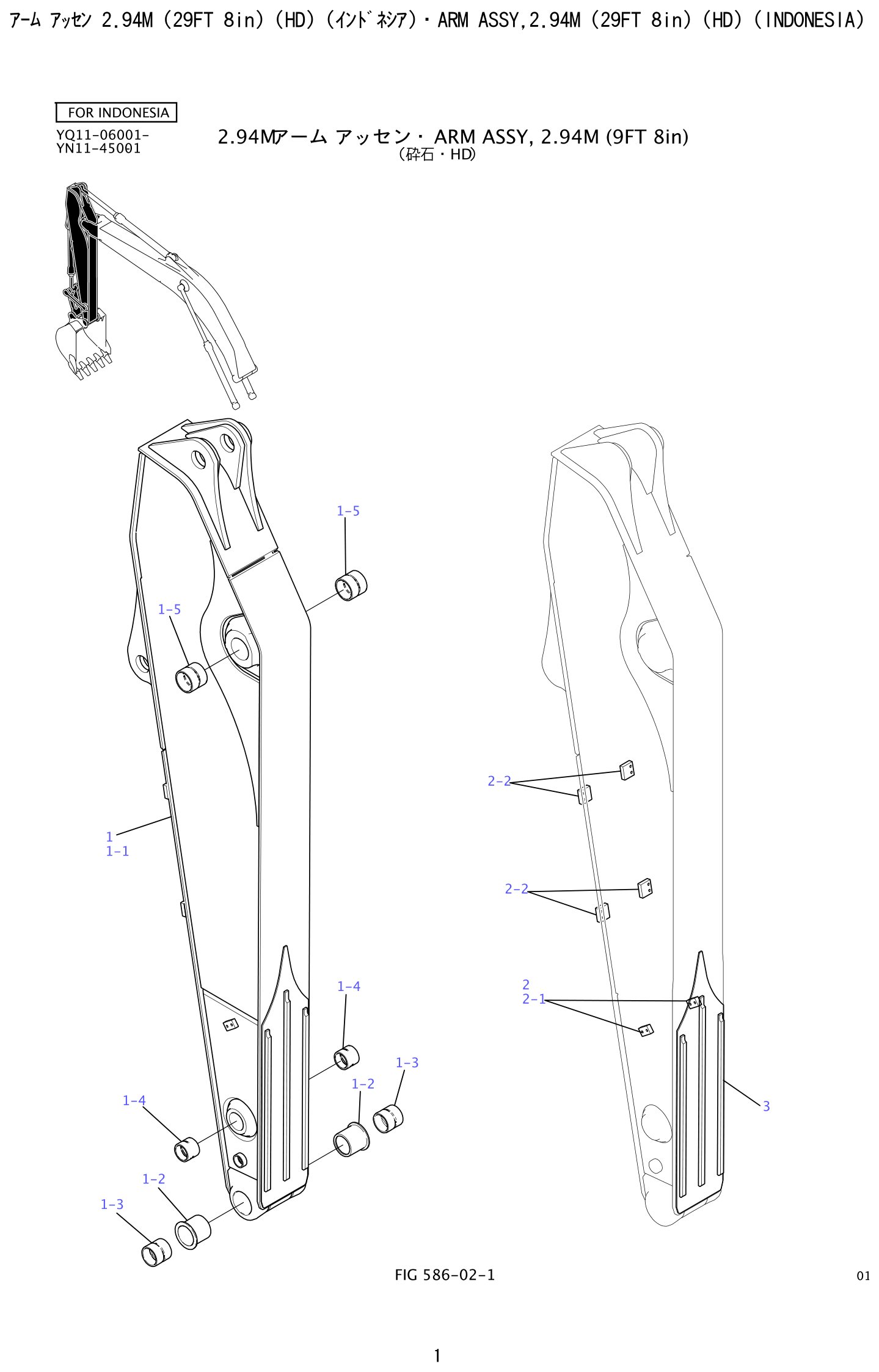

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Arm Assembly,2.94M (29Ft 8In) (HD) (Indonesia)

Below is the complete Kobelco SK200-8 Arm Assembly,2.94M (29Ft 8In) (HD) (Indonesia) — 10 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 10 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 10 numbers fall into 1 Kobelco number series — YN12B among the largest. The list is weighted toward repeated items such as arm, bushing, block.

Three numbers worth noting first: YN12B02026P1 (block,tapped, ×4 per assembly); YN12B02285P1 (bushing, ×2 per assembly); YN12B02405P1 (bushing, ×2 per assembly). The full list follows below.

Undercarriage and structural wear is progressive: play at a joint, a knocking sound on direction change, oval wear on a pin. Because each position carries its own part number, worn positions can be replaced individually instead of ordering the complete group.

Where the attachment configuration differs — long boom, heavy-duty arm, alternative bucket — the pin and bushing numbers change with it. The serial number on the machine is the reliable way to pick the right line from this table.
