Kobelco SK200-8 Arm Rest — Exploded View & Part Numbers

Kobelco SK200-8 · Arm Rest · 13 part numbers

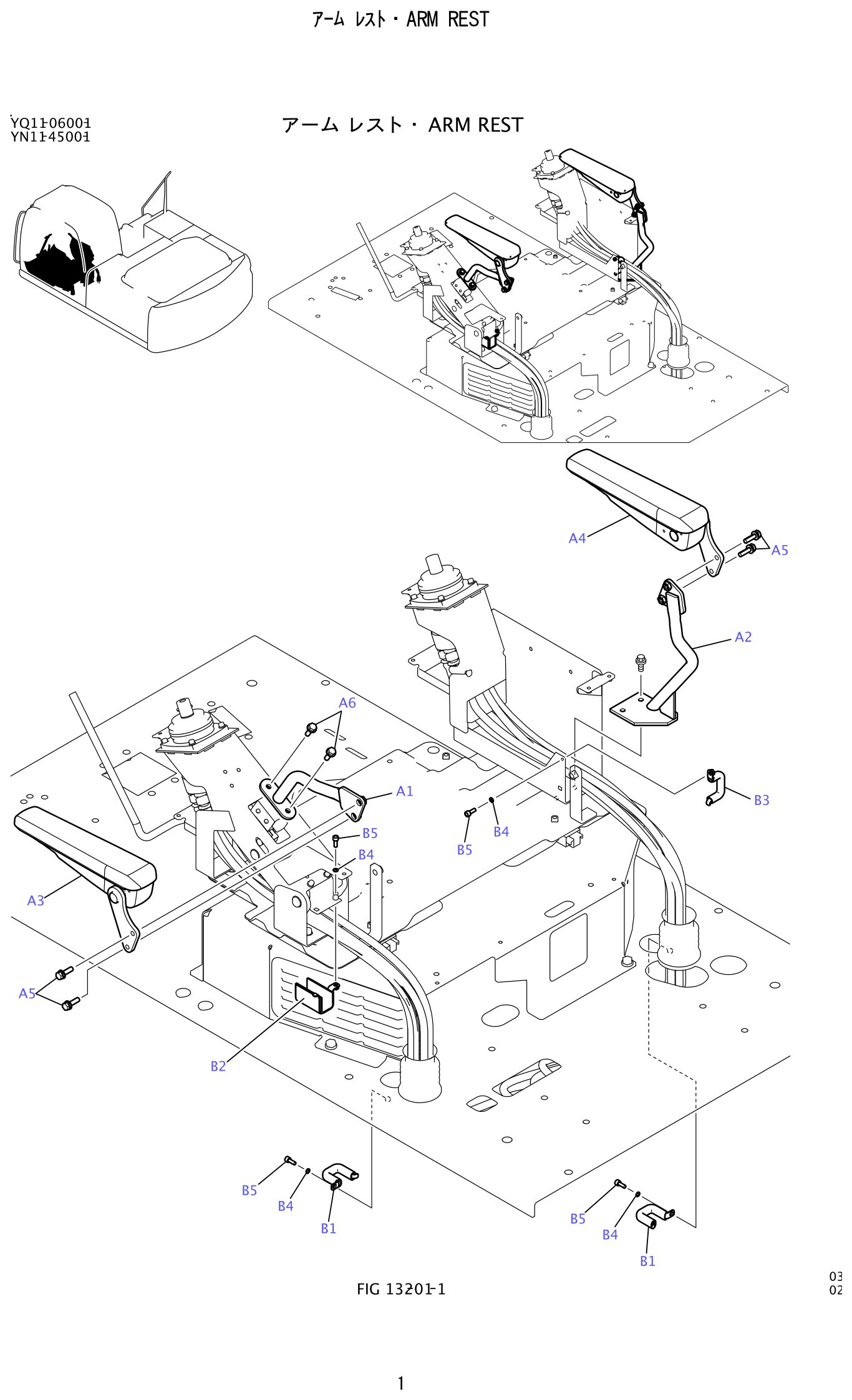

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Arm Rest

13 separately orderable part numbers make up the Arm Rest on the Kobelco SK200-8. Where the drawing shows a callout, the Ref. column in the table carries the same number. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 13 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
