Kobelco SK200-8 Engine Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Engine Installation · 54 part numbers

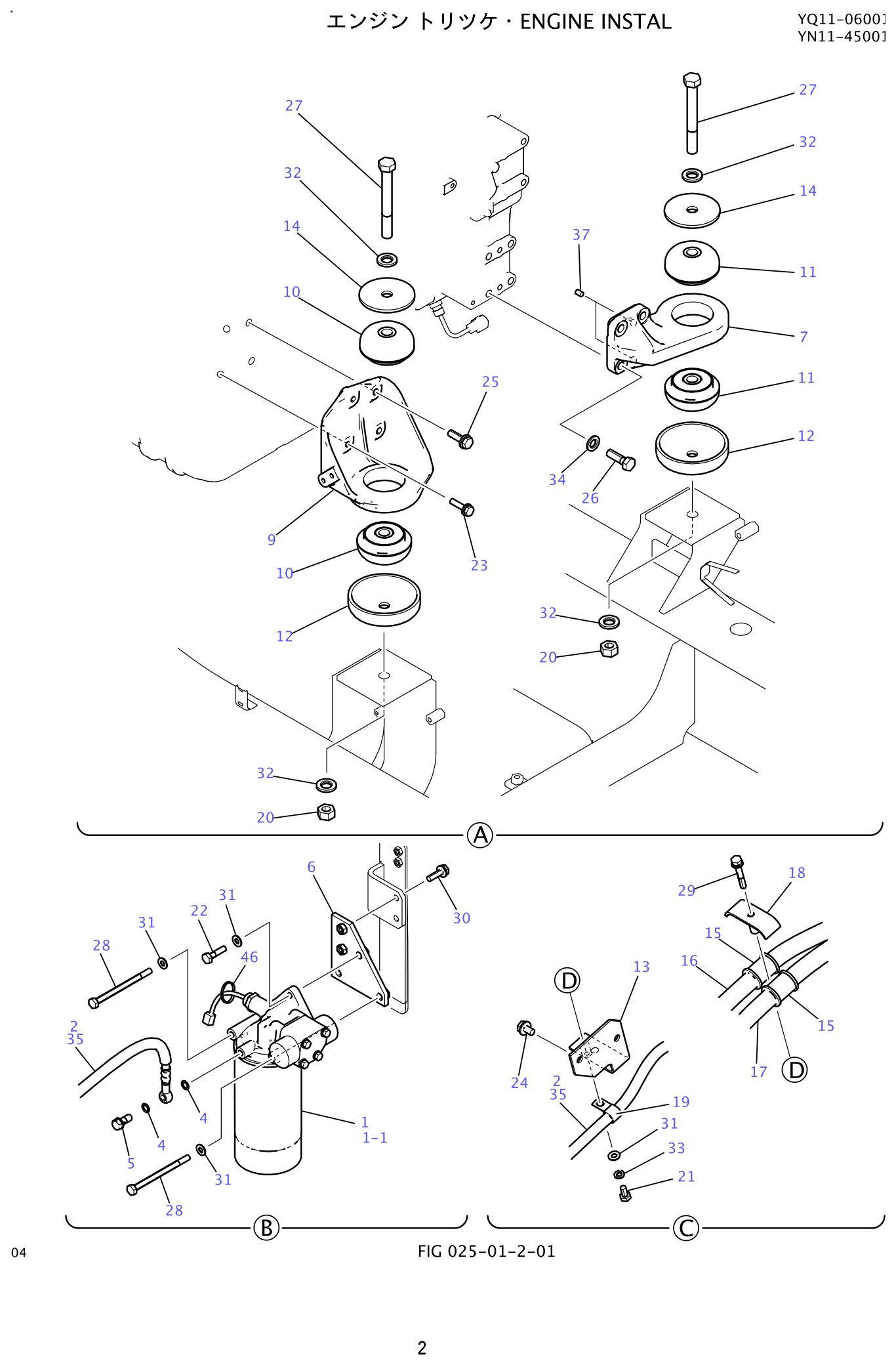

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Engine Installation

The Engine Installation group on the Kobelco SK200-8 contains 54 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 54 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 54 numbers fall into 29 Kobelco number series — YN02P, ZS18C, ZM73C among the largest. Expect repeated items such as bolt, clip, capscrew and 25 hardware positions when you work through it.

The high-quantity positions are: ZS18C14045 (capscrew, ×8 per assembly); ZW16H18000 (washer, ×8 per assembly); ZW16H14000 (washer, ×8 per assembly). The full list follows below.

Engine-side work on the Kobelco SK200-8 is planned either by symptom or by service hours. Both routes end at the same table: the symptom or the service item maps to a callout, the callout maps to a part number, and the quotation follows.

Working from the exploded view keeps ordering precise: find the component on the drawing, note the callout number, and match it to the Ref. column in the table. Where no illustration exists for this section, the parts table below is the authoritative list.
