Kobelco SK200-8 Arm Group,2.94M (29Ft 8In) (HD) — Exploded View & Part Numbers

Kobelco SK200-8 · Arm Group,2.94M (29Ft 8In) (HD) · 48 part numbers

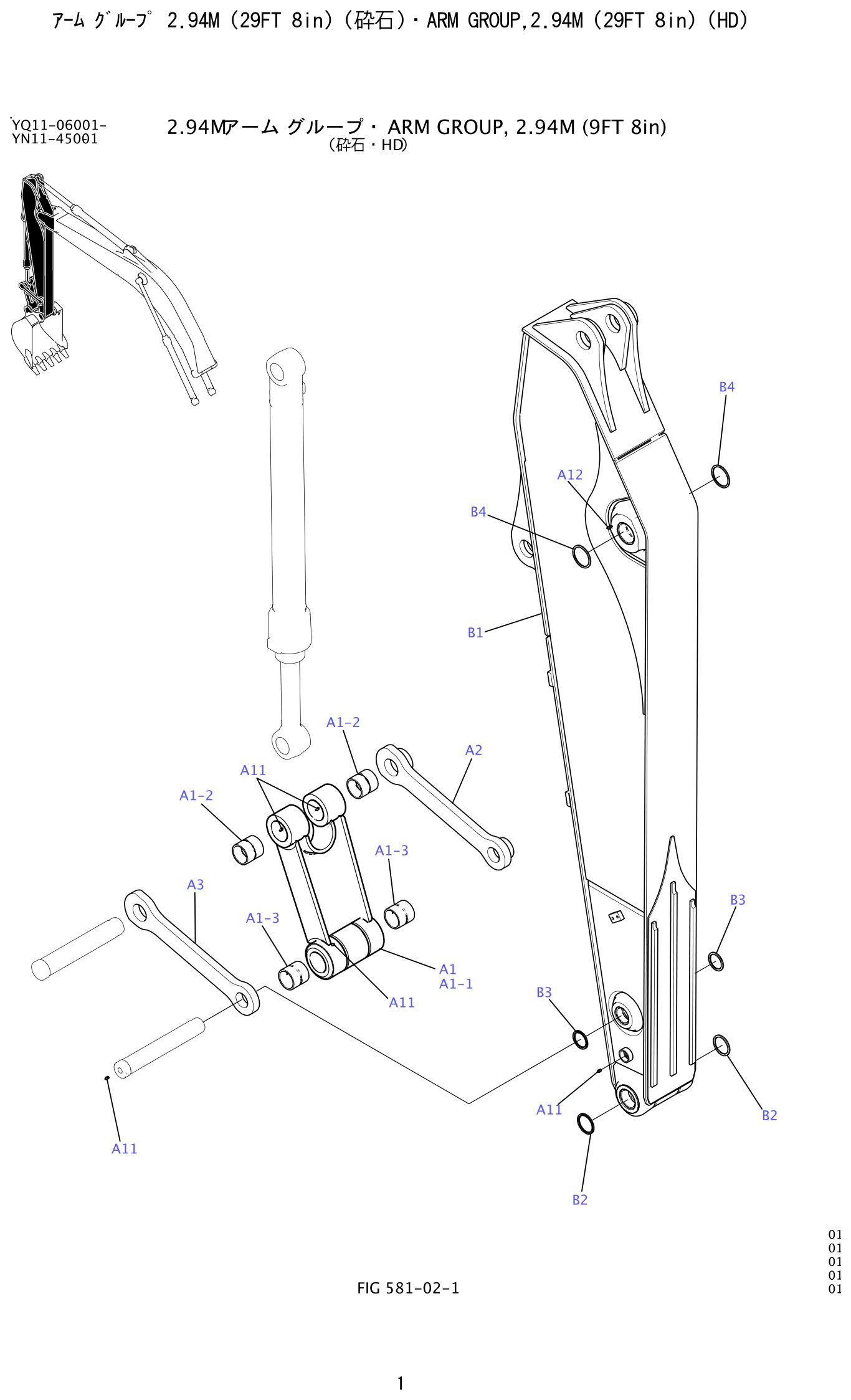

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Arm Group,2.94M (29Ft 8In) (HD)

The Kobelco SK200-8 Arm Group,2.94M (29Ft 8In) (HD) breaks down into 48 individually orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 48 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 48 entries group into 9 distinct number series, led by YN12B, B16T. The list is weighted toward repeated items such as shim, arm, pin and 6 hardware positions.

Where to start in this table: 2445R220D4 (seal,dust, ×6 per assembly); ZG91S02000 (nipple,grease, ×5 per assembly); ZN18C16013 (nut, ×4 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several Kobelco SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.

Structural groups rarely fail as castings; what wears is everything pinned, bolted and clamped to them. That is what makes this group the practical one to work from — pins, bushings, retaining hardware and the mounting points that take the working load every cycle of the machine.
