Kobelco SK200-8 Low Group (For Long Crawler) — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group (For Long Crawler) · 24 part numbers

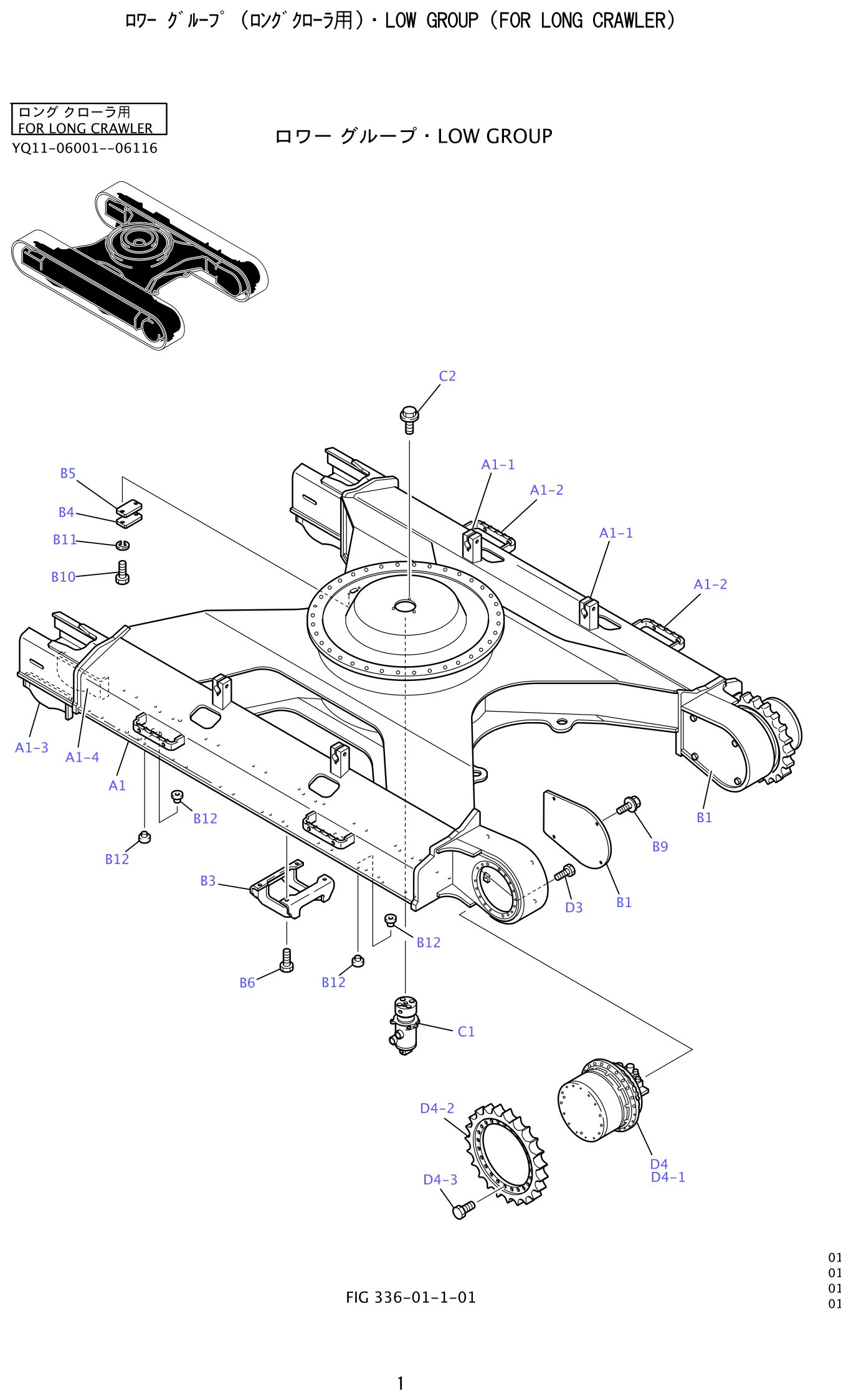

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group (For Long Crawler)

Every part number in the Kobelco SK200-8 Low Group (For Long Crawler) is listed here — 24 of them, with quantities. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 24 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 24 entries group into 17 distinct number series, led by YN07F, YN01F. In practice that means repeated items such as capscrew, low, guide and 6 hardware positions.

If you are quoting from this group, start with: 2420P2963D3 (capscrew, ×52 per assembly); YN01F01040P1 (cap, ×32 per assembly); ZS13C16045 (capscrew, ×26 per assembly). The full list follows below.

The callout numbers on the exploded view map one-to-one to the Ref. column in the parts table. Identify the joint or component on the drawing, take its number from the table, and the quotation you receive will match the drawing exactly.

Rebuilding a joint takes the machine out of service once, so it pays to consolidate: pins, bushings, retaining rings and the joint seals quoted together, arriving as one kit rather than in several parcels.
