Kobelco SK200-8 Bucket Assembly,0.8M3 (1.05Cu Yd) — Exploded View & Part Numbers

Kobelco SK200-8 · Bucket Assembly,0.8M3 (1.05Cu Yd) · 27 part numbers

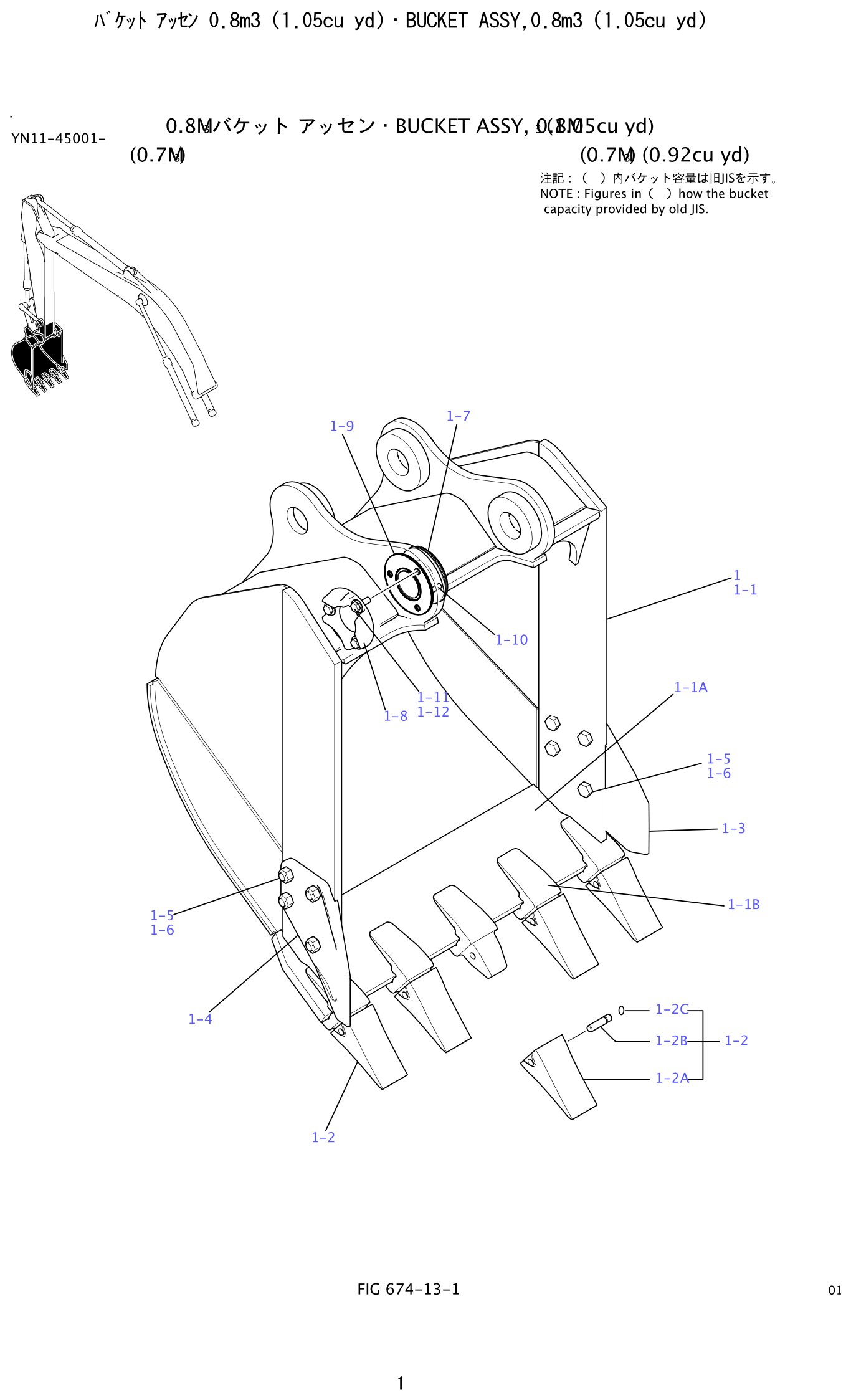

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Bucket Assembly,0.8M3 (1.05Cu Yd)

The Bucket Assembly,0.8M3 (1.05Cu Yd) group on the Kobelco SK200-8 contains 27 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 27 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 27 numbers fall into 7 Kobelco number series — YN61B, YN69B, YB61B among the largest. Expect repeated items such as bucket, bar, plate and 4 hardware positions when you work through it.

Where to start in this table: ZS13C24070 (capscrew, ×8 per assembly); ZN13C24019 (nut, ×8 per assembly); YN61B01168P1 (bar,flat, ×8 per assembly). The full list follows below.

Structural repairs are usually planned against measured wear rather than a fixed interval. Pins and bushings are the items to measure first; the retaining hardware in this group is cheap to replace at the same time and is worth adding to the same shipment.

The callout numbers on the exploded view map one-to-one to the Ref. column in the parts table. Identify the joint or component on the drawing, take its number from the table, and the quotation you receive will match the drawing exactly.
