Kobelco SK200-8 Bucket Assembly,1.0M3 (1.30Cu Yd) — Exploded View & Part Numbers

Kobelco SK200-8 · Bucket Assembly,1.0M3 (1.30Cu Yd) · 27 part numbers

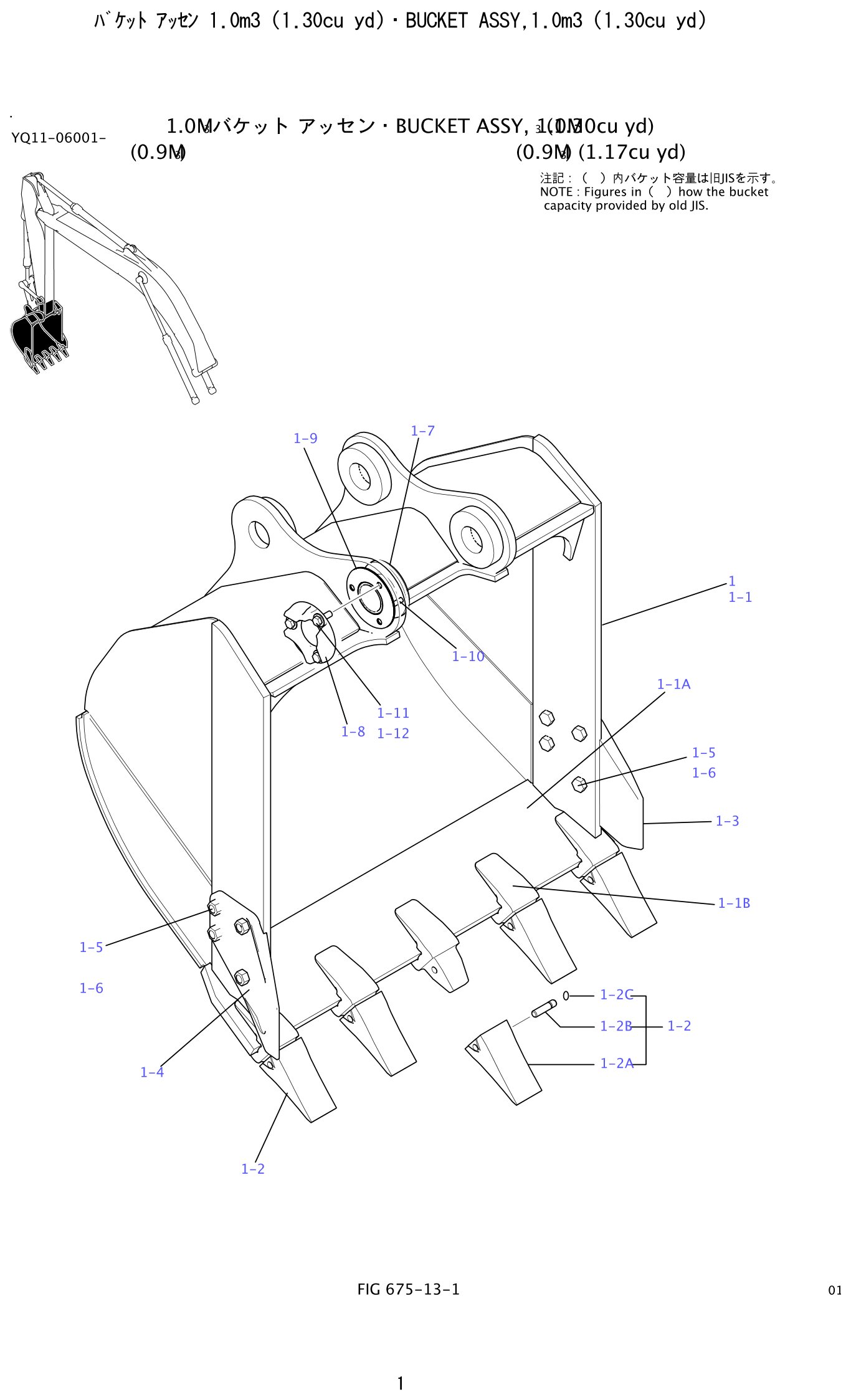

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Bucket Assembly,1.0M3 (1.30Cu Yd)

This page lists all 27 part numbers in the Kobelco SK200-8 Bucket Assembly,1.0M3 (1.30Cu Yd). Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 27 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 27 part numbers spread across 7 number series (YN61B, YN69B, YB61B being the biggest) Expect repeated items such as bucket, bar, plate and 4 hardware positions when you work through it.

Three numbers worth noting first: ZS13C24070 (capscrew, ×8 per assembly); ZN13C24019 (nut, ×8 per assembly); YN61B01168P1 (bar,flat, ×8 per assembly). The full list follows below.

Items in this group are quoted with the condition declared — genuine through original supply channels, or a quality OEM alternative. For heavy sections the freight is quoted separately so you can see the landed cost before committing.

The Bucket Assembly,1.0M3 (1.30Cu Yd) group on the Kobelco SK200-8 contains 27 separately orderable part numbers. The table below lists each one with its quantity per assembly, taken directly from the machine's own parts catalogue.
