Kobelco SK200-8 Elec Assembly,Upp — Exploded View & Part Numbers

Kobelco SK200-8 · Elec Assembly,Upp · 12 part numbers

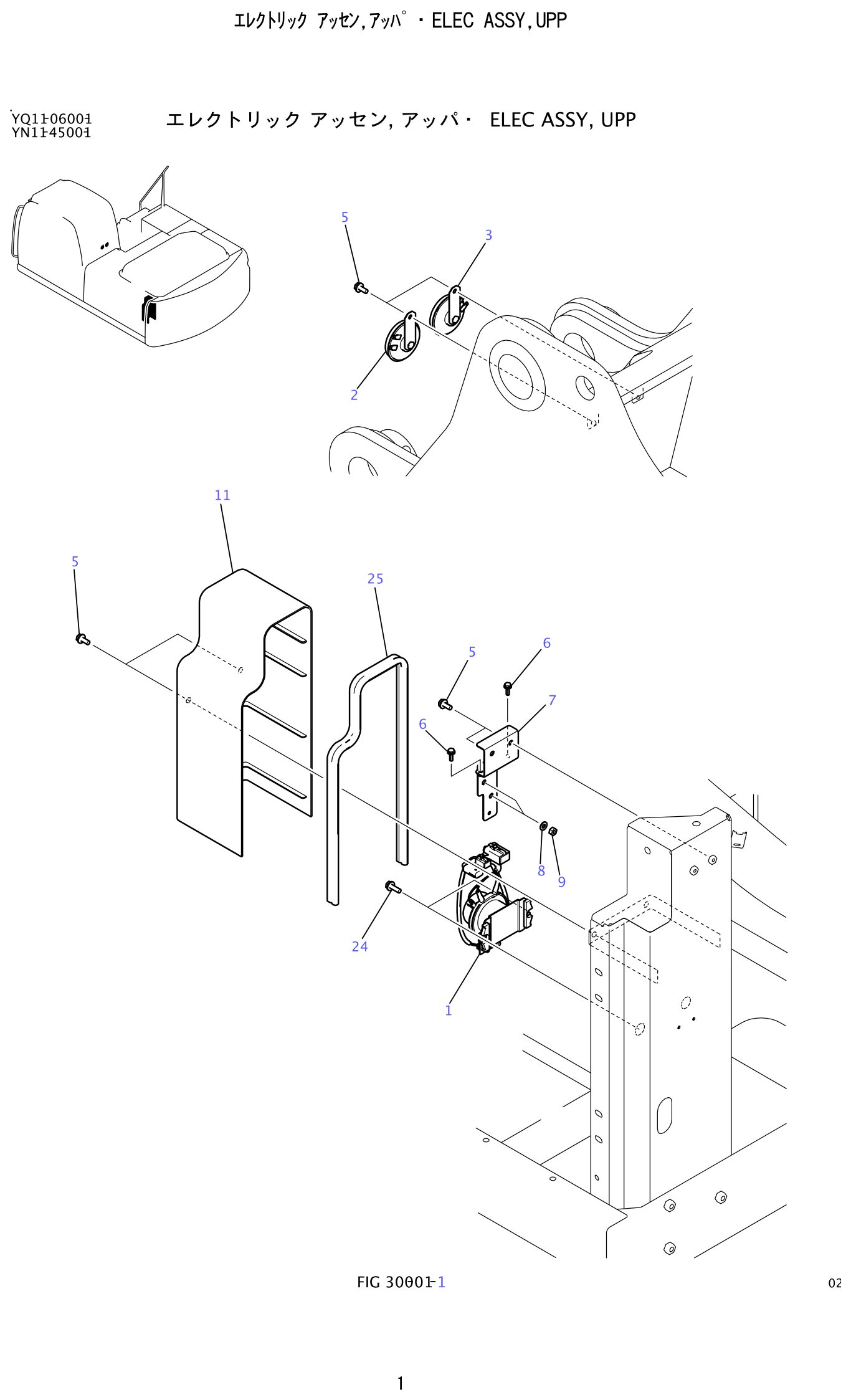

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Elec Assembly,Upp

The Elec Assembly,Upp group on the Kobelco SK200-8 contains 12 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 12 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 12 numbers fall into 8 Kobelco number series — ZM73C, LC03E, LC53S among the largest. The list is weighted toward repeated items such as sems, bolt, horn and 5 hardware positions.

Where to start in this table: ZM73C08020 (sems-bolt, ×6 per assembly); ZM73C06020 (sems-bolt, ×2 per assembly); ZW16P06000 (washer, ×2 per assembly). The full list follows below.

The parts in this group rarely fail on their own, but they are replaced alongside the components that do — which is why they are listed separately here, ready to be added to any repair order.

Where this section carries no illustration, the parts table below is the authoritative list. Every entry is a real Kobelco part number — nothing on this page is generic or approximated.
