Kobelco SK200-8 Muffler Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Muffler Assembly · 19 part numbers

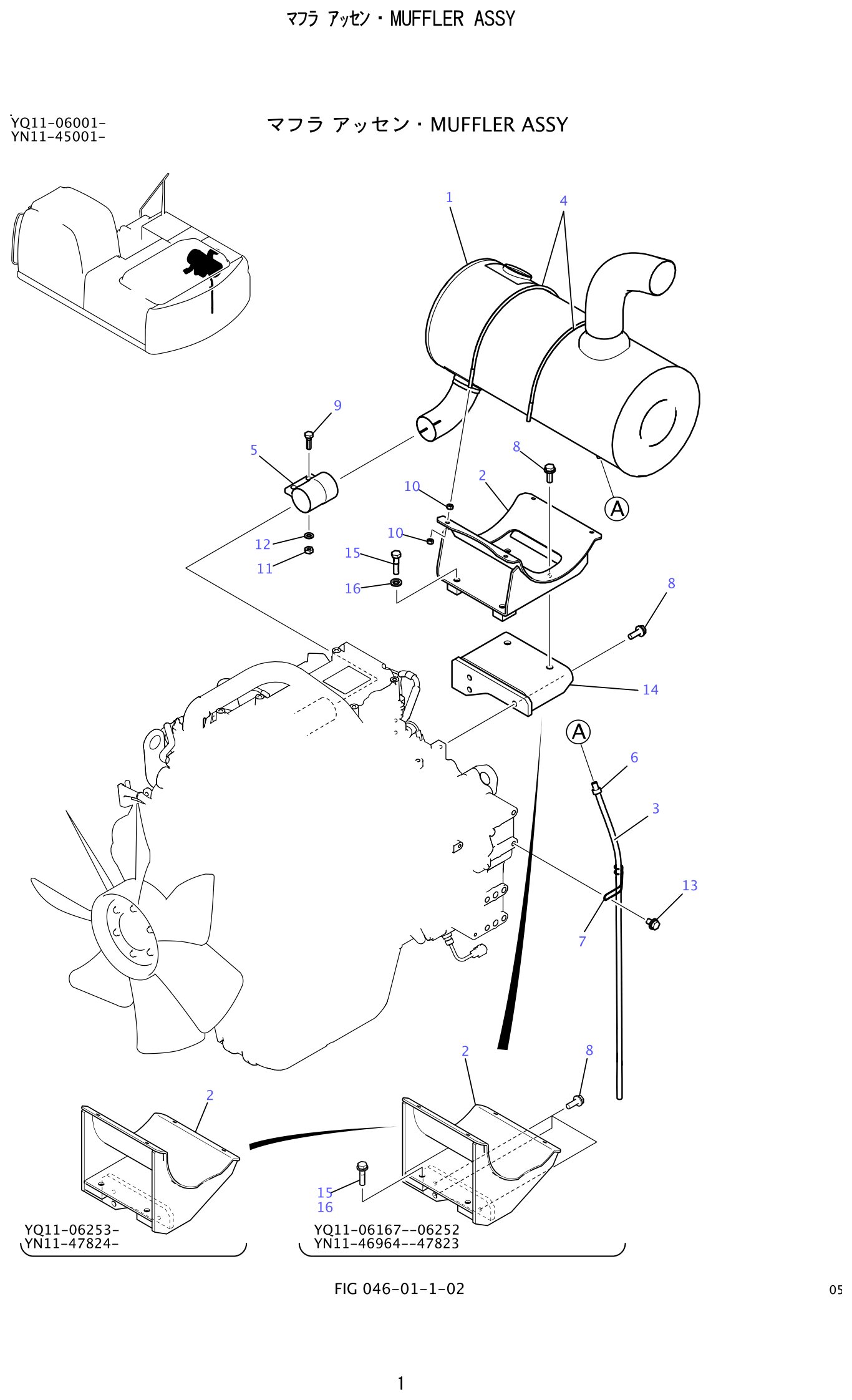

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Muffler Assembly

Every part number in the Kobelco SK200-8 Muffler Assembly is listed here — 19 of them, with quantities. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 19 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 19 entries group into 10 distinct number series, led by YN12P, LQ12P. In practice that means repeated items such as bracket, bolt, muffler and 11 hardware positions.

If you are quoting from this group, start with: ZN18C08007 (nut, ×8 per assembly); ZM73C12035 (sems-bolt, ×5 per assembly); HR91C08000GM (u-bolt, ×2 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with your enquiry. Fitment changed across the production run on some groups, and the serial number lets us confirm the correct parts before you commit.

This group covers components that do not fall under the main hydraulic, structural or engine headings — but the ordering logic is identical: find the item on the exploded view where one exists, note the callout number, and take the matching part number from the table.
