Kobelco SK200-8 Grip Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Grip Assembly · 16 part numbers

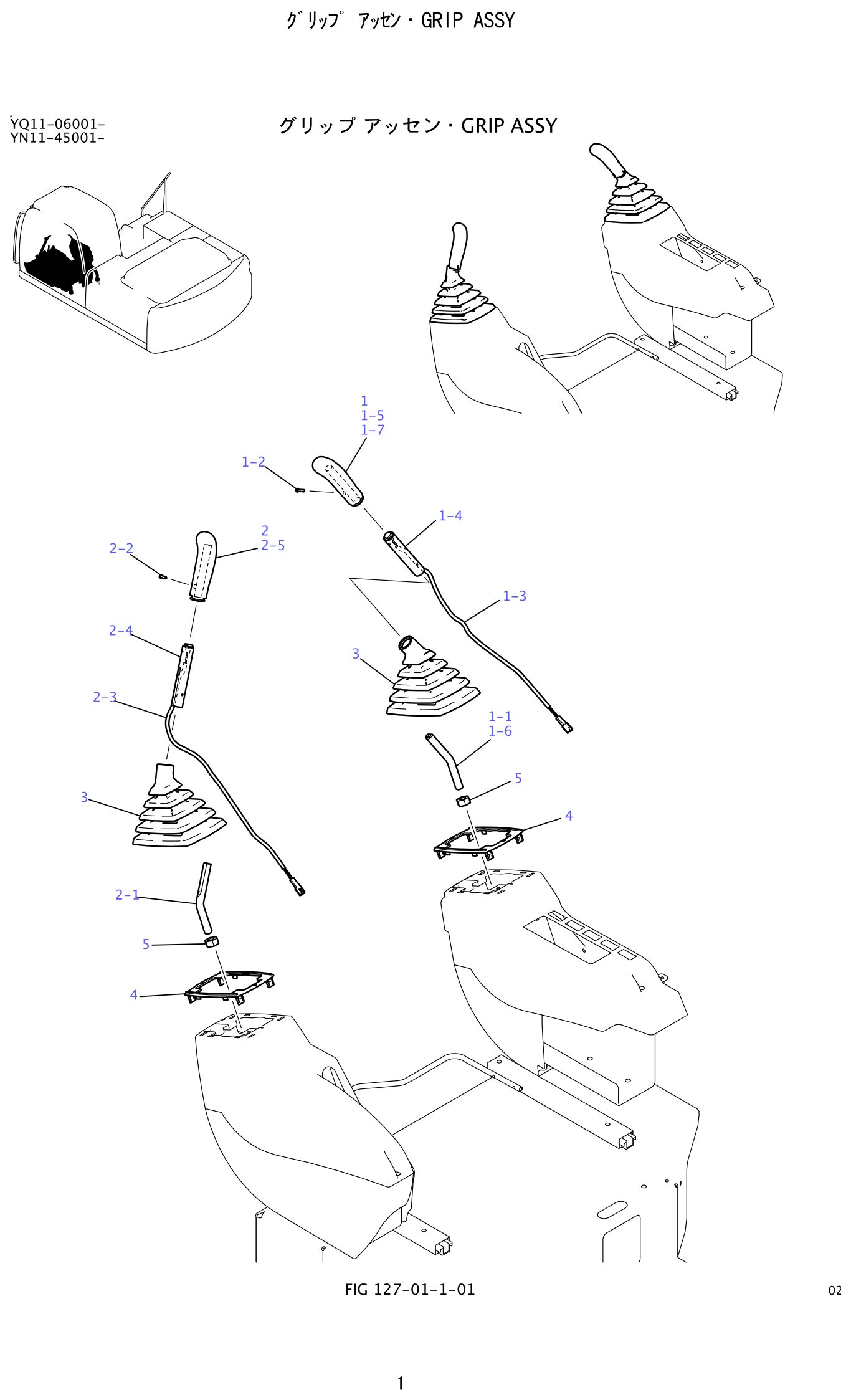

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Grip Assembly

The Kobelco SK200-8 Grip Assembly breaks down into 16 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 16 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 16 entries group into 4 distinct number series, led by YN03M, ZS31C. In practice that means repeated items such as grip, lever, machine and 3 hardware positions.

The high-quantity positions are: YN03M01498P1 (boot, ×2 per assembly); YN03M01328P2 (plate, ×2 per assembly); ZN18C14011 (nut, ×2 per assembly). The full list follows below.

Where this section carries no illustration, the parts table below is the authoritative list. Every entry is a real Kobelco part number — nothing on this page is generic or approximated.

Hardware and fittings in this group are inexpensive and light, so they consolidate into an existing shipment at almost no extra freight.
