Kobelco SK200-8 Radiator Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Radiator Assembly · 37 part numbers

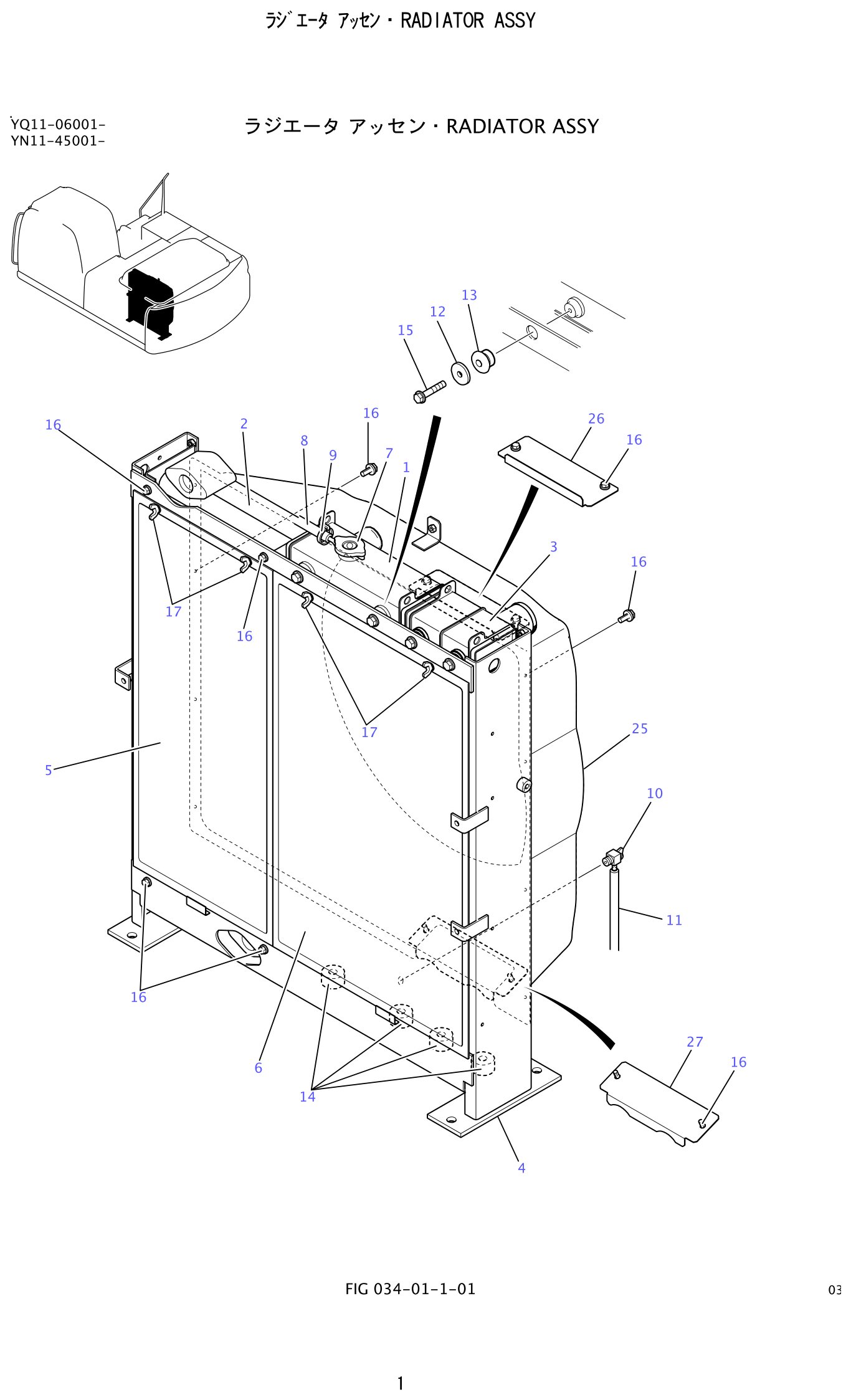

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Radiator Assembly

Below is the complete Kobelco SK200-8 Radiator Assembly — 37 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 37 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 37 numbers fall into 5 Kobelco number series — YN05P, 2452U, LC05P among the largest. Expect repeated items such as insulation, rubber, radiator and 4 hardware positions when you work through it.

Three numbers worth noting first: 2452U377S6 (capscrew, ×16 per assembly); YN05P00058S012 (collar, ×4 per assembly); YN05P00058S013 (mount,rubber, ×4 per assembly). The full list follows below.

The Radiator Assembly group contains 37 separately orderable part numbers for the Kobelco SK200-8. The table below lists every number with its quantity per assembly, taken from the machine's own parts catalogue.

Send the Kobelco SK200-8 serial number with the engine number from the nameplate. Both together let us confirm the correct parts for your build before quoting, since several components changed across the production run.
