Kobelco SK200-8 Radiator Group — Exploded View & Part Numbers

Kobelco SK200-8 · Radiator Group · 38 part numbers

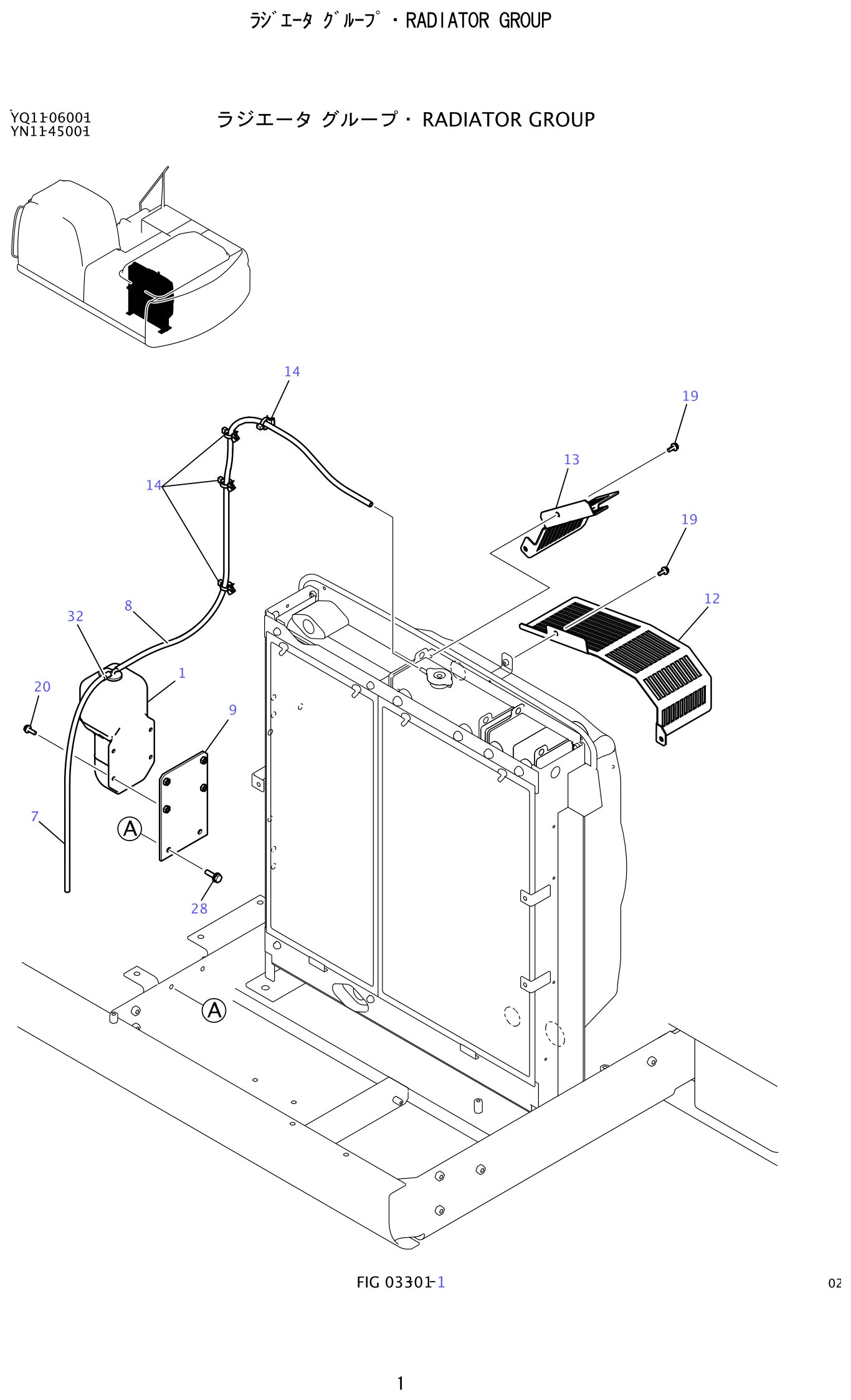

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Radiator Group

The Kobelco SK200-8 Radiator Group breaks down into 38 individually orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 38 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 38 entries group into 14 distinct number series, led by YN05P, ZM73C. Expect repeated items such as hose, clip, bolt and 20 hardware positions when you work through it.

Where to start in this table: ZC16X05800 (clip, ×6 per assembly); ZM73C08020 (sems-bolt, ×5 per assembly); YN03E01001D5 (clip, ×4 per assembly). The full list follows below.

Working from the exploded view keeps ordering precise: find the component on the drawing, note the callout number, and match it to the Ref. column in the table. Where no illustration exists for this section, the parts table below is the authoritative list.

Cooling-system items in this group are the usual first suspects for overheating under load. Cores, hoses, clamps and the water-side hardware are all separately orderable, which keeps a cooling repair proportionate to the fault.
