Kobelco SK200-8 Fuel Lines — Exploded View & Part Numbers

Kobelco SK200-8 · Fuel Lines · 26 part numbers

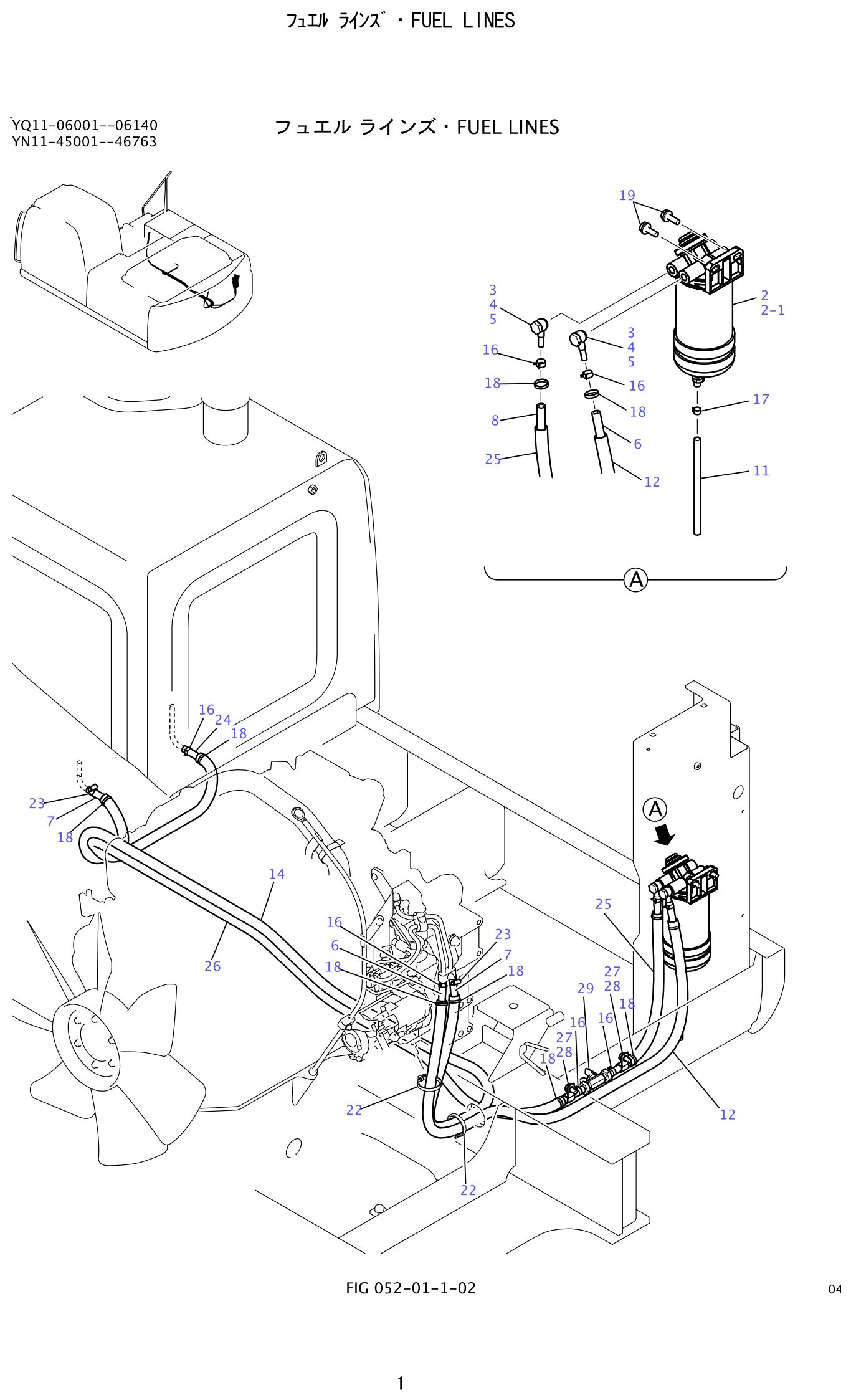

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Fuel Lines

The Fuel Lines group on the Kobelco SK200-8 contains 26 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 26 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 26 numbers fall into 15 Kobelco number series — HX81X, HX11F, YN21P among the largest. In practice that means repeated items such as clip, hose, tube and 10 hardware positions.

Where to start in this table: PY01P01043D2 (clip, ×8 per assembly); PH05P01088D7 (clip, ×6 per assembly); VH965914104A (washer soft, ×4 per assembly). The full list follows below.

Cooling and fuel-system faults on the Kobelco SK200-8 usually show up as overheating under load, hard starting, or loss of power. Because each component in this group is separately orderable, the repair can be scoped to the parts actually involved instead of a wholesale exchange.

Where an item in this group is engine-maker branded rather than Kobelco-numbered, the cross-reference in the table lets us quote the identical part through the engine channel when that is faster or cheaper.
