Kobelco SK200-8 Radio Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Radio Installation · 14 part numbers

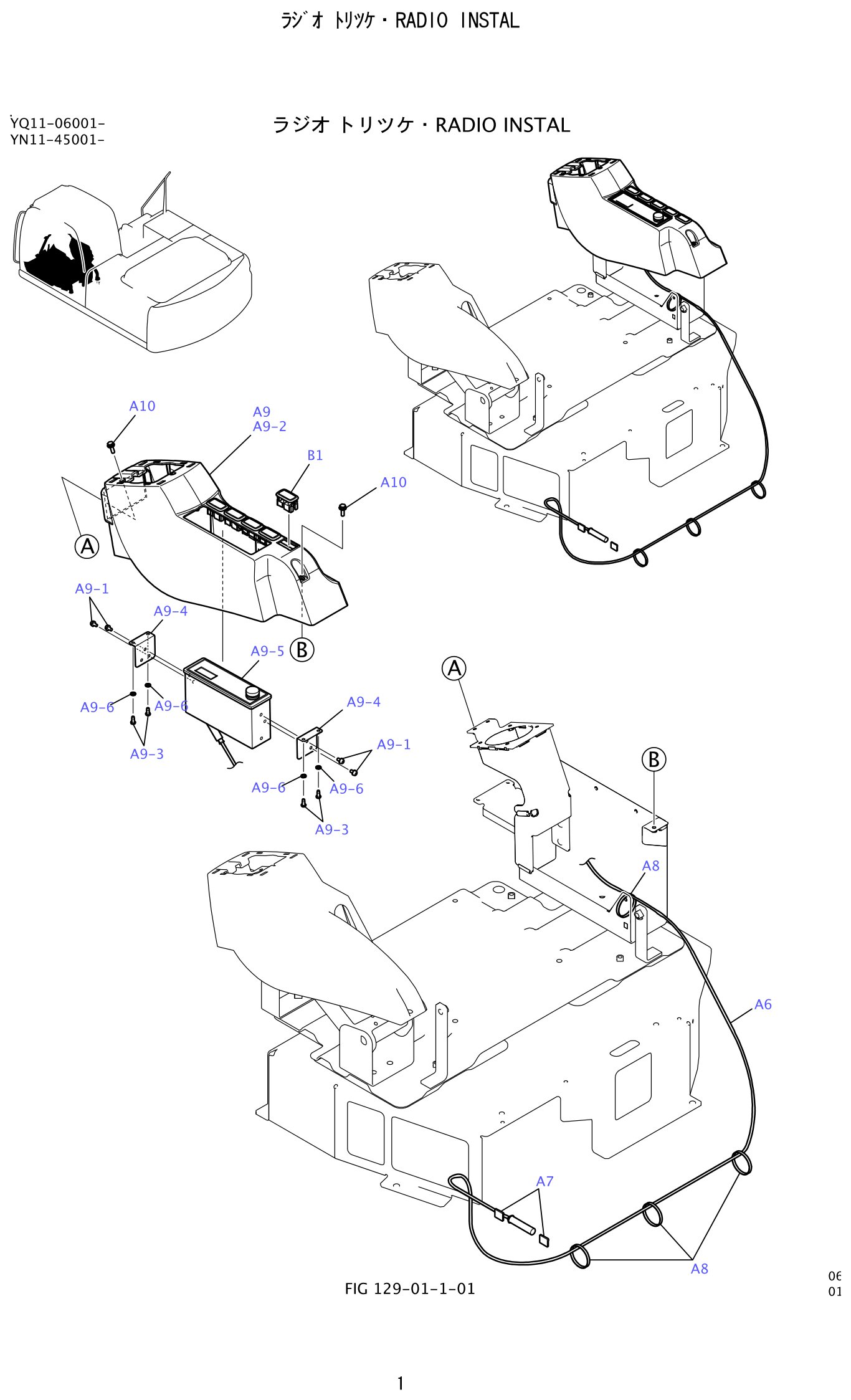

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Radio Installation

Below is the complete Kobelco SK200-8 Radio Installation — 14 part numbers with the quantity fitted per assembly. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 14 numbers fall into 10 Kobelco number series — YN54E, YN17M, 2432Z among the largest. In practice that means repeated items such as radio, instal, clip and 6 hardware positions.

If you are quoting from this group, start with: YN17M01282P1 (cap, ×5 per assembly); PY01P01043D3 (clip, ×4 per assembly); 2420R1089D1 (sems-bolt, ×4 per assembly). The full list follows below.

The Radio Installation group on the Kobelco SK200-8 contains 14 separately orderable part numbers. The table below lists each with its quantity per assembly, taken from the machine's own parts catalogue.

Send the Kobelco SK200-8 serial number with your enquiry. Fitment changed across the production run on some groups, and the serial number lets us confirm the correct parts before you commit.
