Kobelco SK200-8 Idler Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Idler Assembly · 9 part numbers

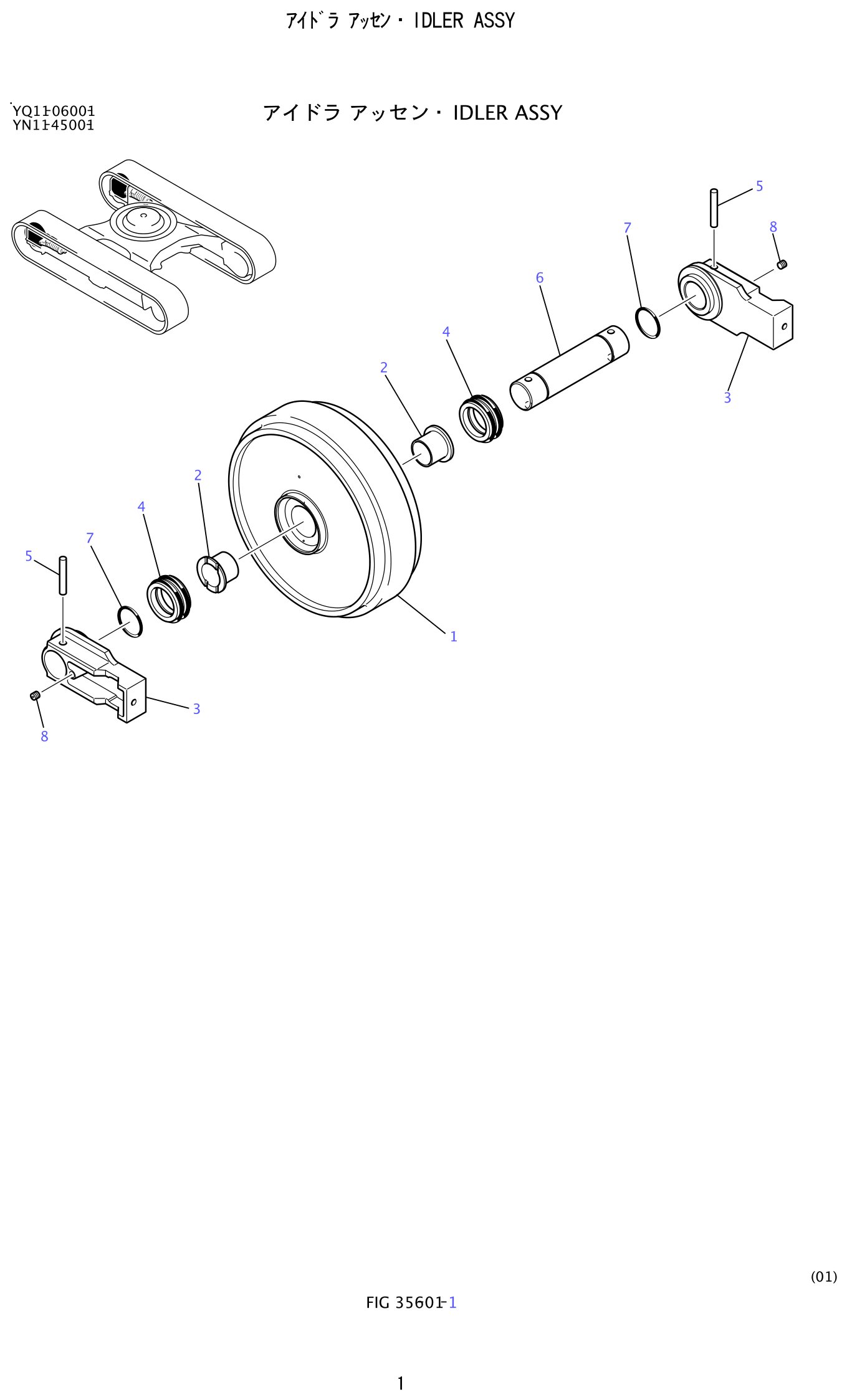

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Idler Assembly

The Idler Assembly group on the Kobelco SK200-8 contains 9 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 9 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 9 numbers fall into 5 Kobelco number series — YN52D, 2405P, 2445R among the largest. The list is weighted toward repeated items such as idler, bushing, collar and 1 hardware positions.

The high-quantity positions are: 2405P482 (bushing, ×2 per assembly); YN52D01011P1 (collar, ×2 per assembly); 2445R442F1 (seal assy,floating, ×2 per assembly). The full list follows below.

Structural repairs are usually planned against measured wear rather than a fixed interval. Pins and bushings are the items to measure first; the retaining hardware in this group is cheap to replace at the same time and is worth adding to the same shipment.

The callout numbers on the exploded view map one-to-one to the Ref. column in the parts table. Identify the joint or component on the drawing, take its number from the table, and the quotation you receive will match the drawing exactly.
