Kobelco SK200-8 Light Installation (Boom) — Exploded View & Part Numbers

Kobelco SK200-8 · Light Installation (Boom) · 9 part numbers

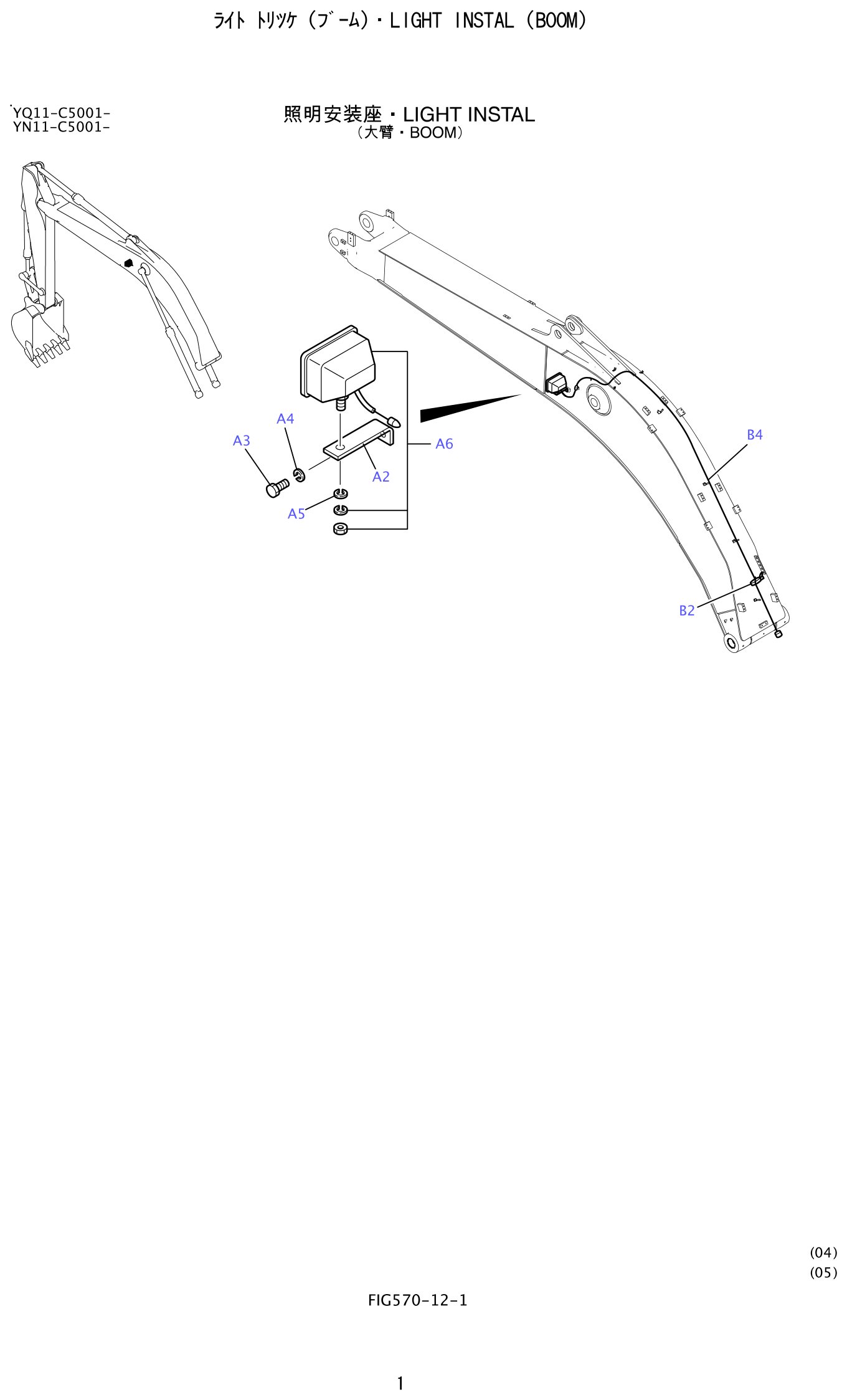

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Light Installation (Boom)

This page lists all 9 part numbers in the Kobelco SK200-8 Light Installation (Boom). The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 9 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 9 part numbers spread across 7 number series (2418R, YN15E, YN80E being the biggest) The list is weighted toward repeated items such as light, boom, lock and 4 hardware positions.

If you are quoting from this group, start with: 2416T13056 (bracket, ×1 per assembly); ZS18C10020 (capscrew, ×1 per assembly); 2418R323D11 (lock washer, ×1 per assembly). The full list follows below.
