Kobelco SK200-8 Low Group — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group · 24 part numbers

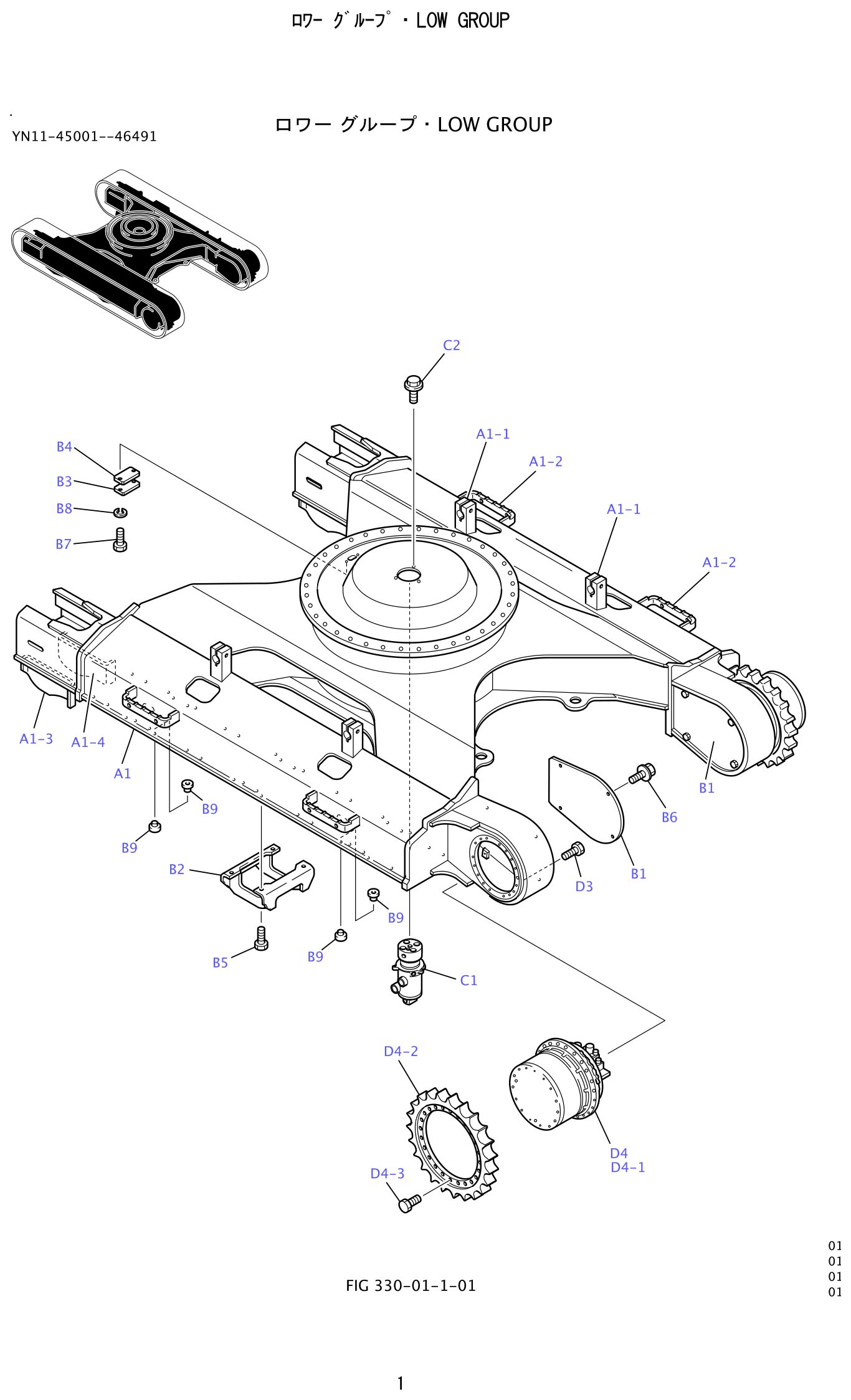

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group

This page lists all 24 part numbers in the Kobelco SK200-8 Low Group. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 24 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 24 part numbers spread across 17 number series (YN07F, YN01F, YN02F being the biggest) Expect repeated items such as capscrew, low, guide and 6 hardware positions when you work through it.

If you are quoting from this group, start with: 2420P2963D3 (capscrew, ×52 per assembly); YN01F01040P1 (cap, ×32 per assembly); ZS13C16045 (capscrew, ×26 per assembly). The full list follows below.

This group covers components that do not fall under the main hydraulic, structural or engine headings — but the ordering logic is identical: find the item on the exploded view where one exists, note the callout number, and take the matching part number from the table.

The parts in this group rarely fail on their own, but they are replaced alongside the components that do — which is why they are listed separately here, ready to be added to any repair order.
