Kobelco SK200-8 Low Group (For Long Crawler) — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group (For Long Crawler) · 27 part numbers

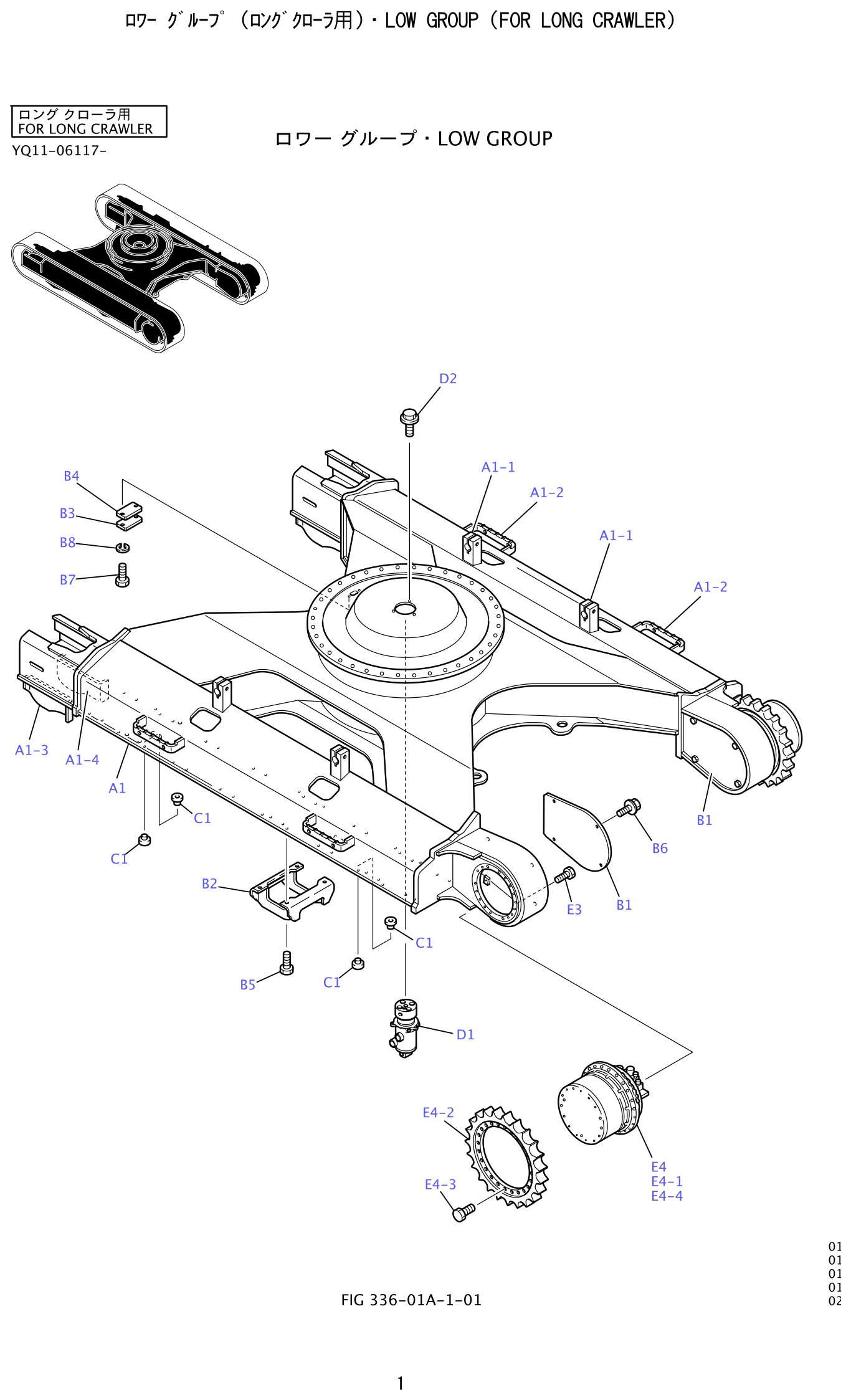

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group (For Long Crawler)

The Low Group (For Long Crawler) group on the Kobelco SK200-8 contains 27 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 27 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 27 numbers fall into 17 Kobelco number series — YN01F, YN07F, YN53D among the largest. In practice that means repeated items such as motor, propel, capscrew and 6 hardware positions.

Where to start in this table: 2420P2963D3 (capscrew, ×52 per assembly); YN01F01040P1 (cap, ×32 per assembly); ZS13C16045 (capscrew, ×26 per assembly). The full list follows below.

The Low Group (For Long Crawler) group on the Kobelco SK200-8 contains 27 separately orderable part numbers. The table below lists each one with its quantity per assembly, taken directly from the machine's own parts catalogue.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several Kobelco SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.
