Kobelco SK200-8 Low Group (For Long Crawler) (HD) — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group (For Long Crawler) (HD) · 25 part numbers

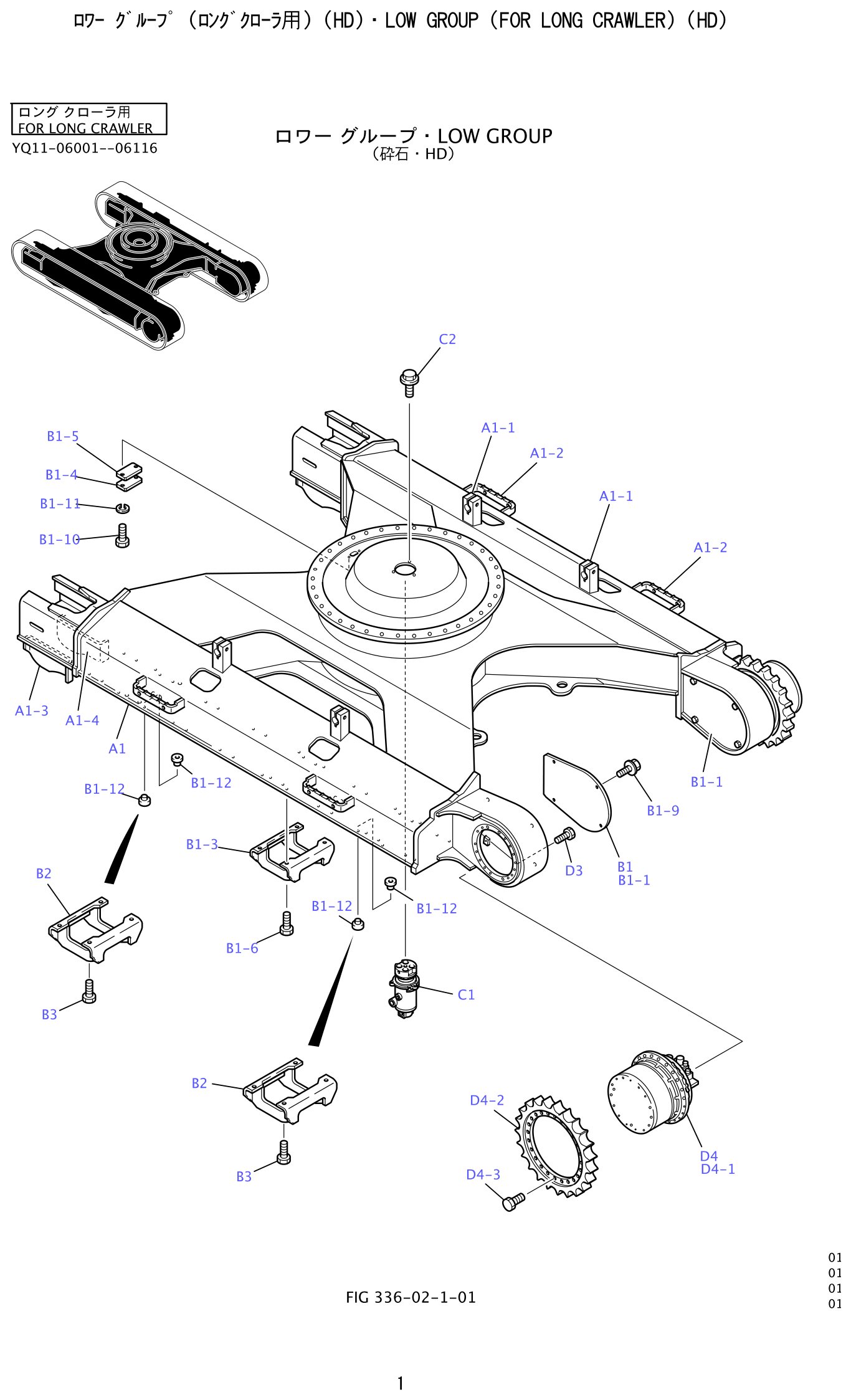

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group (For Long Crawler) (HD)

This page lists all 25 part numbers in the Kobelco SK200-8 Low Group (For Long Crawler) (HD). Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 25 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 25 part numbers spread across 17 number series (YN01F, YN07F, YN02F being the biggest) In practice that means repeated items such as low, capscrew, guide and 6 hardware positions.

Three numbers worth noting first: 2420P2963D3 (capscrew, ×52 per assembly); YN01F01040P1 (cap, ×32 per assembly); ZS13C16045 (capscrew, ×26 per assembly). The full list follows below.

Rebuilding a joint takes the machine out of service once, so it pays to consolidate: pins, bushings, retaining rings and the joint seals quoted together, arriving as one kit rather than in several parcels.

Undercarriage and structural wear is progressive: play at a joint, a knocking sound on direction change, oval wear on a pin. Because each position carries its own part number, worn positions can be replaced individually instead of ordering the complete group.
