Kobelco SK200-8 Low Group (For Long Crawler) (HD) — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group (For Long Crawler) (HD) · 26 part numbers

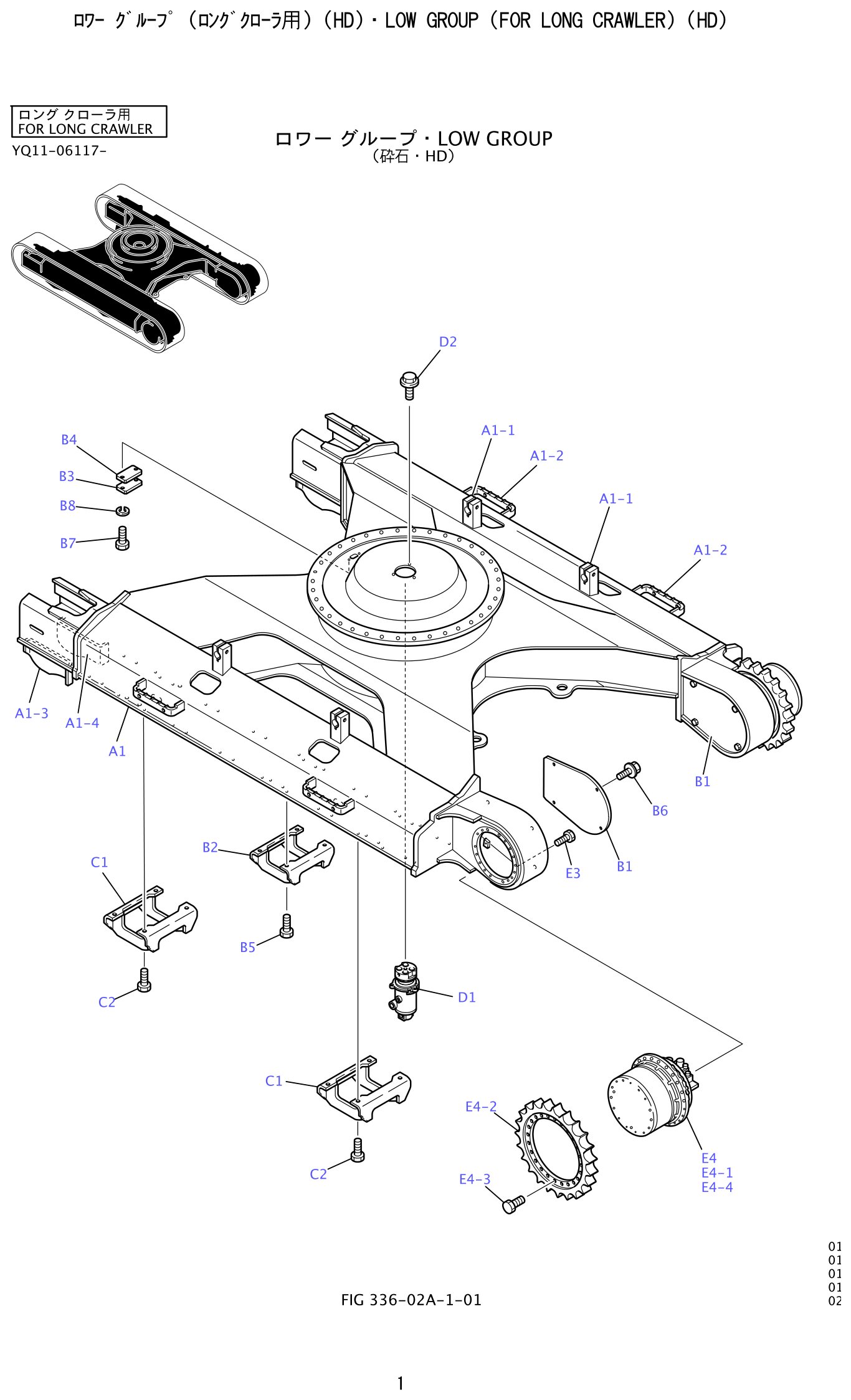

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group (For Long Crawler) (HD)

The Kobelco SK200-8 Low Group (For Long Crawler) (HD) breaks down into 26 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 26 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 26 entries group into 17 distinct number series, led by YN07F, YN01F. In practice that means repeated items such as motor, propel, low and 6 hardware positions.

The high-quantity positions are: 2420P2963D3 (capscrew, ×52 per assembly); ZS13C16045 (capscrew, ×26 per assembly); 2420P1580D1 (capscrew, ×8 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several Kobelco SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.

Structural groups rarely fail as castings; what wears is everything pinned, bolted and clamped to them. That is what makes this group the practical one to work from — pins, bushings, retaining hardware and the mounting points that take the working load every cycle of the machine.
