Kobelco SK200-8 Low Group (HD) — Exploded View & Part Numbers

Kobelco SK200-8 · Low Group (HD) · 25 part numbers

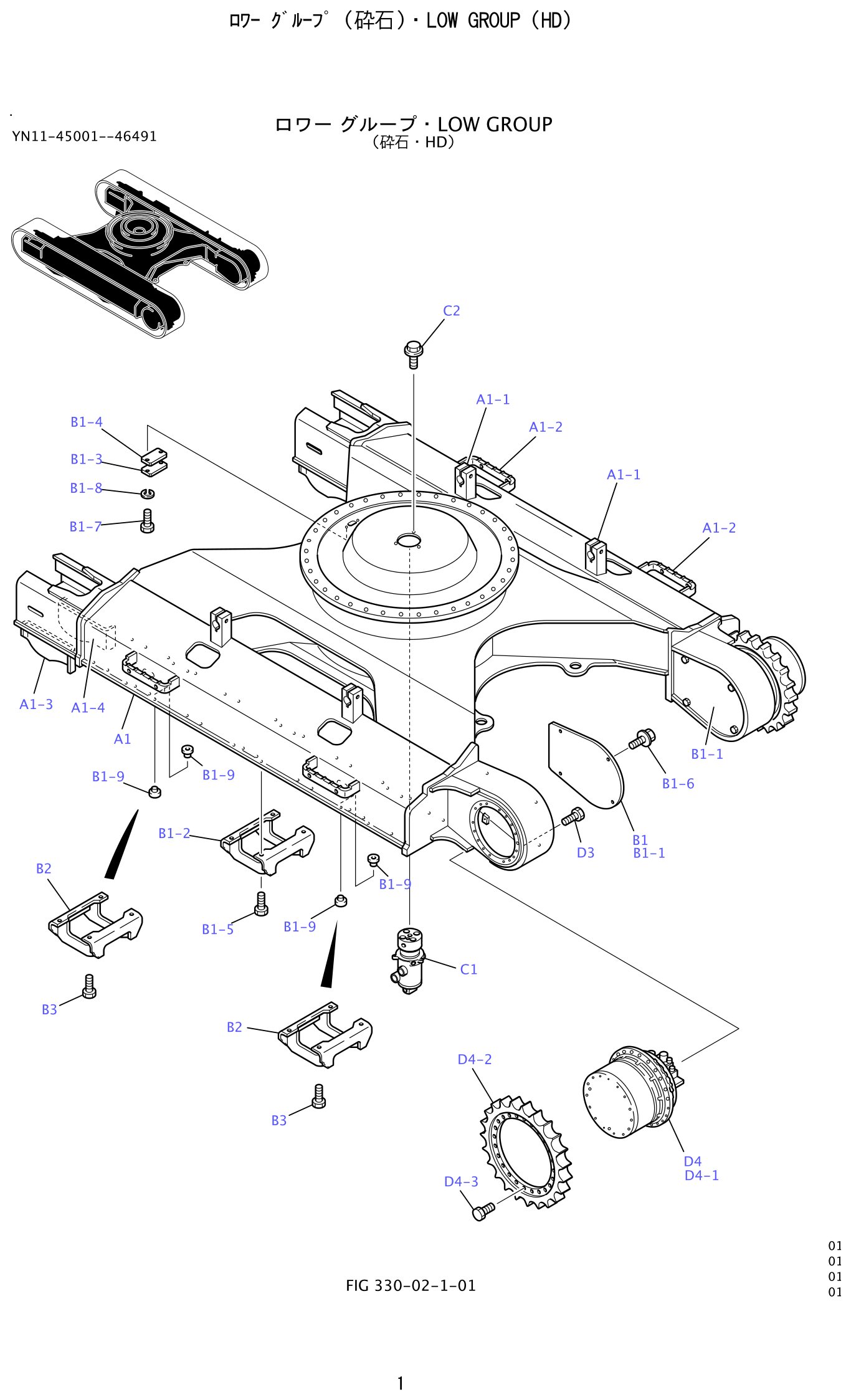

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Low Group (HD)

Below is the complete Kobelco SK200-8 Low Group (HD) — 25 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 25 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 25 numbers fall into 17 Kobelco number series — YN01F, YN07F, YN02F among the largest. Expect repeated items such as low, capscrew, guide and 6 hardware positions when you work through it.

Three numbers worth noting first: 2420P2963D3 (capscrew, ×52 per assembly); YN01F01040P1 (cap, ×32 per assembly); ZS13C16045 (capscrew, ×26 per assembly). The full list follows below.

The parts in this group rarely fail on their own, but they are replaced alongside the components that do — which is why they are listed separately here, ready to be added to any repair order.

Where this section carries no illustration, the parts table below is the authoritative list. Every entry is a real Kobelco part number — nothing on this page is generic or approximated.
