Kobelco SK200-8 Reduction Assembly (Swing) — Exploded View & Part Numbers

Kobelco SK200-8 · Reduction Assembly (Swing) · 33 part numbers

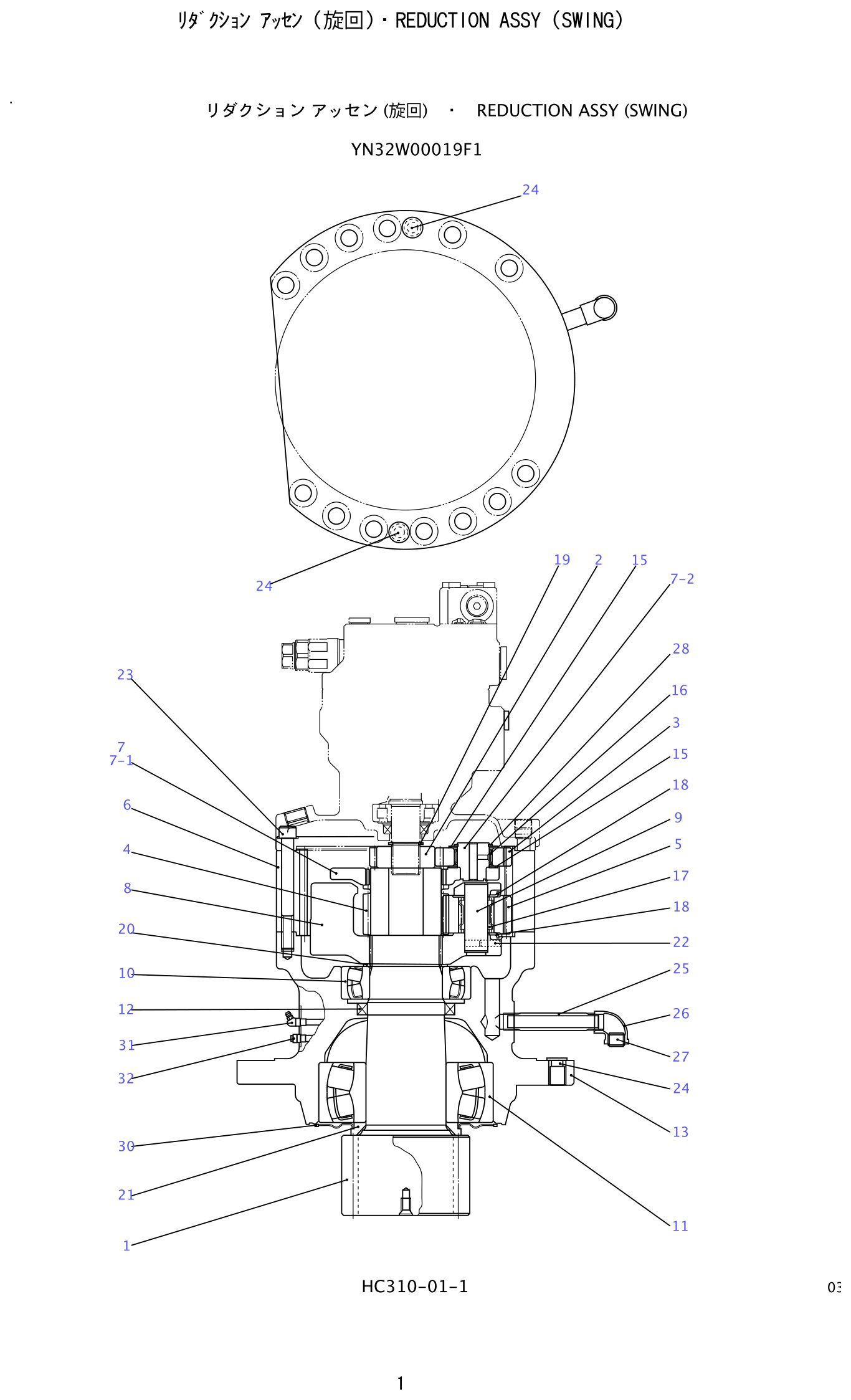

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Reduction Assembly (Swing)

The Kobelco SK200-8 Reduction Assembly (Swing) breaks down into 33 individually orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 33 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 33 entries group into 9 distinct number series, led by YN32W, ZR16X. In practice that means repeated items such as ring, bearing, shaft and 4 hardware positions.

Where to start in this table: HS23C14135G1 (capscrew, ×11 per assembly); YN32W01063P1 (washer,thrust, ×8 per assembly); YN32W01071P1 (washer,thrust, ×6 per assembly). The full list follows below.

If the item you need sits between two groups, send us the part number — our catalogue coverage for the Kobelco SK200-8 runs across every group, and this page is only one of them.

We hold over 3,000 part types on the shelf in Guangzhou, with more than 100,000 part numbers available to order through original supply channels — so if the item you need is not on this page, send us the number and we will source it.
