Kobelco SK200-8 Roller Assembly,Track (For Long Crawler) — Exploded View & Part Numbers

Kobelco SK200-8 · Roller Assembly,Track (For Long Crawler) · 11 part numbers

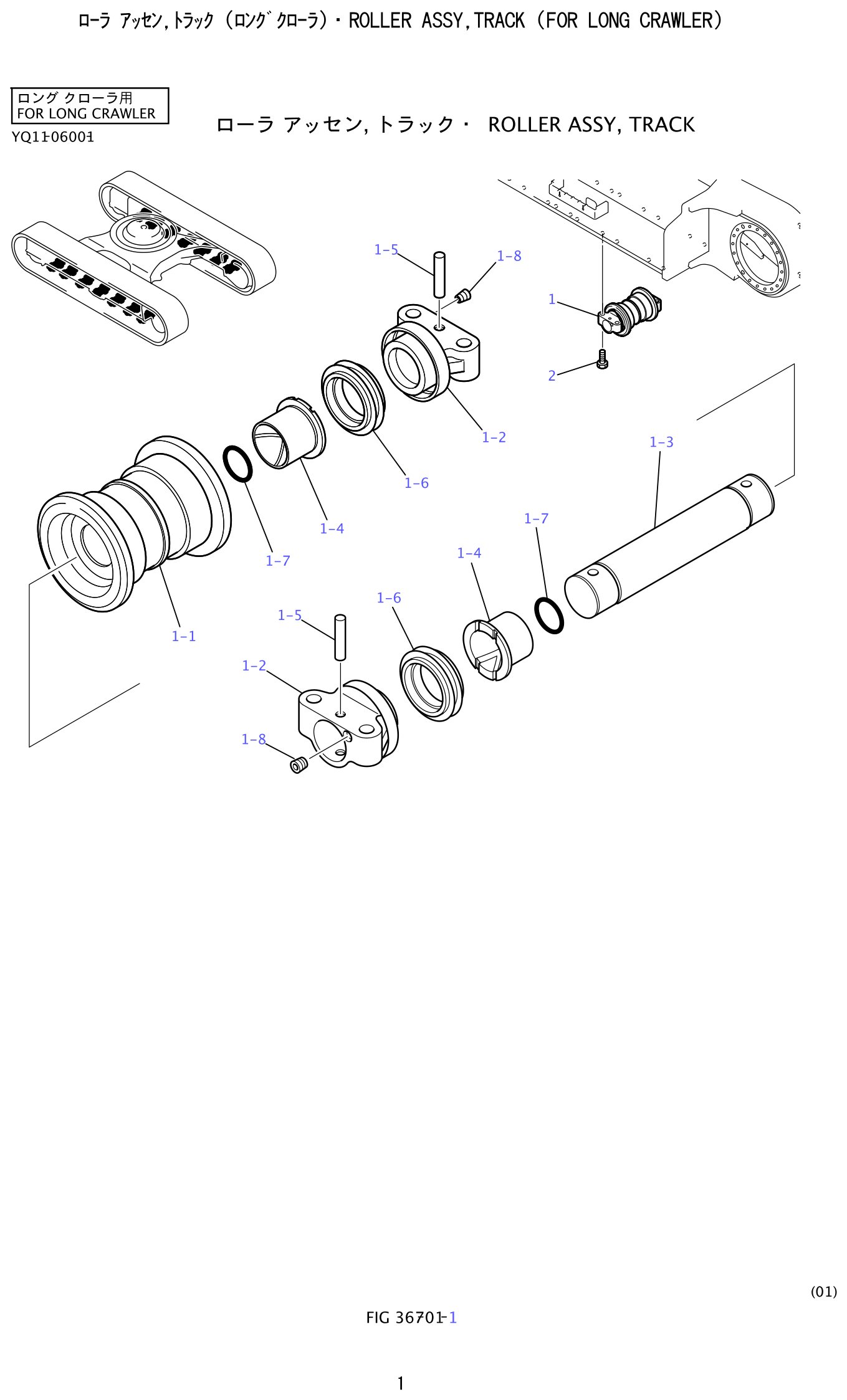

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Roller Assembly,Track (For Long Crawler)

Below is the complete Kobelco SK200-8 Roller Assembly,Track (For Long Crawler) — 11 part numbers with the quantity fitted per assembly. Take the callout number from the drawing and match it in the Ref. column below. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 11 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 11 numbers fall into 7 Kobelco number series — YN64D, YF64D, 2405P among the largest. Expect repeated items such as roller, track, low and 2 hardware positions when you work through it.

Three numbers worth noting first: 2420P1580D4 (capscrew, ×64 per assembly); YF64D00001F1 (roller assy,track,low, ×16 per assembly); YN64D01041P1 (collar, ×2 per assembly). The full list follows below.

The Roller Assembly,Track (For Long Crawler) group on the Kobelco SK200-8 contains 11 separately orderable part numbers. The table below lists each one with its quantity per assembly, taken directly from the machine's own parts catalogue.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.
