Kobelco SK200-8 Roller Assembly,Upp — Exploded View & Part Numbers

Kobelco SK200-8 · Roller Assembly,Upp · 16 part numbers

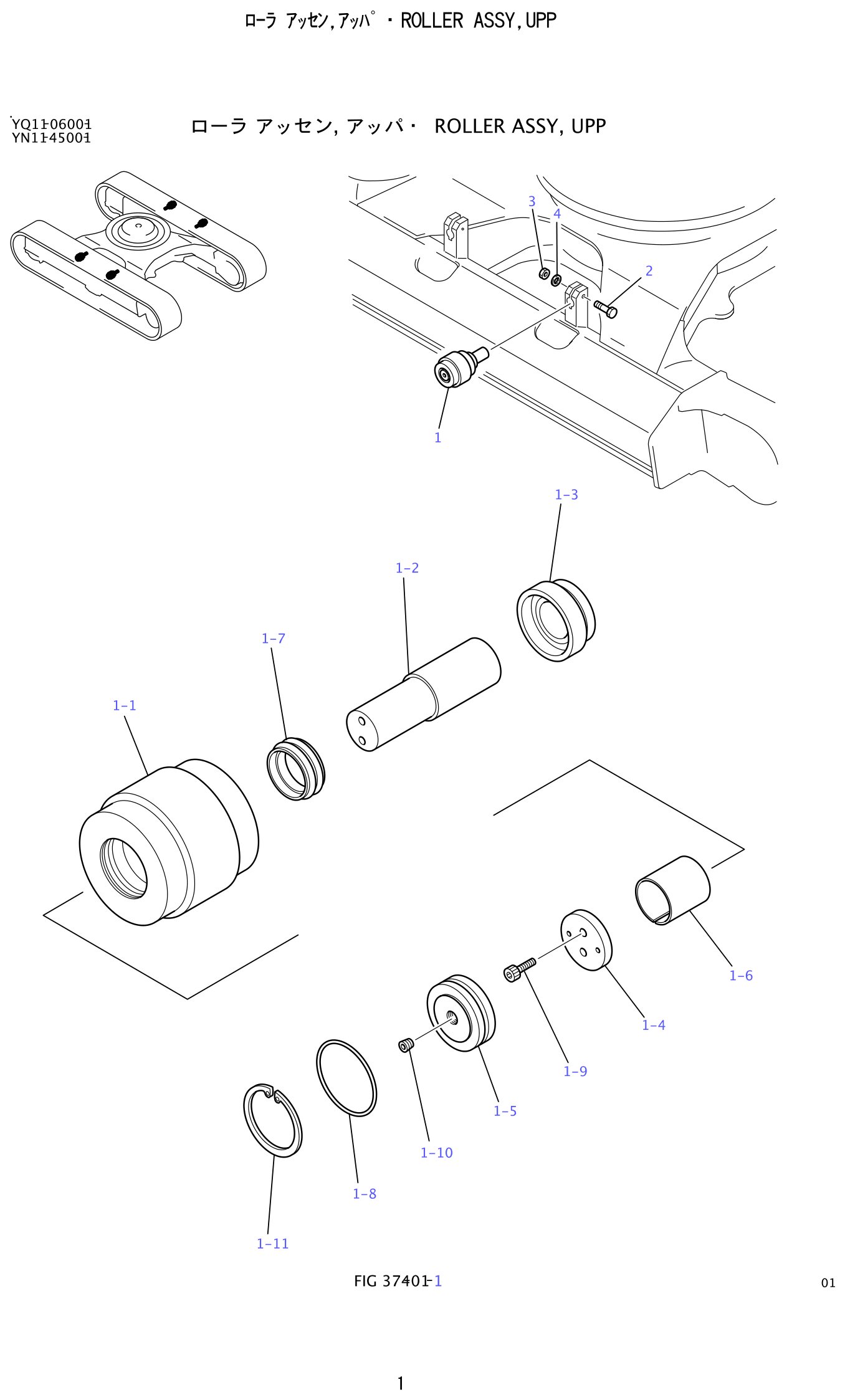

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Roller Assembly,Upp

16 separately orderable part numbers make up the Roller Assembly,Upp on the Kobelco SK200-8. Take the callout number from the drawing and match it in the Ref. column below. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 16 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 16 part numbers spread across 11 number series (YN64D, 2413N, 2418P being the biggest) Expect repeated items such as roller, ring, upp and 5 hardware positions when you work through it.

The high-quantity positions are: YN64D01068F1 (roller assy, ×4 per assembly); YN52F01100D3 (capscrew, ×4 per assembly); ZN13C20016 (nut, ×4 per assembly). The full list follows below.
