Kobelco SK200-8 Shoe Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Shoe Assembly · 31 part numbers

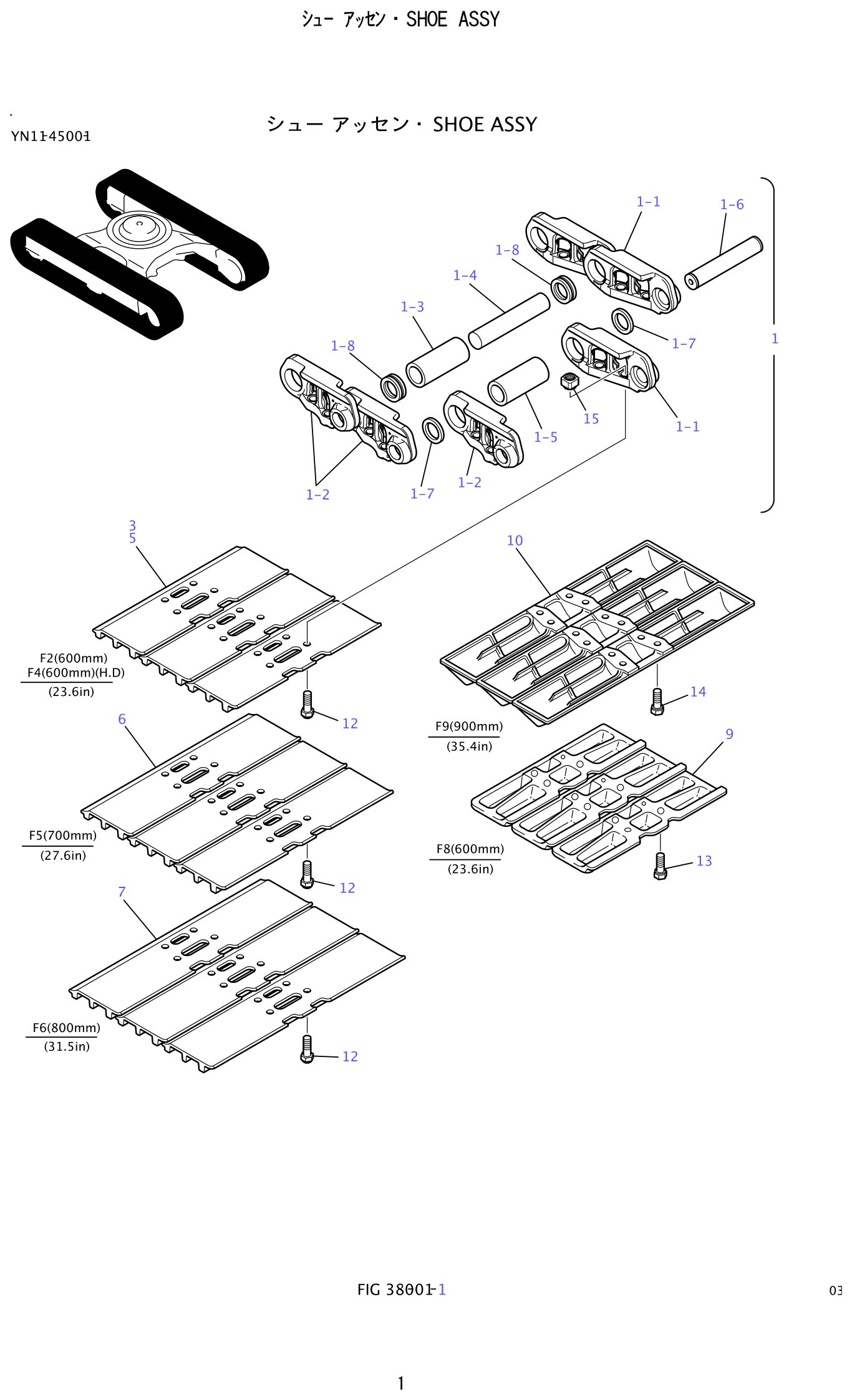

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Shoe Assembly

Every part number in the Kobelco SK200-8 Shoe Assembly is listed here — 31 of them, with quantities. Take the callout number from the drawing and match it in the Ref. column below. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 31 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 31 entries group into 9 distinct number series, led by YN60D, 2424N. Expect repeated items such as shoe, track, link and 4 hardware positions when you work through it.

If you are quoting from this group, start with: 2420Z1292 (bolt,shoe, ×184 per assembly); 2420Z1293 (nut, ×184 per assembly); 2420T7262D2 (bolt,shoe, ×184 per assembly). The full list follows below.

Send the Kobelco SK200-8 serial number with your enquiry. Pin and bushing positions changed across the production run on several Kobelco SK200-8 variants, and the serial number is the fastest way to confirm the correct set before you order.

Structural groups rarely fail as castings; what wears is everything pinned, bolted and clamped to them. That is what makes this group the practical one to work from — pins, bushings, retaining hardware and the mounting points that take the working load every cycle of the machine.
