Kobelco SK200-8 Shoe Assembly (For Long Crawler) — Exploded View & Part Numbers

Kobelco SK200-8 · Shoe Assembly (For Long Crawler) · 35 part numbers

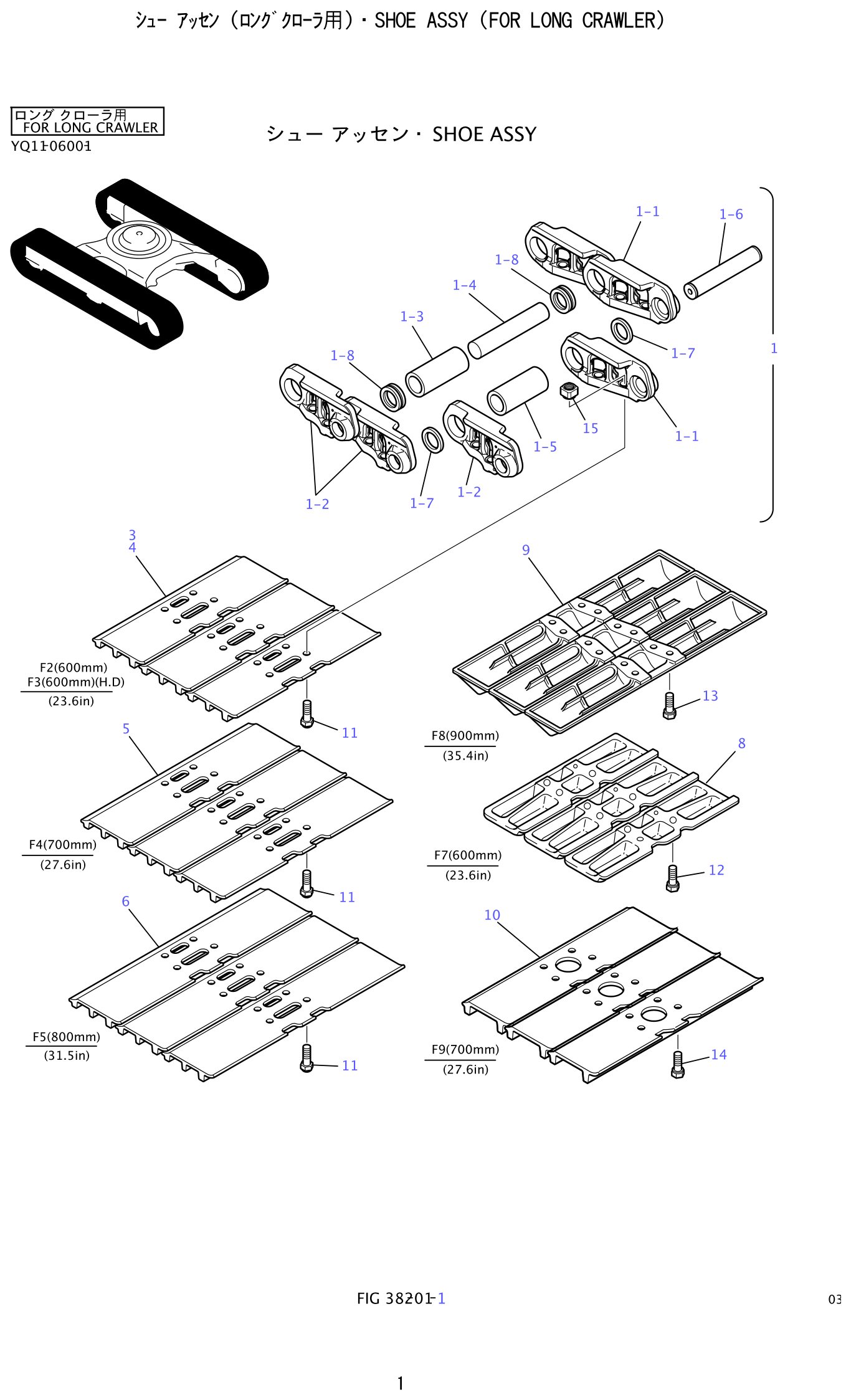

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Shoe Assembly (For Long Crawler)

The Shoe Assembly (For Long Crawler) group on the Kobelco SK200-8 contains 35 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 35 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 35 numbers fall into 9 Kobelco number series — YN60D, 2424N, YN62D among the largest. Expect repeated items such as shoe, track, bolt and 5 hardware positions when you work through it.

Where to start in this table: 2420Z1292 (bolt,shoe, ×196 per assembly); 2420Z1293 (nut, ×196 per assembly); 2420T7262D2 (bolt,shoe, ×196 per assembly). The full list follows below.

Undercarriage and structural wear is progressive: play at a joint, a knocking sound on direction change, oval wear on a pin. Because each position carries its own part number, worn positions can be replaced individually instead of ordering the complete group.

Where the attachment configuration differs — long boom, heavy-duty arm, alternative bucket — the pin and bushing numbers change with it. The serial number on the machine is the reliable way to pick the right line from this table.
