Kobelco SK200-8 Tank Installation,Fuel — Exploded View & Part Numbers

Kobelco SK200-8 · Tank Installation,Fuel · 16 part numbers

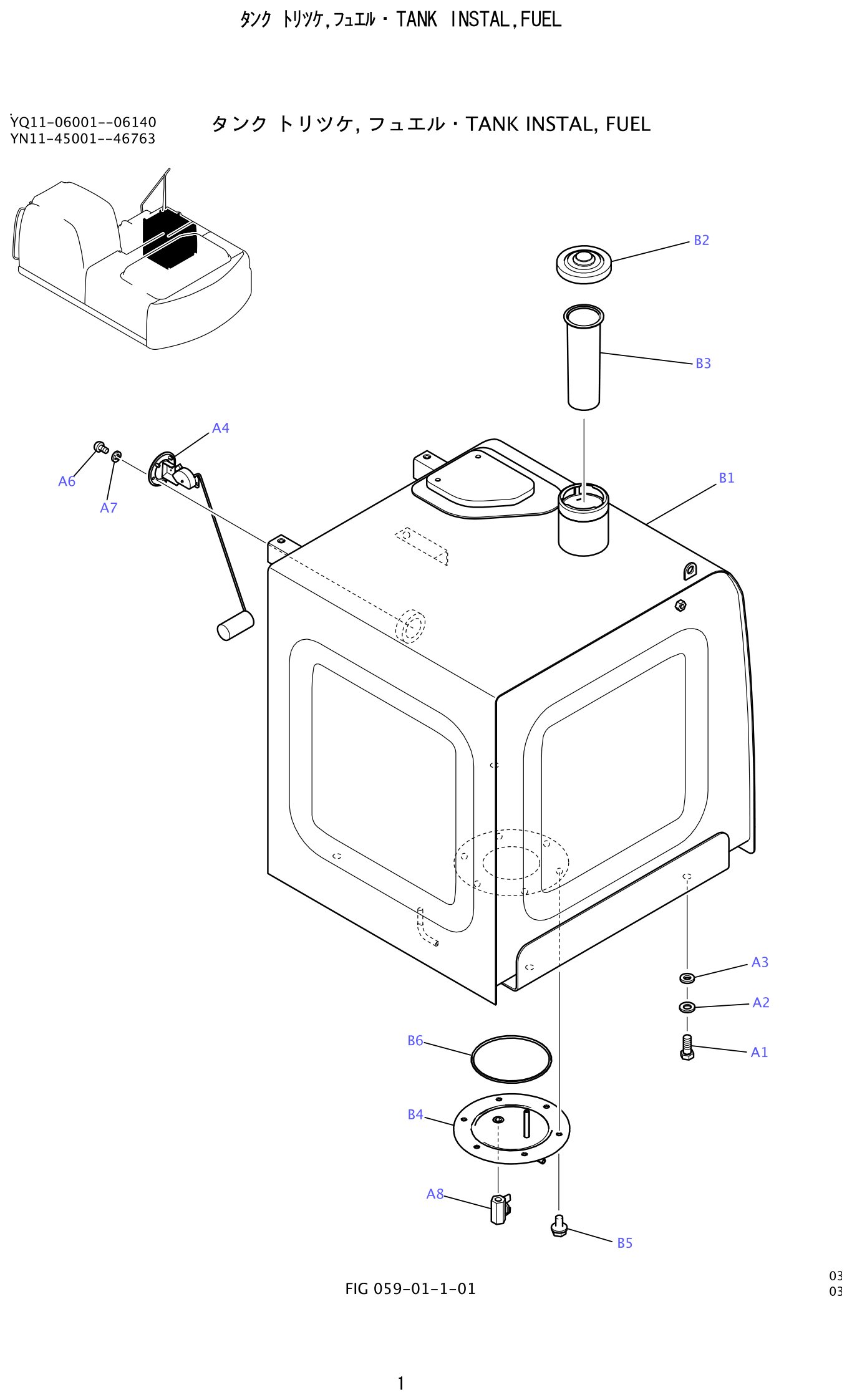

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Tank Installation,Fuel

This page lists all 16 part numbers in the Kobelco SK200-8 Tank Installation,Fuel. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 16 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 16 part numbers spread across 11 number series (YN20P, ZS13C, ZW13H being the biggest) In practice that means repeated items such as fuel, tank, instal and 5 hardware positions.

Three numbers worth noting first: ZM73C10020 (sems-bolt, ×6 per assembly); ZS31C05012 (machine screw, ×5 per assembly); ZW26X05000 (lock washer, ×5 per assembly). The full list follows below.

The Kobelco SK200-8 is powered by a Hino diesel, and this group covers the machine-side components around it — the parts that carry Kobelco part numbers rather than engine-only numbers. Where an engine-mounted item also carries an engine maker's cross-reference, it appears in the table alongside.

Engine-side work on the Kobelco SK200-8 is planned either by symptom or by service hours. Both routes end at the same table: the symptom or the service item maps to a callout, the callout maps to a part number, and the quotation follows.
