Kobelco SK200-8 Tank Installation,Fuel — Exploded View & Part Numbers

Kobelco SK200-8 · Tank Installation,Fuel · 17 part numbers

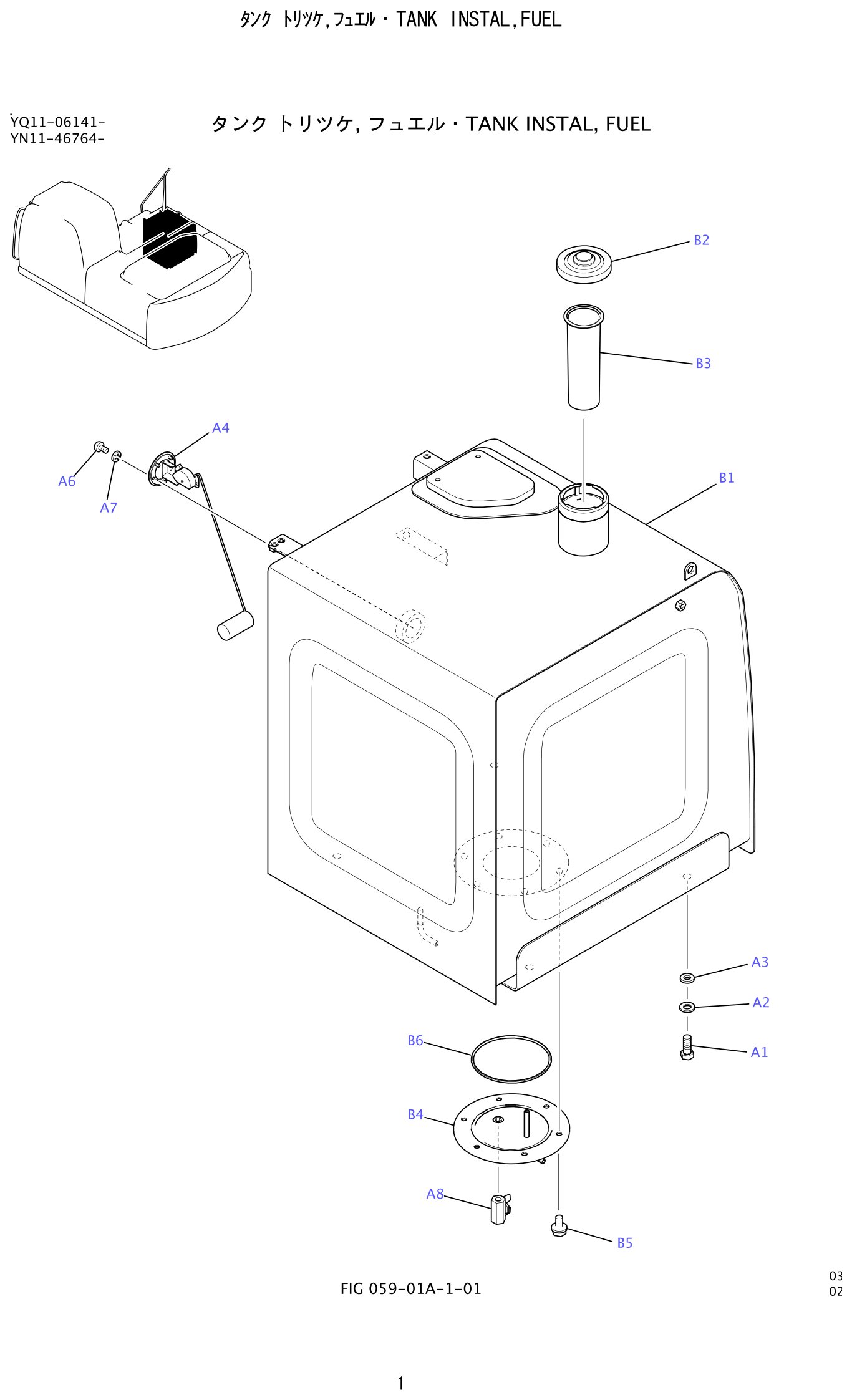

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Tank Installation,Fuel

The Kobelco SK200-8 Tank Installation,Fuel breaks down into 17 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 17 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 17 entries group into 11 distinct number series, led by YN20P, ZS13C. In practice that means repeated items such as fuel, tank, instal and 5 hardware positions.

The high-quantity positions are: ZM73C10020 (sems-bolt, ×6 per assembly); ZS31C05012 (machine screw, ×5 per assembly); ZW26X05000 (lock washer, ×5 per assembly). The full list follows below.

Where an item in this group is engine-maker branded rather than Kobelco-numbered, the cross-reference in the table lets us quote the identical part through the engine channel when that is faster or cheaper.

Every item is quoted with its condition declared — genuine through original supply channels, or a quality OEM alternative. Engine-mounted items can also be quoted against the engine maker's cross-reference where that is the practical route.
