Kobelco SK200-8 Cab Assembly — Exploded View & Part Numbers

Kobelco SK200-8 · Cab Assembly · 124 part numbers

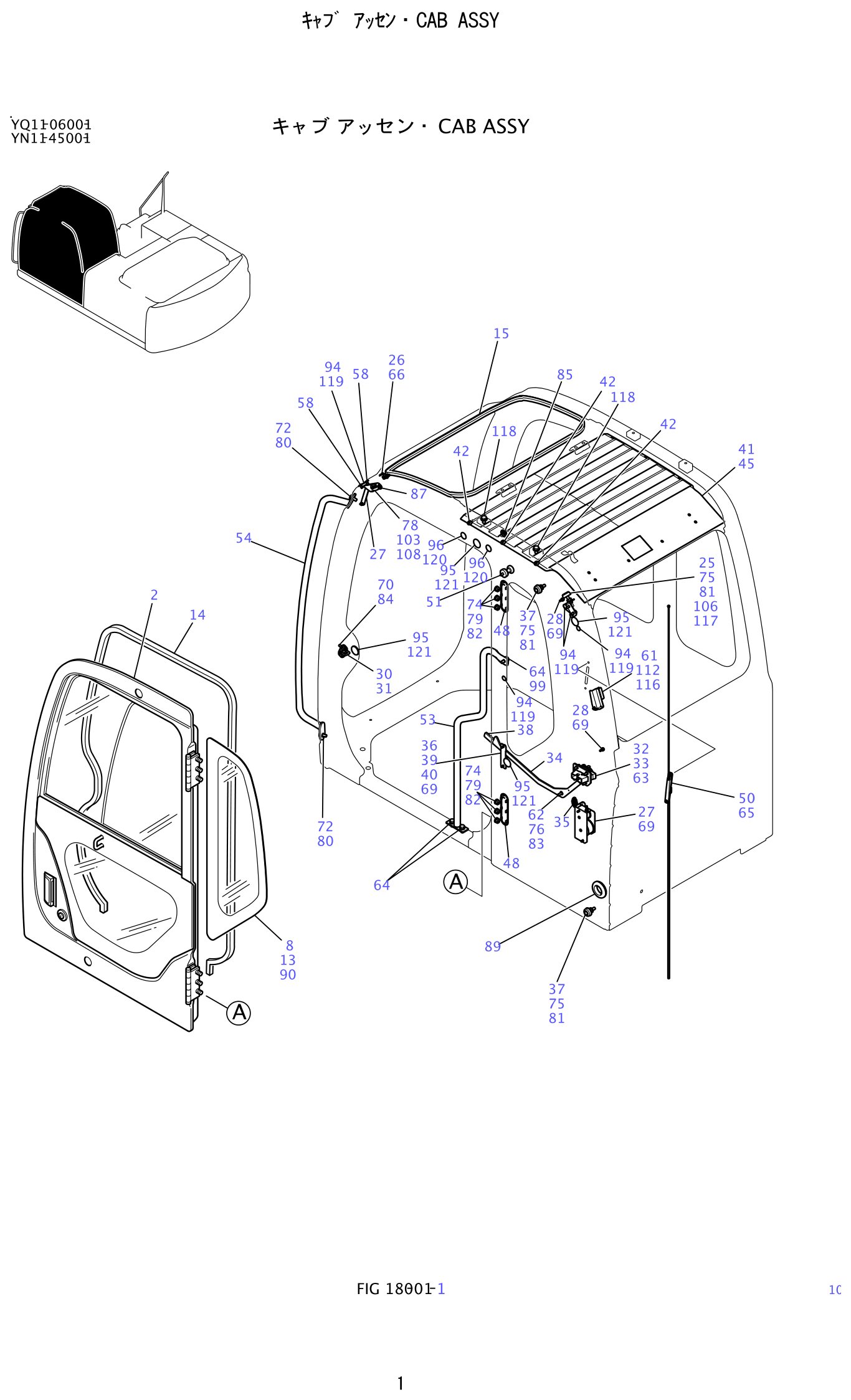

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Cab Assembly

The Kobelco SK200-8 Cab Assembly breaks down into 124 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 124 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 124 entries group into 38 distinct number series, led by YN02C, YT02C. Expect repeated items such as plate, washer, stopper and 33 hardware positions when you work through it.

The high-quantity positions are: ZM66C06016 (sems-bolt, ×18 per assembly); YT02C01567D3 (plate, ×13 per assembly); YT02C01261D3 (plate, ×13 per assembly). The full list follows below.

Cab fittings changed across the Kobelco SK200-8 production run. Send the machine serial number with your enquiry and we confirm the parts that match your build before quoting.

Cab and body parts are searched by description far more often than by number: a customer knows the glass is cracked or the seal is leaking long before they know the part number. That is why this page is built around the exploded view first — find the item on the drawing, note the callout, and take the matching part number from the table.
