Kobelco SK200-8 Window Assembly,Roof — Exploded View & Part Numbers

Kobelco SK200-8 · Window Assembly,Roof · 24 part numbers

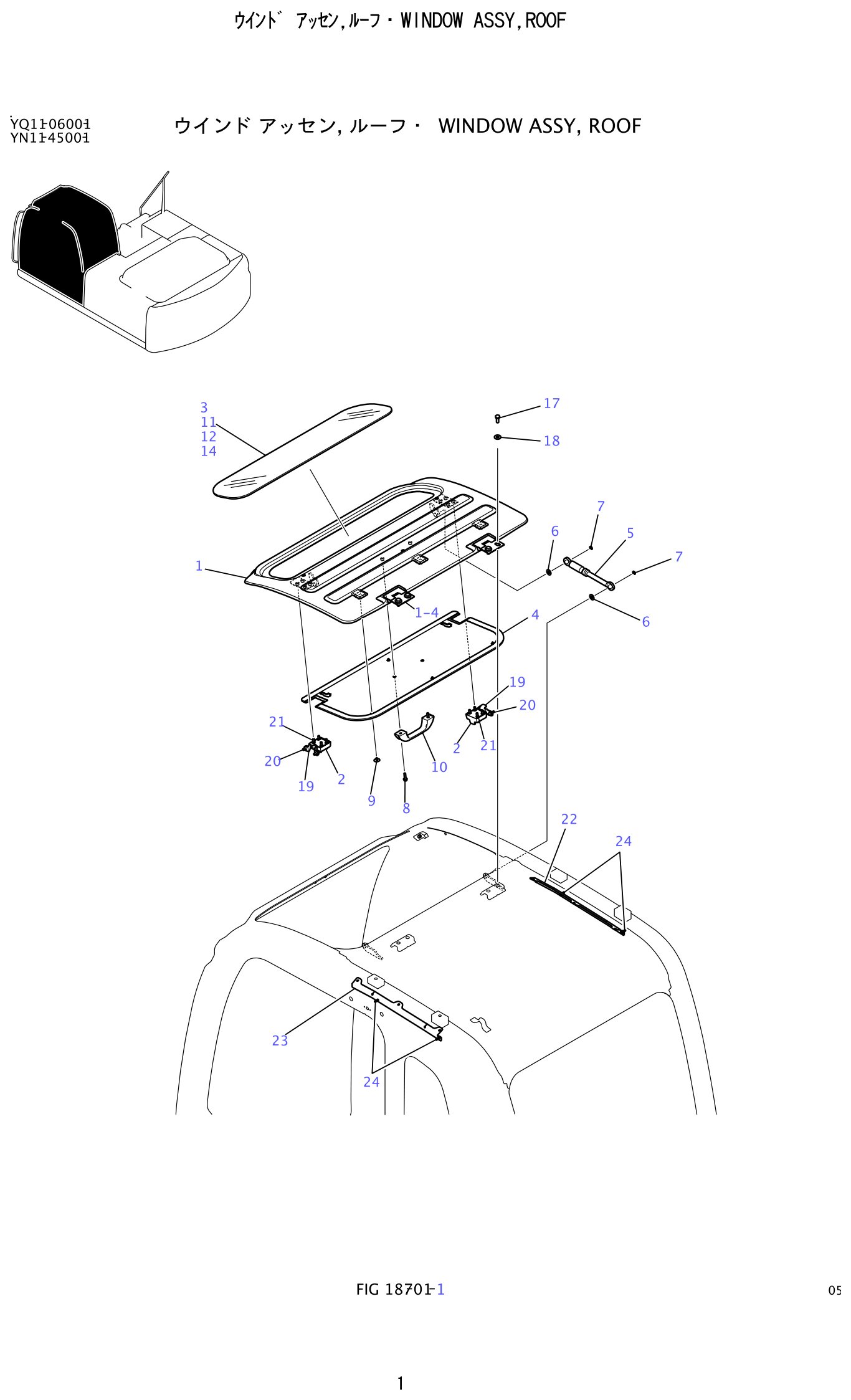

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Window Assembly,Roof

Below is the complete Kobelco SK200-8 Window Assembly,Roof — 24 part numbers with the quantity fitted per assembly. Where the drawing shows a callout, the Ref. column in the table carries the same number. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 24 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 24 numbers fall into 10 Kobelco number series — YN02C, YT02C, ZR36X among the largest. Expect repeated items such as sems, bolt, window and 8 hardware positions when you work through it.

If you are quoting from this group, start with: ZM66C06020 (sems-bolt, ×8 per assembly); YT02C01390P1 (washer, ×4 per assembly); ZR36X00600 (e-ring, ×4 per assembly). The full list follows below.
