Kobelco SK200-8 Cab Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Cab Installation · 14 part numbers

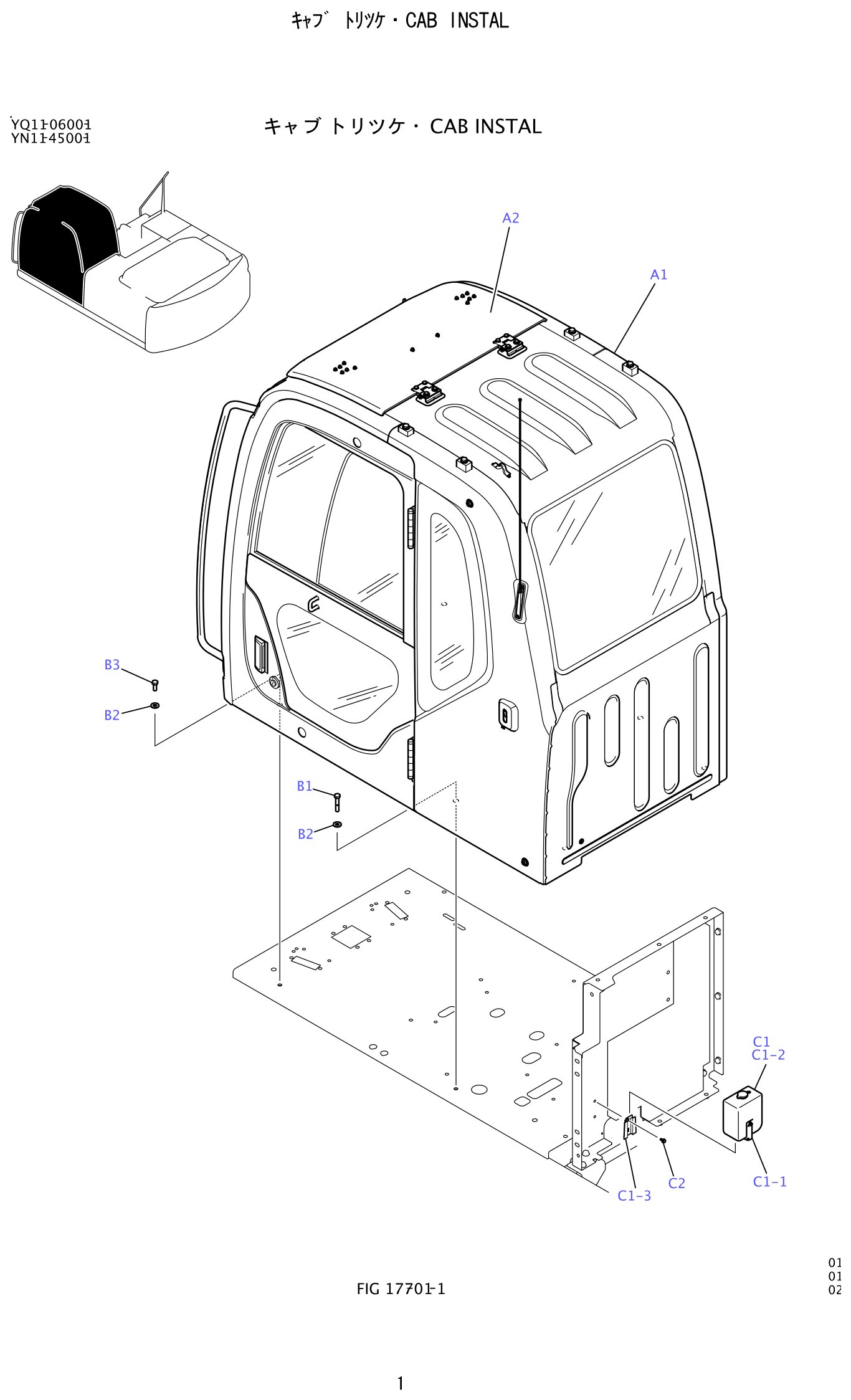

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Cab Installation

This page lists all 14 part numbers in the Kobelco SK200-8 Cab Installation. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 14 part numbers spread across 6 number series (YN02C, YT54C, ZS18C being the biggest) Expect repeated items such as cab, washer, tank and 6 hardware positions when you work through it.

Three numbers worth noting first: 2418T10357 (washer, ×6 per assembly); ZS18C12065 (capscrew, ×5 per assembly); ZM73C06016 (sems-bolt, ×2 per assembly). The full list follows below.

Glass and panel orders are quoted with packing described on the quotation and freight shown separately, so the total landed cost is visible before the order is confirmed.

Cab items are bulky or fragile, so they are packed individually with edge protection, and freight is quoted separately so the landed cost is clear before you commit. Glass travels crated; panels and trim travel boxed.
