Kobelco SK200-8 Window Assembly,Roof — Exploded View & Part Numbers

Kobelco SK200-8 · Window Assembly,Roof · 32 part numbers

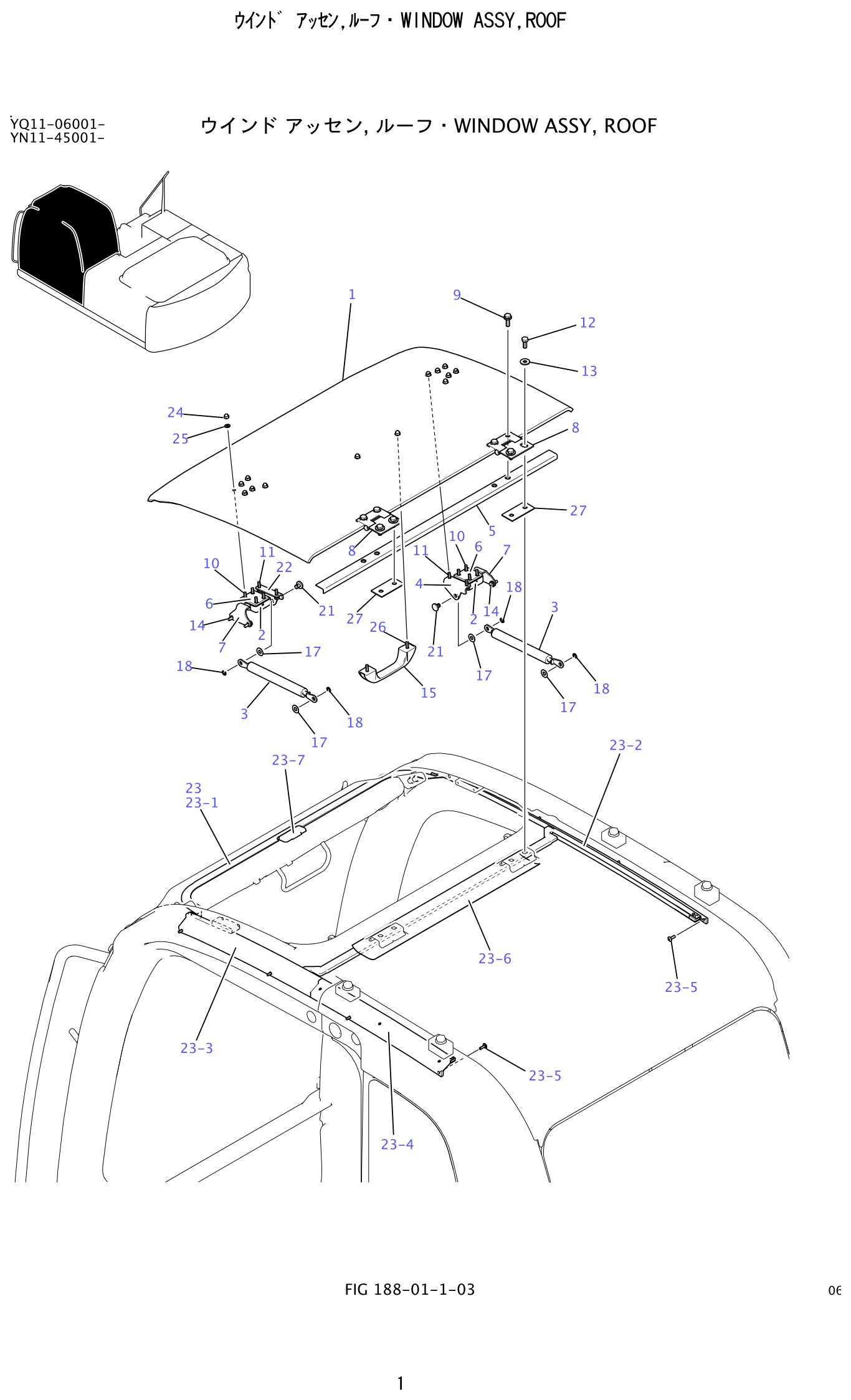

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Window Assembly,Roof

32 separately orderable part numbers make up the Window Assembly,Roof on the Kobelco SK200-8. Where the drawing shows a callout, the Ref. column in the table carries the same number. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 32 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 32 part numbers spread across 10 number series (YN02C, YN55C, YT02C being the biggest) In practice that means repeated items such as plate, sems, bolt and 11 hardware positions.

Where to start in this table: YN02C03379P1 (nut, ×14 per assembly); ZW16P06000 (washer, ×14 per assembly); ZM66C06025 (sems-bolt, ×8 per assembly). The full list follows below.
