Kobelco SK200-8 Cover Assembly,Under — Exploded View & Part Numbers

Kobelco SK200-8 · Cover Assembly,Under · 20 part numbers

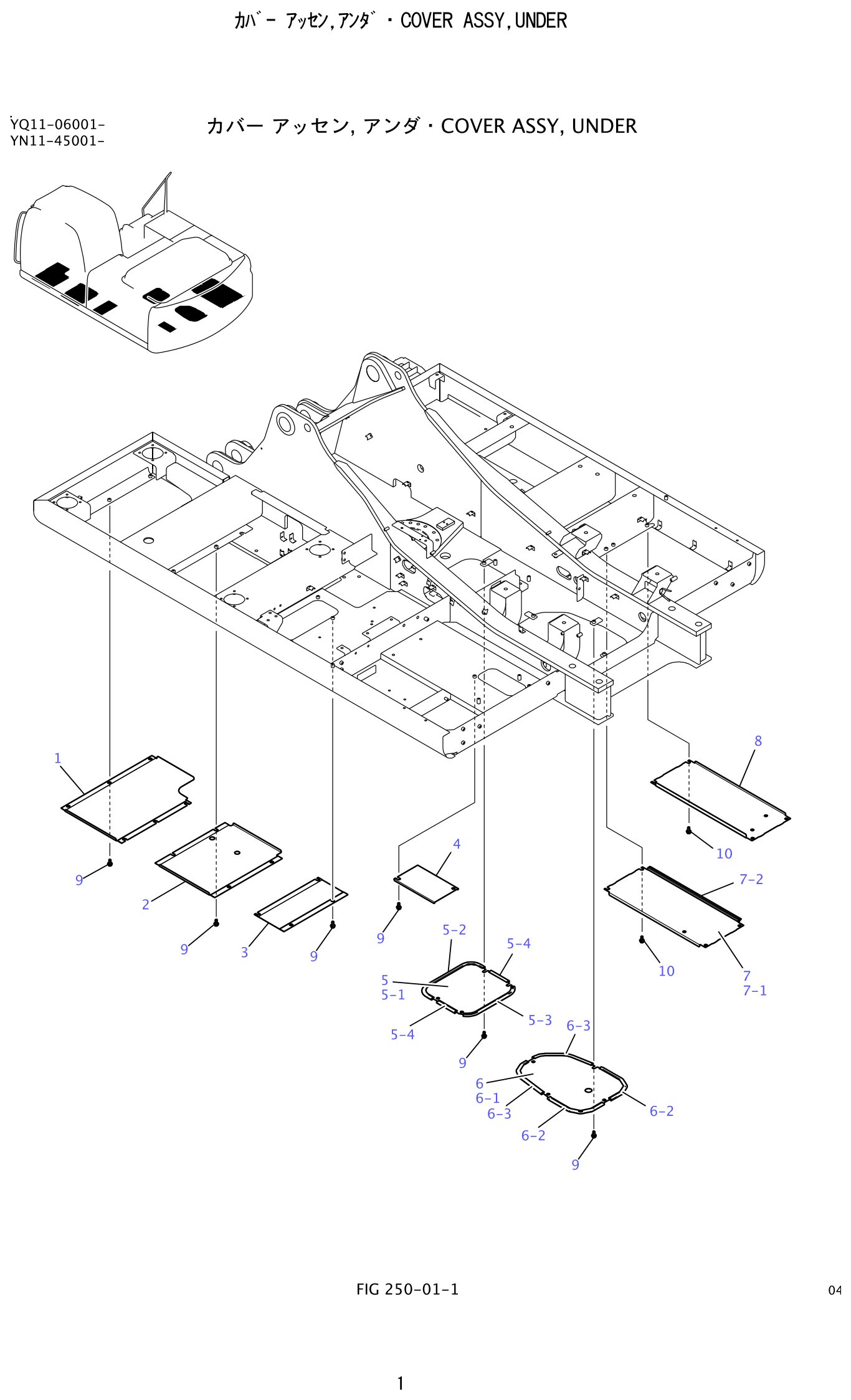

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Cover Assembly,Under

This page lists all 20 part numbers in the Kobelco SK200-8 Cover Assembly,Under. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 20 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 20 part numbers spread across 4 number series (YN24C, 2427P, PM21C being the biggest) The list is weighted toward repeated items such as cover, strip, weather and 2 hardware positions.

Three numbers worth noting first: ZM73C12030 (sems-bolt, ×24 per assembly); ZM73C12025 (sems-bolt, ×8 per assembly); PM21C01152D5 (strip,weather, ×2 per assembly). The full list follows below.

Cab and body parts are searched by description far more often than by number: a customer knows the glass is cracked or the seal is leaking long before they know the part number. That is why this page is built around the exploded view first — find the item on the drawing, note the callout, and take the matching part number from the table.

Cab comfort complaints — wind noise, water ingress, a door that no longer closes positively — trace to small items in this group more often than to the shell itself. Seals, latches and hinge hardware are worth checking before anything structural is ordered.
