Kobelco SK200-8 Door Assembly,Cab — Exploded View & Part Numbers

Kobelco SK200-8 · Door Assembly,Cab · 71 part numbers

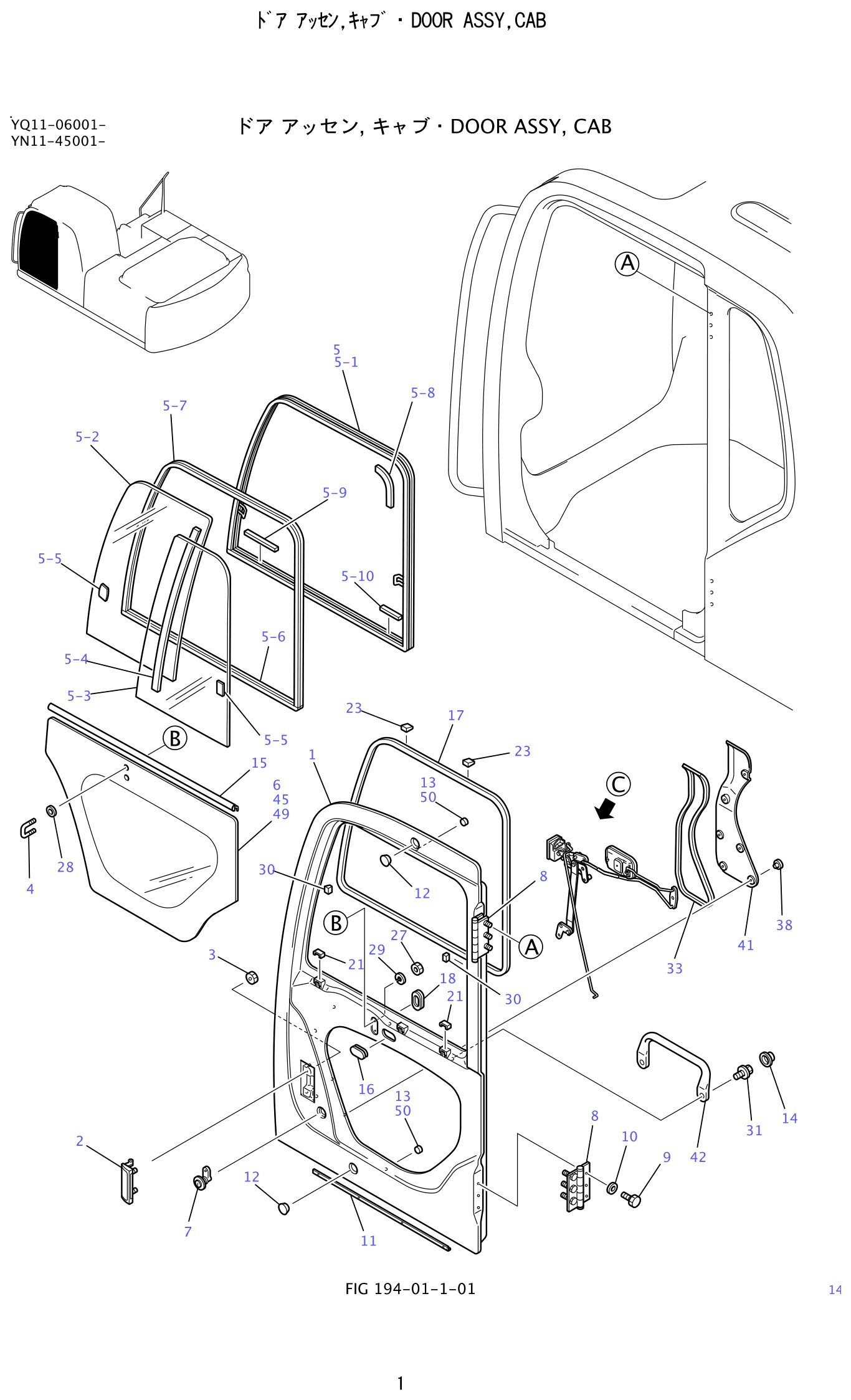

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Door Assembly,Cab

The Door Assembly,Cab group on the Kobelco SK200-8 contains 71 separately orderable part numbers. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 71 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 71 numbers fall into 15 Kobelco number series — YN51C, YN02C, YT02C among the largest. In practice that means repeated items such as rubber, washer, seal and 14 hardware positions.

The high-quantity positions are: ZS13C10025 (capscrew, ×6 per assembly); ZW11X10000 (washer, ×6 per assembly); YT02C01296P1 (rivet, ×6 per assembly). The full list follows below.

Cab comfort complaints — wind noise, water ingress, a door that no longer closes positively — trace to small items in this group more often than to the shell itself. Seals, latches and hinge hardware are worth checking before anything structural is ordered.

The group runs from structural items that exist as assemblies down to individual seals, latches, clips and trim panels. Because both levels carry their own part numbers, you can scale the order from a single weather strip to a complete assembly without changing how you order.
