Kobelco SK200-8 Guard Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Guard Installation · 23 part numbers

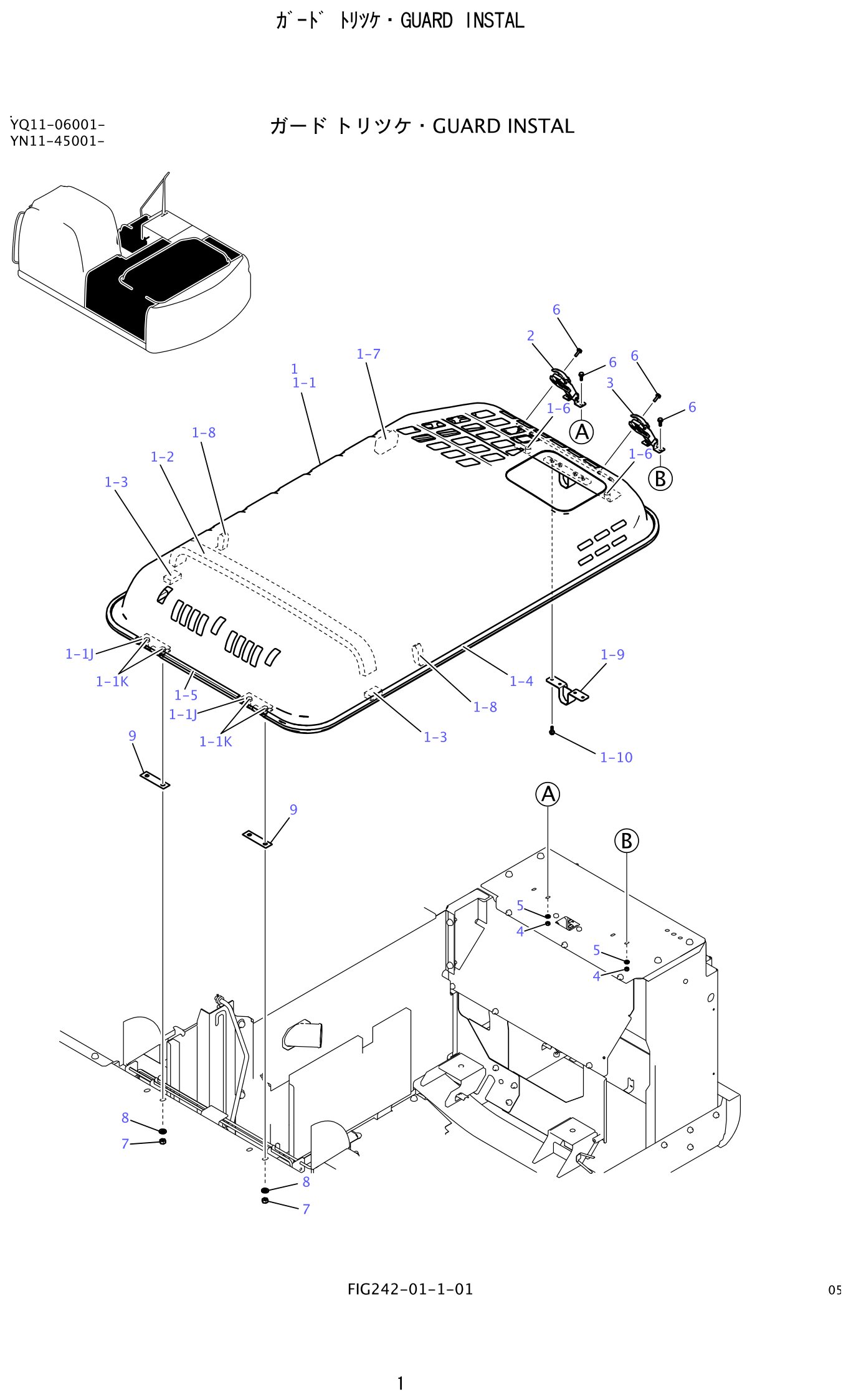

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Guard Installation

23 separately orderable part numbers make up the Guard Installation on the Kobelco SK200-8. Take the callout number from the drawing and match it in the Ref. column below. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 23 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 23 part numbers spread across 12 number series (YN22C, LC21C, YN21C being the biggest) The list is weighted toward repeated items such as catch, insulation, bonnet and 6 hardware positions.

The high-quantity positions are: ZS12C12030 (capscrew, ×4 per assembly); ZM73C08020 (sems-bolt, ×4 per assembly); ZN18C08007 (nut, ×4 per assembly). The full list follows below.
