Kobelco SK200-8 Guard Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Guard Installation · 18 part numbers

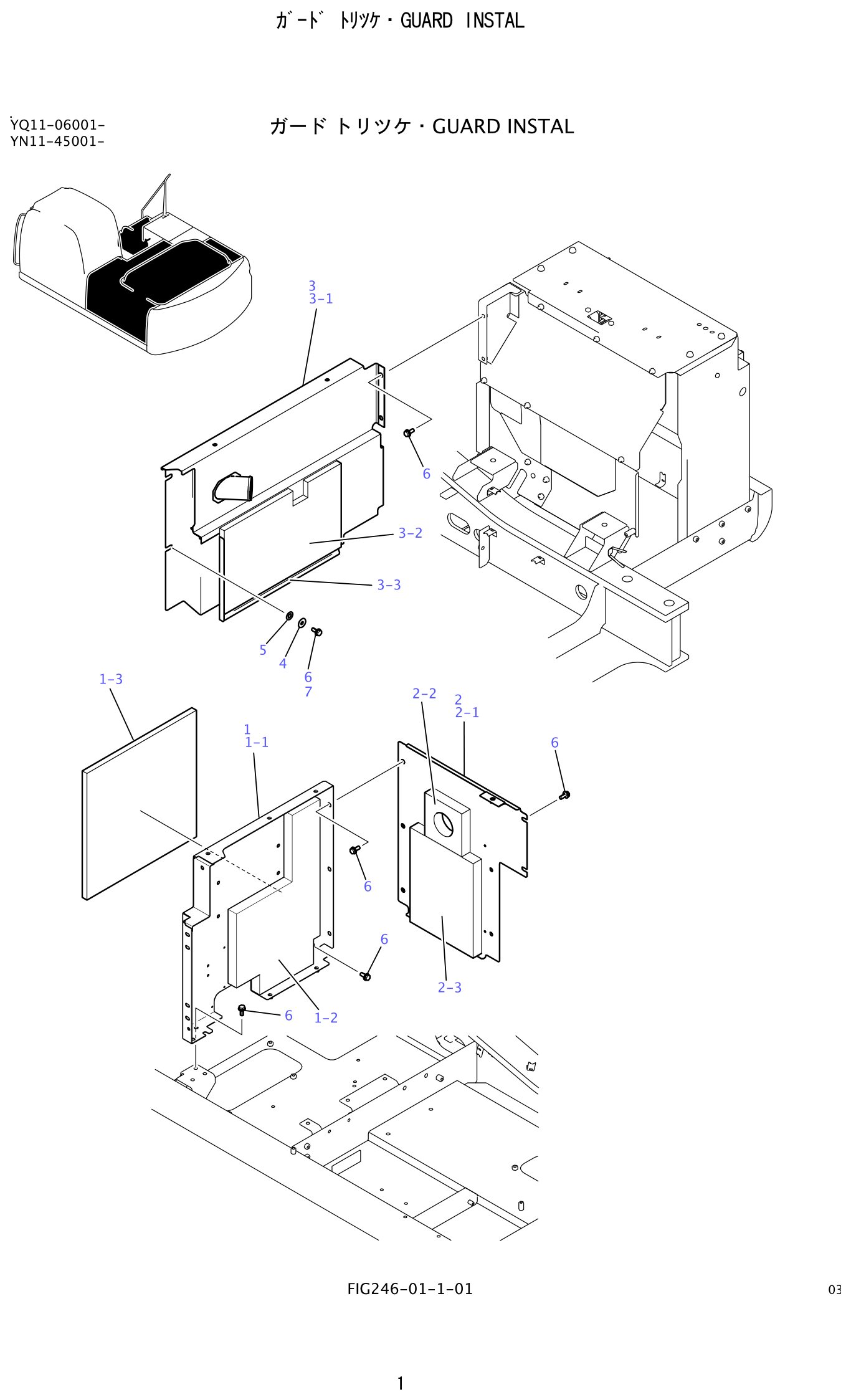

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Guard Installation

The Guard Installation group on the Kobelco SK200-8 contains 18 separately orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 18 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 18 numbers fall into 2 Kobelco number series — YN21C, ZM73C among the largest. The list is weighted toward repeated items such as guard, insulation, washer and 4 hardware positions.

Where to start in this table: ZM73C12025 (sems-bolt, ×14 per assembly); YN21C02138P1 (washer, ×2 per assembly); YN21C02147P1 (washer, ×2 per assembly). The full list follows below.

Cab items are bulky or fragile, so they are packed individually with edge protection, and freight is quoted separately so the landed cost is clear before you commit. Glass travels crated; panels and trim travel boxed.

Interior items such as panels, trim and floor plates carry their own numbers in this group, which keeps a cab refit a list of orderable parts rather than an improvised repair.
