Kobelco SK200-8 Hyd Lines,Arm 2.94M (9Ft 8In) — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Arm 2.94M (9Ft 8In) · 34 part numbers

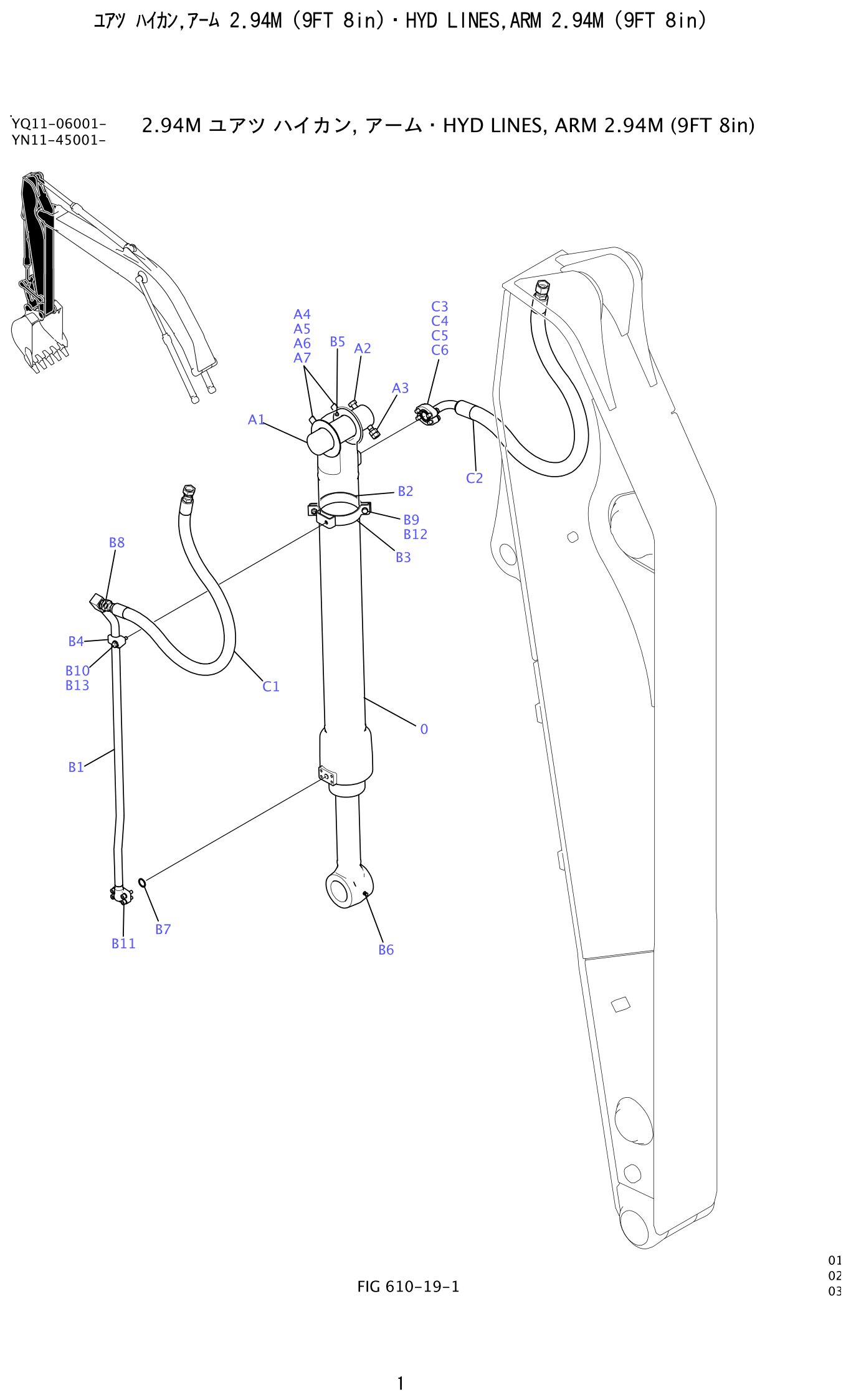

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Arm 2.94M (9Ft 8In)

34 separately orderable part numbers make up the Hyd Lines,Arm 2.94M (9Ft 8In) on the Kobelco SK200-8. Take the callout number from the drawing and match it in the Ref. column below. Every entry is a genuine Kobelco part number, confirmed against the serial range before we quote.

• 34 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 34 part numbers spread across 17 number series (YN12B, YN43H, ZD12P being the biggest) The list is weighted toward repeated items such as cylinder, capscrew, instal and 9 hardware positions.

The high-quantity positions are: ZS28C10030 (capscrew, ×4 per assembly); ZS28C12040 (capscrew, ×4 per assembly); ZW26K12000 (lock washer, ×4 per assembly). The full list follows below.

Hydraulic components are the heart of the Kobelco SK200-8: main pump delivery, swing and travel drive, control valve sections and the lines and seals that connect them. When a circuit loses power, drifts under load, or runs noisy when warm, the fault is usually traced to one of the components in this group rather than to the machine as a whole.

Swing, travel and implement circuits share the same pump flow on the Kobelco SK200-8, which is why a fault in one function can point back to a component listed in this group. A pressure test narrows the circuit down; the drawing then narrows it to a part number.
