Kobelco SK200-8 Valve Installation — Exploded View & Part Numbers

Kobelco SK200-8 · Valve Installation · 14 part numbers

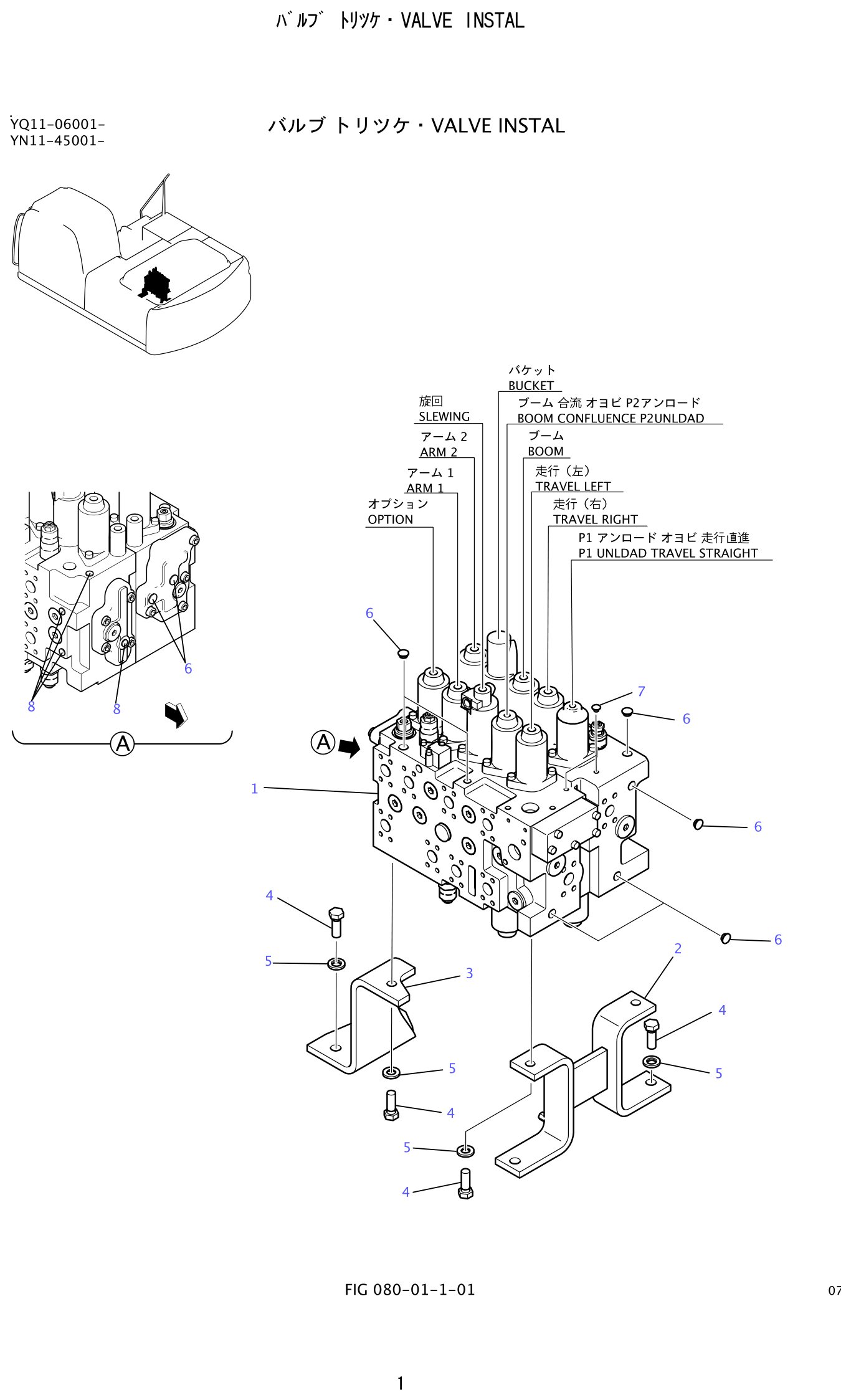

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Valve Installation

This page lists all 14 part numbers in the Kobelco SK200-8 Valve Installation. The Ref. column mirrors the callout numbers on the illustration, so a part can be ordered straight from the drawing. The list comes straight from the Kobelco SK200-8 catalogue for this machine family.

• 14 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Read as a dataset, the 14 part numbers spread across 5 number series (YN64H, YN30V, PV02B being the biggest) The list is weighted toward repeated items such as cap, valve, control and 2 hardware positions.

If you are quoting from this group, start with: PV02B01073D7 (cap, ×8 per assembly); YN64H01392D1 (cap, ×8 per assembly); ZS18C16045 (capscrew, ×7 per assembly). The full list follows below.

For workshops planning a full hydraulic health check, the practical sequence is seals first, then wear items such as valve plates and bushings, and only then complete assemblies. The table below supports that sequence because every level of the breakdown is separately orderable.

Rebuild-at-component-level is the practical route for most Kobelco SK200-8 hydraulic assemblies. Wear shows up at predictable points — spool clearances, valve plates, bearing sets, seal packages — and those items are listed individually, so you can quote only what is worn instead of exchanging the complete unit.
