Kobelco SK200-8 Hyd Lines,Low — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Low · 26 part numbers

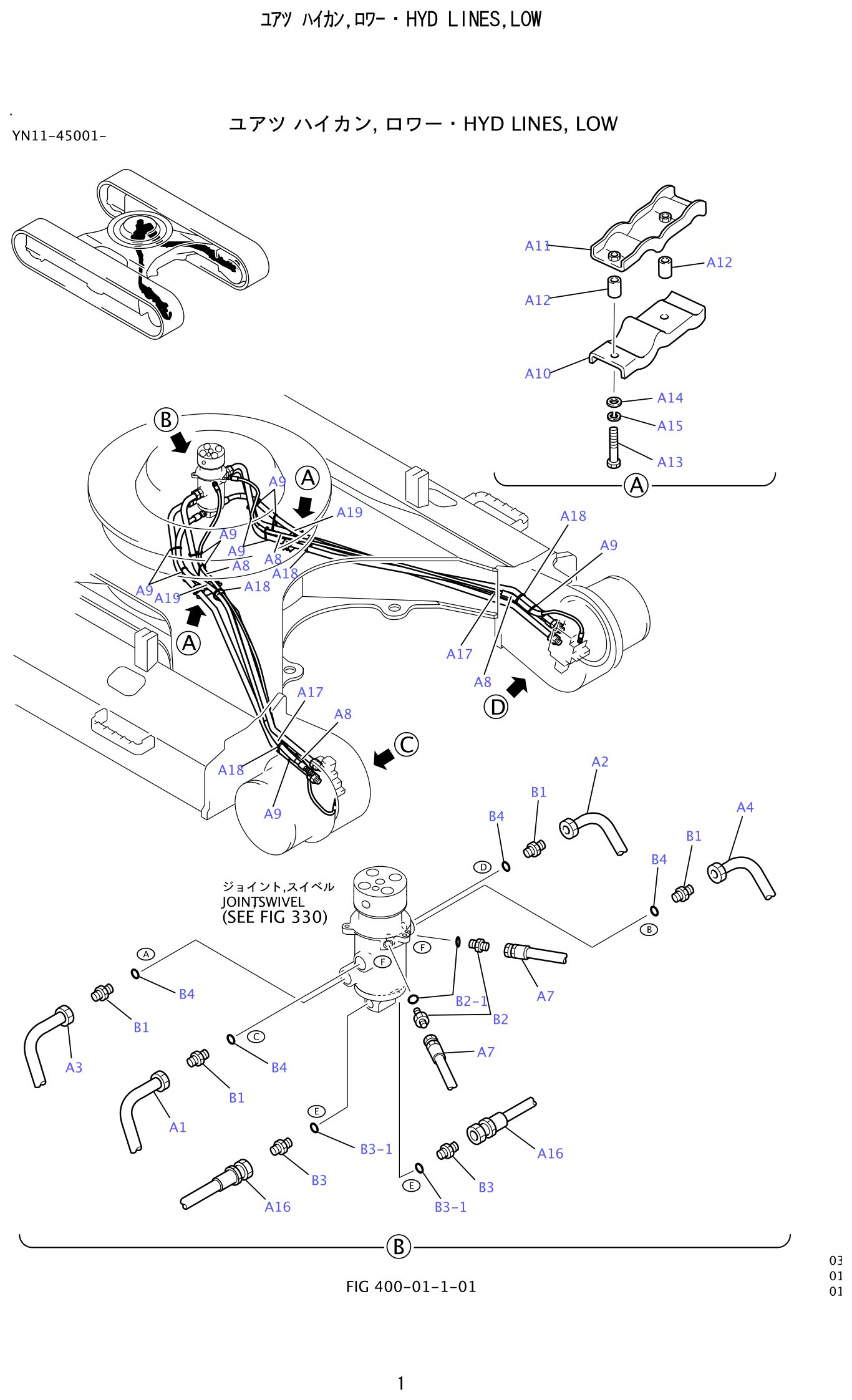

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Low

The Kobelco SK200-8 Hyd Lines,Low breaks down into 26 individually orderable part numbers. Callout numbers on the exploded view map one-to-one to the Ref. column in the table. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 26 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

The 26 entries group into 14 distinct number series, led by YN02H, ZD12P. In practice that means repeated items such as hose, tube, hyd and 5 hardware positions.

The high-quantity positions are: PY01P01043D5 (clip, ×10 per assembly); 2420Z1224D4 (hose,guard, ×4 per assembly); 2418T24324D2 (spacer, ×4 per assembly). The full list follows below.

Seal kits for this group are quoted from the same table — the O-ring and seal positions carry their own numbers, so a hydraulic repair never forces a purchase at assembly level.

Every hydraulic item we quote is declared by condition: genuine, ordered through original supply channels, or a quality OEM alternative. The declaration appears on the quotation itself, never buried in an invoice, so you know exactly what you are fitting before you commit.
