Kobelco SK200-8 Hyd Lines,Low (For Long Crawler) — Exploded View & Part Numbers

Kobelco SK200-8 · Hyd Lines,Low (For Long Crawler) · 31 part numbers

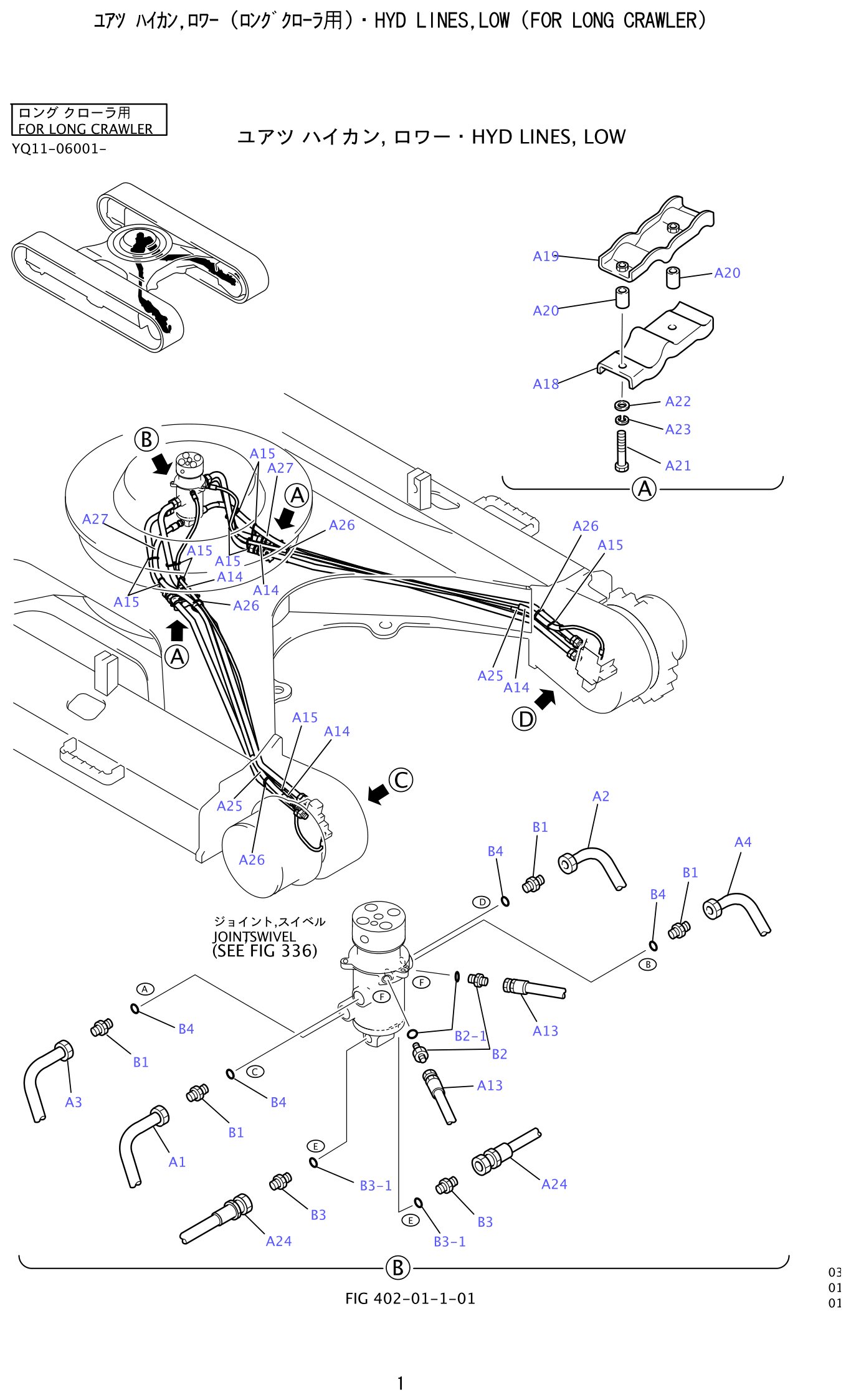

Illustration reproduced from the Kobelco SK200-8 parts catalogue for part identification only. Callout numbers on the drawing match the Ref. column in the table below. Kobelco is a trademark of its respective owner; Shenyue Machinery is an independent supplier of excavator parts.

Kobelco SK200-8

Hyd Lines,Low (For Long Crawler)

Below is the complete Kobelco SK200-8 Hyd Lines,Low (For Long Crawler) — 31 part numbers with the quantity fitted per assembly. Where the drawing shows a callout, the Ref. column in the table carries the same number. All numbers are taken from the machine's own parts catalogue — nothing here is generic.

• 31 part numbers in this group, all listed below
• Kobelco SK200-8 excavator parts — every number confirmed against your machine serial
• Callout numbers on the drawing match the Ref. column
• Genuine via original supply channels, or quality OEM alternative — declared on every quote
• 3,000+ part types on the shelf · 100,000+ part numbers available to order

Ask Price on WhatsApp Send Inquiry

Structurally, these 31 numbers fall into 15 Kobelco number series — YN02H, ZD12P, PY01P among the largest. In practice that means repeated items such as tube, hose, connector and 5 hardware positions.

If you are quoting from this group, start with: PY01P01043D5 (clip, ×10 per assembly); 2420Z1224D4 (hose,guard, ×4 per assembly); ZA23B28000 (connector, ×4 per assembly). The full list follows below.

Swing, travel and implement circuits share the same pump flow on the Kobelco SK200-8, which is why a fault in one function can point back to a component listed in this group. A pressure test narrows the circuit down; the drawing then narrows it to a part number.

Working from the exploded view is the fastest way to order. Find the component on the drawing, note its callout number, and take the matching reference from the table — that mapping removes the guesswork that comes with describing a part over the phone or in an email.
